| Categories | 16x2 LCD |
|---|---|
| Operating Temperature: | -20°C to 70°C |
| Backlight: | LED |
| Interface: | 16 Pin-6800 + 10 Pin-SPI |
| Delivery Time: | In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks; |
| Place of Origin: | China |
| Display Type: | STN LCD Display with 6800 and SPI Interface |
| Viewing Angle: | 6 O'clock |

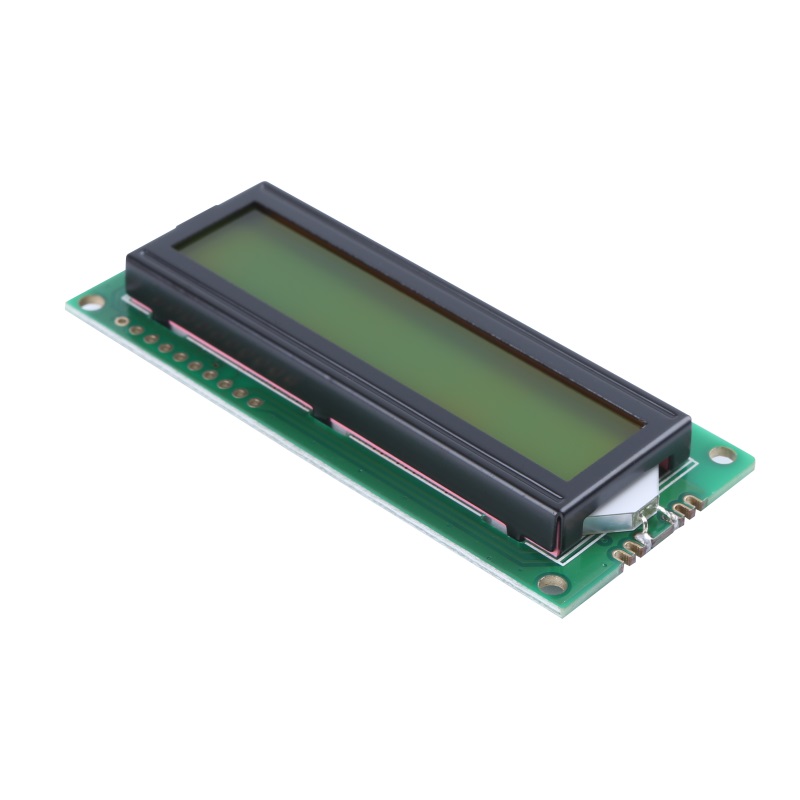

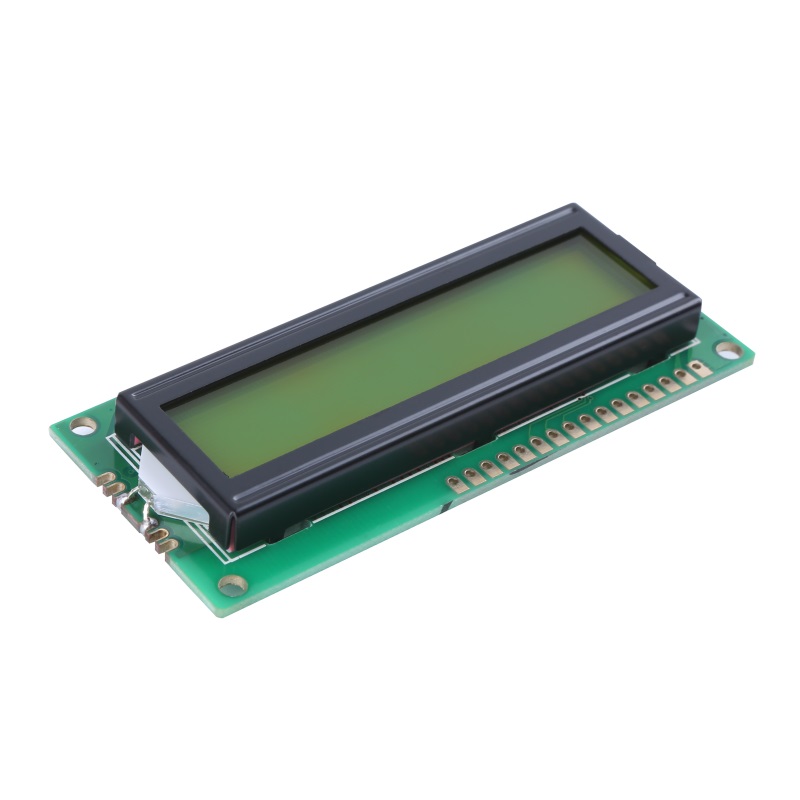

| Product Name: | 16x2 LCD Module 2x16 Character LCD COB 1602 Display |
| Brand Name: | Formike |
| Controller: | ST7070 |
| Payment Terms: | T/T,L/C,Credit card,Cash |
| Operating Voltage: | 3.3V / 5V |
| Model Number: | WC1602B6 |
| MOQ: | 1 piece |
| Display Mode: | STN |
| Display format: | 16character*2 line |
| Backlight Color: | Usually Y-G or Blue or Gray |
| Supply Ability: | 5000000000 pieces/year |
| Dimensions: | 81mm * 36mm * 11mm |
| Packaging Details: | Tray + Inner Box + Carton |
| Company Info. |
| Formike Electronic Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Product Specification | ||||||
|---|---|---|---|---|---|---|
| LCD Name | 16x2 LCD Module 2x16 Character LCD COB 1602 Display | |||||
| Display Format | 16character*2 line | |||||
| Module Size | 81.0mm×36.0mm×11.0mm | |||||
| View Area | 64.50mm×14.5mm | |||||
| Character Size | 2.90mm×5.15mm | |||||
| Character Pitch | 3.52mm×5.85mm | |||||
| IC | ST7070 or Eqv (Defualt English / Japan Font) | |||||
| Interface | 16 Pin 4-bit or 8-bit 6800 MPU interface, 10 Pin SPI interface, | |||||
| Driving Method | 1/16 Duty, 1/5 Bias | |||||
| Viewing Direction | 6 O’clock | |||||
| Operating Temperature | -20℃~+70℃ | |||||
| Storage Temperature | -30℃~+80℃ | |||||
| Different series type LCD mode for you to choose | ||||||
| No. | Part Number | LCD Type | Backlight Color | Font Color | Background Color | Interface |
| 1 | WC1602B6SBY6B-A1 | STN Y-G Positive | Yellow Green Color | Black Color | Yellow Green Color | 6800 |
| 2 | WC1602B6SBY6B-A2 | STN Y-G Positive | Yellow Green Color | Black Color | Yellow Green Color | SPI |
| 3 | WC1602B6SGW6B-A1 | STN Negative Blue | White Color | White Color | Blue Color | 6800 |
| 4 | WC1602B6SGW6B-A2 | STN Negative Blue | White Color | White Color | Blue Color | SPI |
| 5 | WC1602B6SKW6B-A1 | STN GREY Positive | White Color | Black Color | Grey Color | 6800 |
| 6 | WC1602B6SKW6B-A2 | STN GREY Positive | White Color | Black Color | Grey Color | SPI |
|
