| Categories | 16x2 LCD |
|---|---|
| Color: | Black display dot on yellow-green(or blue) background with white backlight |
| Interface: | 16Pin, 4-bit or 8-bit MPU |
| Dimensions: | 84.0mm * 44.0mm * 13.5mm |
| Type: | Transmissive Negative |
| Operating Voltage: | 3.3V |
| Place of Origin: | China |

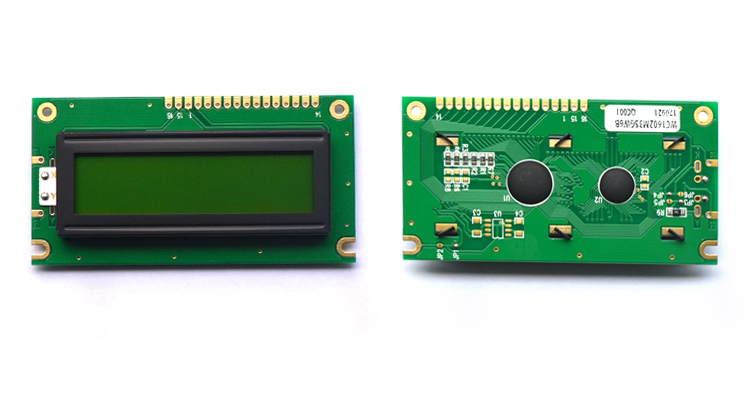

| Product Name: | 1602 LCD Display 16x2 LCD Custom Character Lcm1602 Screen with 16 Pin 4-BIT or 8-BIT MPU Interface |
| Backlight: | LED |
| Display Type: | Character LCD Screen |
| Model Number: | WC1602M3SGW6B |
| Controller: | ST7066U-0A |
| Display Mode: | STN |
| Payment Terms: | T/T,L/C,Credit card,Cash |
| Packaging Details: | Tray + Inner Box + Carton |
| Display format: | 16character*2 line |
| Brand Name: | Formike |
| MOQ: | 1 piece |
| Delivery Time: | In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks; |
| Operating Temperature: | -20°C to 70°C |
| Viewing Angle: | 6 O'clock |
| Supply Ability: | 5000000000 pieces/year |
| Company Info. |
| Formike Electronic Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

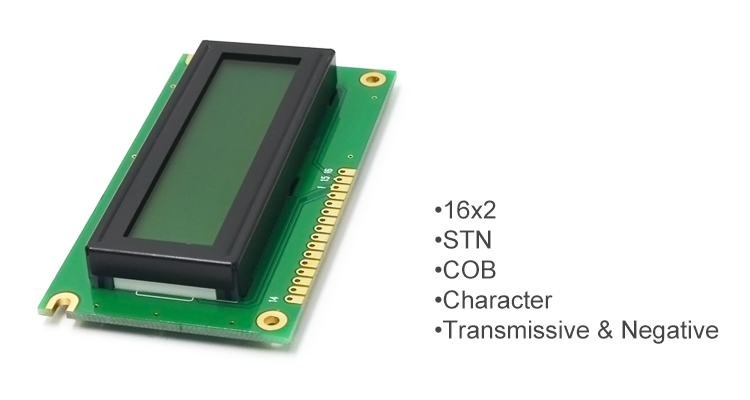

| LCD Name | 1602 LCD Display 16x2 LCD Custom Character Lcm1602 Screen with 16 Pin 4-BIT or 8-BIT MPU Interface | ||
Display Format | 16character*2 line | Display Mode | STN, Transmissive, Negative |
LCD Color | Display dot : White | Display Type | Character COB |
Outline Dimension | 84.0(W) x44.0(H) x 13.5(T) mm | Viewing Area | 61.0MIN(W) x15.8MIN(H)mm |
| Drive IC | ST7066U-0A | Pin No. | 16 Pin |
Viewing Direction | 6 O’clock | Interface Input Data | 4-bit or 8-bit MPU |
Backlight | White | Driving Method | 1/16 Duty, 1/5 Bias |
Operating Temp. | -20℃~+70℃ | Storage Temp. | -30℃~+80℃ |


![]() | ![]() |
![]() |
|
