STN COB 16x2 LCD Panel Module Character Alphanumeric Display 6800 MPU

Categories 16x2 LCD
Packaging Details: Tray + Inner Box + Carton
Dimensions: 122.0mm * 44.0mm * 13.5mm
Display Type: Character Display
Product Name: STN COB LCD Module 16x2 Character LCD Alphanumeric Display
Place of Origin: China
Operating Temperature: -20°C to 70°C
Brand Name: Formike
Model Number: WC1602B1
Display format: 16character*2 line
Operating Voltage: 3.3V / 5V
Interface: 16Pin, 4-bit or 8-bit 6800 MPU
Backlight: LED
MOQ: 1 piece
Payment Terms: T/T,L/C,Credit card,Cash
Controller: ST7066U or AIP31066
Display Mode: STN
Supply Ability: 5000000000 pieces/year
Backlight Color: Usually Y-G or Blue or Gray
Delivery Time: In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Viewing Angle: 6 O'clock
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

STN COB 16x2 LCD Panel Module Character Alphanumeric Display 6800 MPU

Product Details

STN COB LCD Module 16x2 Character LCD Alphanumeric Display

16x2 character lcd

Product Specification
LCD NameSTN COB LCD Module 16x2 Character LCD Alphanumeric Display
Display Format16character*2 line
Module Size122.0mm*44.0mm*13.5mm
View Area99.0mm*24.0mm
Character Size4.84mm*9.66mm
Character Pitch6.00mm*10.36mm
ICAIP31066 or Eqv (Defualt English / Japan Font)
Interface16 Pin, 4-bit or 8-bit 6800 MPU interface enabled
Driving Method1/16 Duty, 1/5 Bias
Viewing Direction6 O’clock
Operating Temperature-20℃~+60℃
Storage Temperature-30℃~+70℃
Different series type LCD mode for you to choose
No.Part NumberLCD TypeBacklight ColorFont ColorBackground ColorVoltage
1WC1602B1SBY6B-A1STN Y-G PositiveYellow Green ColorBlack ColorYellow Green Color5V
2WC1602B1SBY6B-A2STN Y-G PositiveYellow Green ColorBlack ColorYellow Green Color3.3V
3WC1602B1SGW6B-A1STN Negative BlueWhite ColorWhite ColorBlue Color5V
4WC1602B1SGW6B-A2STN Negative BlueWhite ColorWhite ColorBlue Color3.3V
5WC1602B1SKW6B-A1STN GREY PositiveWhite ColorBlack ColorGrey Color5V
6WC1602B1SKW6B-A2STN GREY PositiveWhite ColorBlack ColorGrey Color3.3V

lcd module 16x2

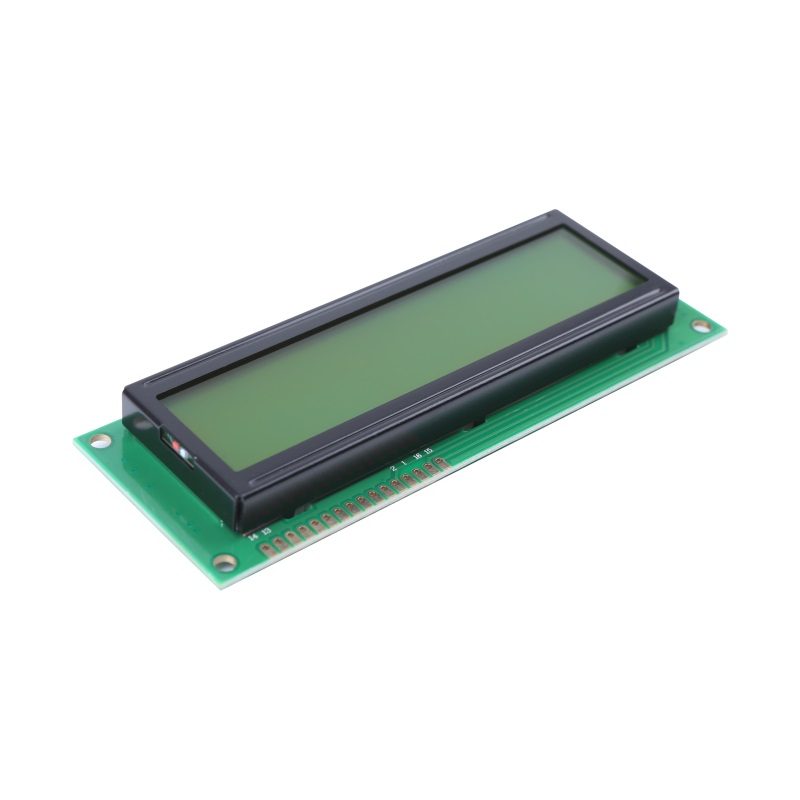

lcd alphanumeric display

alphanumeric lcd

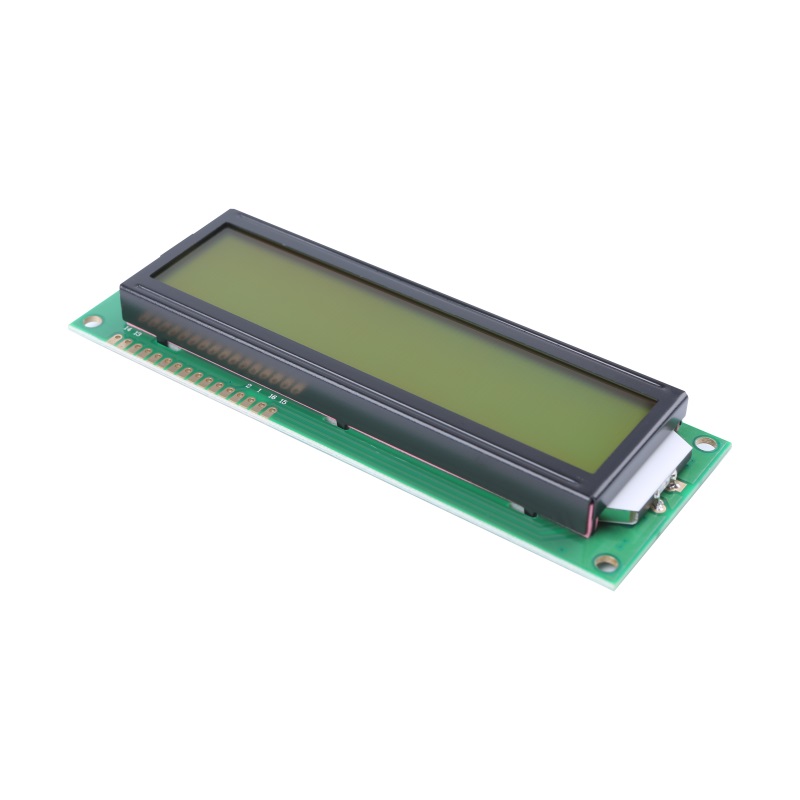

16x2 character lcd module
