LED Character LCD Display 16 Pin 16 * 2 LCD Panel Module Customized

Categories 16x2 LCD
Delivery Time: In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;
Backlight Color: Usually Y-G or Blue or Gray
Viewing Angle: 6 O'clock
Brand Name: Formike
Product Name: Character LCD LED Display 16x2 LCD Panel With 16 Pin 4-BIT Or 8-BIT 6800 MPU Interface
Display Type: Character LCD
Model Number: WC1602B0
Display format: 16character*2 line
Payment Terms: T/T,L/C,Credit card,Cash
Interface: 16 Pin, 4-bit or 8-bit 6800 MPU
Operating Temperature: -20°C to 70°C
Supply Ability: 5000000000 pieces/year
Dimensions: 80.0mm * 36.0mm * 12.0mm
Packaging Details: Tray + Inner Box + Carton
Operating Voltage: 3.3V / 5V
Backlight: LED
Place of Origin: China
Controller: ST7066U
MOQ: 1 piece
Display Mode: STN
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

LED Character LCD Display 16 Pin 16 * 2 LCD Panel Module Customized

Character LCD LED Display 16x2 LCD Panel With 16 Pin 4-BIT Or 8-BIT 6800 MPU Interface

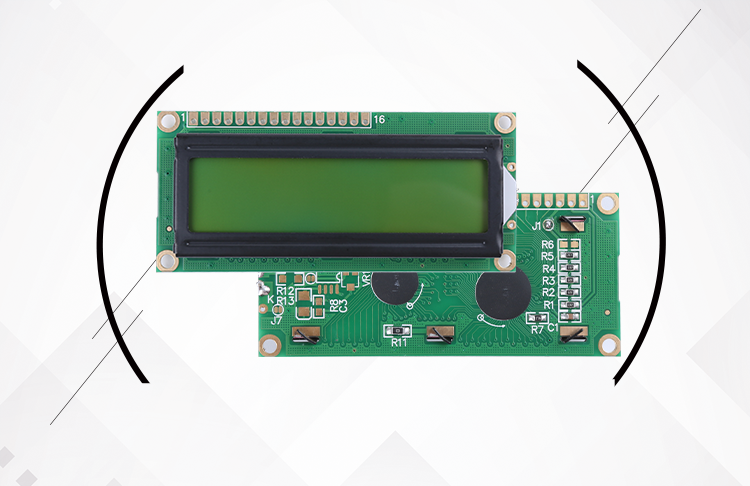

16x2 lcd panel

Product Specification
LCD NameCharacter LCD LED Display 16x2 LCD Panel With 16 Pin 4-BIT Or 8-BIT 6800 MPU Interface
Display Format16character*2 line
Module Size80.0mm×36.0mm×12.5mm
View Area64.5mm×16.0mm
Character Size2.96mm×5.53mm
Character Pitch3.55mm×5.98mm
ICAIP31066 or Eqv (Defualt English / Japan Font)
Interface16 Pin, 4-bit or 8-bit 6800 MPU interface enabled
Driving Method1/16 Duty, 1/5 Bias
Viewing Direction6 O’clock
Operating Temperature-20℃~+70℃
Storage Temperature-30℃~+80℃
Different series type LCD mode for you to choose
No.Part NumberLCD TypeBacklight ColorFont ColorBackground ColorVoltage
1WC1602B0SBY6B-A1STN Y-G PositiveYellow Green ColorBlack ColorYellow Green Color5V
2WC1602B0SBY6B-A2STN Y-G PositiveYellow Green ColorBlack ColorYellow Green Color3.3V
3WC1602B0SGW6B-A1STN Negative BlueWhite ColorWhite ColorBlue Color5V
4WC1602B0SGW6B-A2STN Negative BlueWhite ColorWhite ColorBlue Color3.3V
5WC1602B0SKW6B-A1STN GREY PositiveWhite ColorBlack ColorGrey Color5V
6WC1602B0SKW6B-A2STN GREY PositiveWhite ColorBlack ColorGrey Color3.3V

led display 16x2

character lcd
