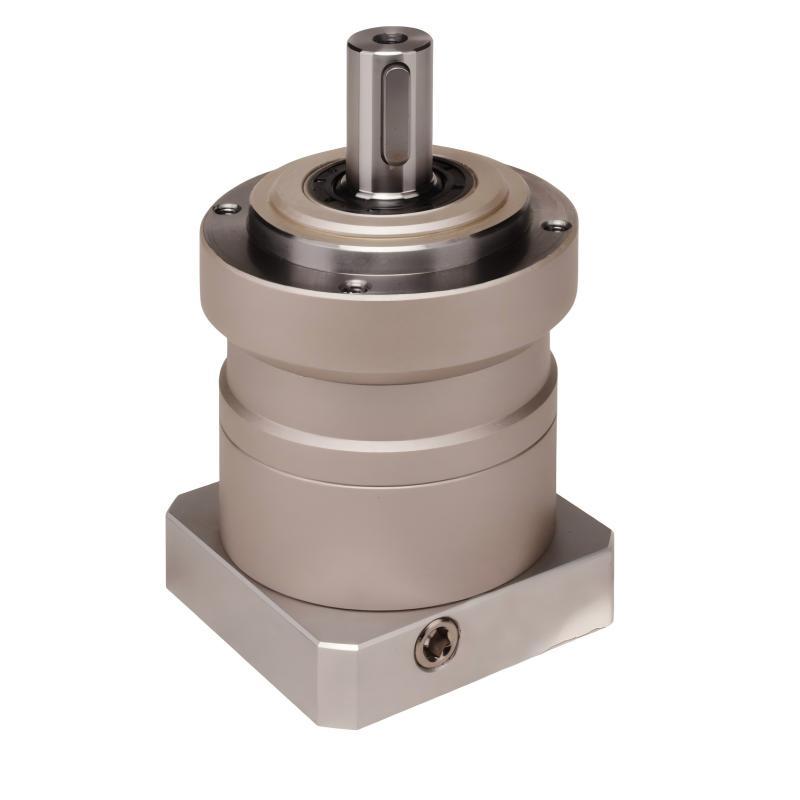

TL series Parallel Shaft Planetary Gearbox

Product Features – Parallel Shaft Planetary Gearbox

  • High Precision
    Backlash <3 arcmin (1 arcmin optional), making it the ideal choice for servo and stepper systems.

  • Quiet Operation
    Helical gear design significantly reduces noise and vibration.

  • High Efficiency
    Up to 95% for single-stage, >90% for two-stage configurations.

  • Universal Motor Compatibility
    Easily connectable to any motor via custom adapters.

  • No Grease Leakage
    High-viscosity anti-separation grease ensures zero leakage across a wide temperature range of -20°C to +200°C.

  • Maintenance-Free
    No grease replacement or maintenance required throughout the entire service life.

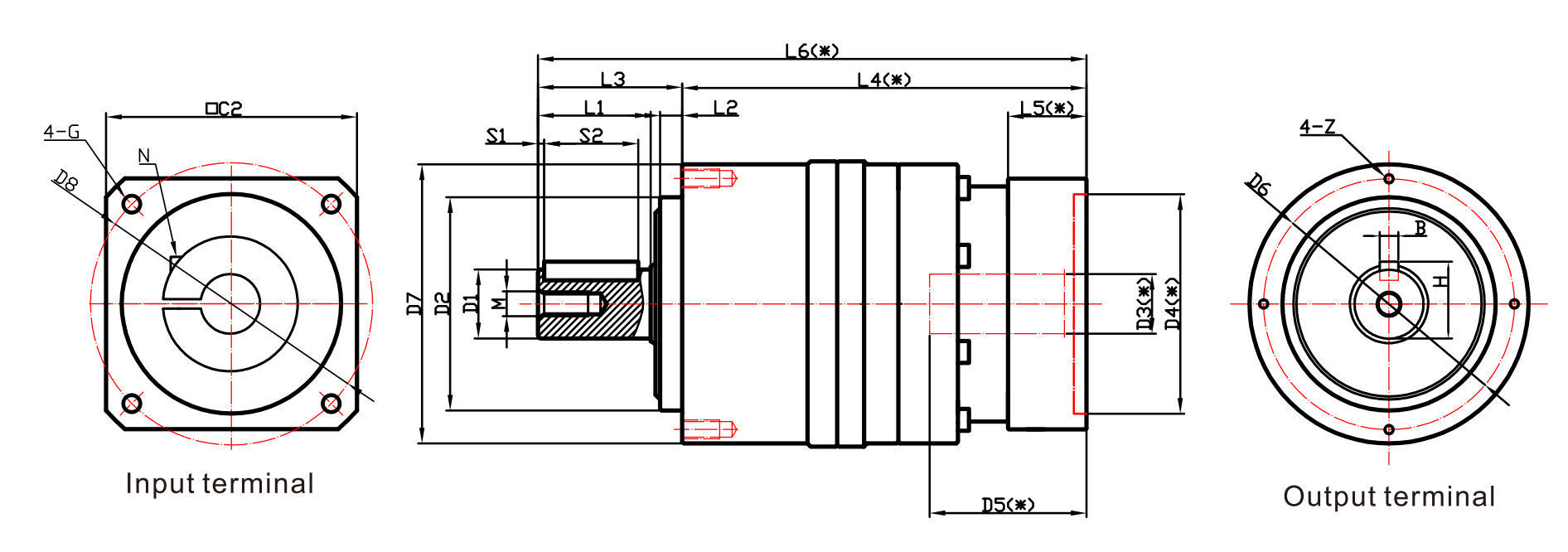

TL series Parallel Shaft Planetary Gearbox Dimensional Drawings


TL Series Performance Parameters

Performance table
ParameterStageRatioTL050TL070TL090TL120TL155TL205TL235
Norminal output torque ※1Nm13719521262525251050
41028781893787501575
51028781893787501575
61028781893787501575
71028781893787501575
81028781893787501575
9719521262525251050
10719521262525251050
215719521262525251050
161028781893787501575
201028781893787501575
251028781893787501575
281028781893787501575
30719521262525251050
351028781893787501575
401028781893787501575
45719521262525251050
501028781893787501575
601028781893787501575
701028781893787501575
801028781893787501575
90719521262525251050
100719521262525251050
Maximum output torque ※2Nm1 , 23~1002x Nominal output torque
Emergency stop torque ※3Nm1 , 23~1003x Nomial output torque
Rated input speed ※4rpm1 , 23~1004000300030003000200015001000
Maximum input speed ※5rpm1 , 23~1008000600060006000400030002000
High precision backlasharcmin13~10-≤1≤1≤1≤1--
Standard backlasharcmin1 , 23~100≤3≤3≤3≤3≤3≤3≤3
Common backlasharcmin1 , 23~100≤5≤5≤5≤5≤5≤5≤5
Permitted radial load ※6N1 , 23~10036064012002000470084008700
Permitted axial load ※7N1 , 23~100450530160025004100730011000
Maximum radial load ※8N1 , 23~10071012002400430091001500015000
Maximum axial load ※9N1 , 23~10064011002200390082001400014000
Weightkg13~100.61.43.78163653
215~1000.71.64.28.9173754
Noise indexdB-A1 , 23~100≤55≤60≤65≤68≤70≤75≤75
