TDR Series Right-Angle Planetary Gearbox

Categories Planetary Gearbox
Protection Class: IP65
Ratio: 3-100
Place of Origin: CHINA
Stage: 2-3
Max. Input Speed: 2000-8000rpm
Model Number: TDR Series Right-Angle Planetary Gearbox
Service Life: 2000hrs
Rated Input Speed: 1000-4000rpm
Backlash: ≤5arcmin
Brand Name: SENINTER
Certification: CE ROHS
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

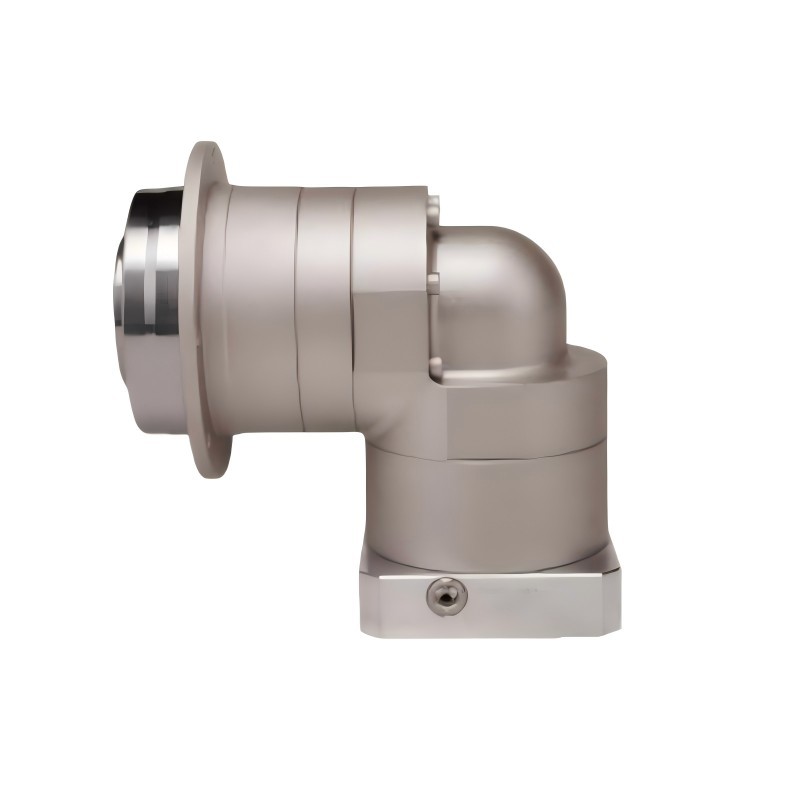

TDR Series Right-Angle Planetary Gearbox

TDR Series Right-Angle Planetary Gearbox


Right-Angle Planetary Gearbox – Spiral Bevel Gear Design

  • Space Saving
    Spiral bevel gear design enables right-angle installation, ideal for tight spaces

  • Flange Output
    Flange output design for easy mounting and high rigidity

  • High Precision
    Backlash as low as <3 arcmin, ideal for servo and stepper systems

  • High Torque Capacity
    Average output torque up to 378 Nm, delivering reliable performance for medium to high load applications

  • Quiet Operation
    Helical gears ensure low noise and vibration

  • High Efficiency

    95% for single-stage, >90% for two-stage configurations

  • Universal Motor Compatibility
    Easily attachable to any motor via custom adapters

  • Maintenance-Free
    No grease replacement or maintenance required throughout the entire service life

TDR Series Planetary Gearbox


TDR Series Performance Parameters

Performance table
ParameterStageRatioTDR047TDR064TDR090TDR110TDR140TDR200TDR255
Norminal output torque ※1Nm23-------
4817621101705751340
5823661302006001680
6825661602606001920
7825661603006001920
8825661603006001920
9517461202004001920
10517461202004001280
315-------
16825661303005551920
20825661603006001920
25825661603006001920
28825661603006001920
30-------
35825661603006001920
40825661603006001920
45517461202004001280
50825661603006001920
60825661603006001920
70825661603006001920
80825661603006001920
90517461202004001280
100517461202004001280
Maximum output torque ※2Nm2 , 34~1002x Nominal output torque
Emergency stop torque ※3Nm2 , 34~1003x Nomial output torque
Rated input speed ※4rpm2 , 34~1004000300030003000200015001000
Maximum input speed ※5rpm2 , 34~1008000600060006000400030002000
High precision backlasharcmin24~10-------
Standard backlasharcmin2 , 34~100≤5≤5≤5≤5≤5≤5≤5
Common backlasharcmin2 , 34~100≤8≤8≤8≤8≤8≤8≤8
Permitted radial load ※6N2 , 34~100500980540010000230002300040000
Permitted axial load ※7N2 , 34~100530920430074000160001600029000
Maximum radial load ※8N2 , 34~10015003300850019000400004000064000
Maximum axial load ※9N2 , 34~1007501700430014000300003000048000
Weightkg24~1011.95.19.517.450110
316~1001.11.64.3917.63799
Noise indexdB-A2 , 34~100≤55≤60≤65≤68≤70≤75≤75
