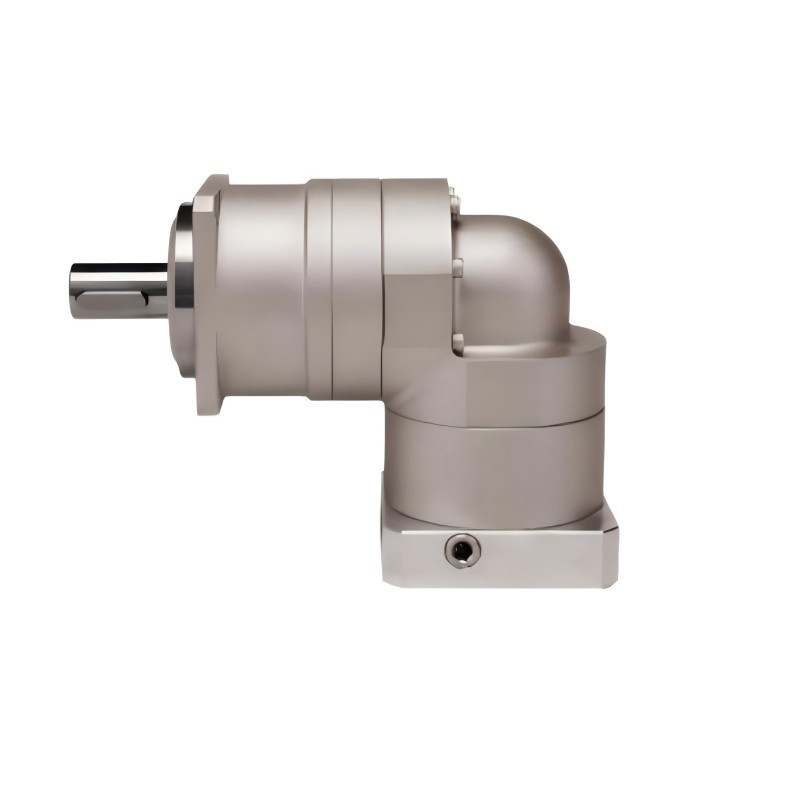

TBR series Right-Angle Planetary Gearbox

Categories Planetary Gearbox
Brand Name: SENINTER
Protection Class: IP65
Model Number: TBR Right-Angle Planetary Gearbox
Ratio: 3-100
Stage: 2-3
Max. Input Speed: 4000-8000RPM
Service Life: 20000hrs
Place of Origin: CHINA
Certification: CE ROHS
Backlash: ≤1arcmin
Rated Input Speed: 2000-5000RPM
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

TBR series Right-Angle Planetary Gearbox

Right-Angle Planetary Gearbox

Product Features

  • Space-Saving Right-Angle Design
    Spiral bevel gear enables compact right-angle installations, ideal for tight spaces.

  • High Precision
    Backlash as low as <3 arcmin, making it the best choice for servo and stepper systems.

  • Quiet Operation
    Helical gears significantly reduce noise and vibration.

  • High Efficiency
    Up to 95% for single-stage, >90% for two-stage designs.

  • Universal Motor Compatibility
    Easily attachable to any motor via custom adapters.

  • Maintenance-Free
    No grease replacement or maintenance required throughout the product's service life.

  • High Torque Capacity
    Average torque up to 300 Nm, delivering reliable performance for demanding applications.

TBR series dimensions(2-3 stage, ratio 3~100) Dimensional Drawings

TBR Series Performance Parameters

Performance table
ParameterStageRatioTBR042TBR060TBR090TBR115TBR140TBR180TBR220
Norminal output torque ※1Nm235134680130400575
481762110170500765
582366130200600960
6825661602606001150
7825661603006001200
8825661603006001200
951746120200400800
1051746120200400800
31551746120200400800
16825661303005001200
20825661603006001200
25825661603006001200
28825661603006001200
3051746120200400800
35825661603006001200
40825661603006001200
4551746120200600800
50825661603006001200
60825661603006001200
70825661603006001200
80825661603006001200
9051746120200400800
10051746120200400800
Maximum output torque ※2Nm2 , 33~1002x Nominal output torque
Emergency stop torque ※3Nm2 , 33~1003x Nomial output torque
Rated input speed ※4rpm2 , 33~1004000300030003000200015001000
Maximum input speed ※5rpm2 , 33~1008000600060006000400030002000
High precision backlasharcmin23~10-------
Standard backlasharcmin2 , 33~100≤5≤5≤5≤5≤5≤5≤5
Common backlasharcmin2 , 33~100≤8≤8≤8≤8≤8≤8≤8
Permitted radial load ※6N2 , 33~10036064012002000470084008700
Permitted axial load ※7N2 , 33~100450530160025004100730011000
Maximum radial load ※8N2 , 33~10071012002400430091001500015000
Maximum axial load ※9N2 , 33~10064011002200390082001400014000
Weightkg23~100.91.85.110.419.14966
315~100-1.64.410.119.63967
Noise indexdB-A2 , 33~100≤60≤65≤68≤70≤75≤75≤75
