Customizable 3680*4000*4000 Drum Type Rubber Rotary Curing Machine

Categories Other Rubber Machines
Place of Origin: Jiangsu, China
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Warranty of core components: 5 years
Core Components: PLC, Engine, Bearing, Motor, Gear
Brand Name: MIXER
Machine Type: curing press
Voltage: 220V/380V/415V/440V
Dimension(L*W*H): 3680*4000*4000
Weight: 25000
Warranty: 1 Year
Key Selling Points: Famous brand PLC
Showroom Location: None
Applicable Industries: Manufacturing Plant
Rubber Vulcanizing: Continuous Production
Power(W): 3KW
After-sales Service Provided: Field installation, commissioning and training
After Warranty Service: Video technical support
Certification: CE,ISO
Marketing Type: New Product 2020
Packaging Details: wooden case and plastic film packed in container
Port: Shanghai
Supply Ability: 5 Set/Sets per Month
Price: $60,000.00/sets >=1 sets
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Customizable 3680*4000*4000 Drum Type Rubber Rotary Curing Machine


Product Description

Rubberize fabric curing press/Rubber mat rotocure press/Continuous vulcanizing press for rubber sheet

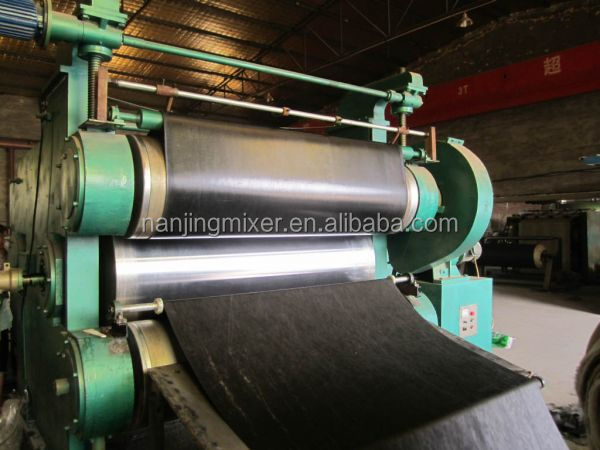

Rotary Curing Press (Drums type Curing Press)

Rotocure Press is used to produce rubber sheet, rubberized fabric,coated fabric,light duty rubber conveyor belt, rubber sheet &film

Lamination with continuous curing production.( Also according to customer’s technical requirement, we can make specially customized curing machine.)

The machine includes main machine,infrared heating device,Oil heating controller,

unwinding&winding up device,electric system and control cabinet.


Specification

Model

DLG-710*1450

DLG-1000*1450

DLG-1250*1600

DLG-1250*1750

DLG-1500*1750

Drum diameter (mm)

710

1000

1250

1250

1500

Working width (mm)

1450

1450

1600

1750

1750

Steel belt force N

38*104

38*104

38*104

38*104

38*104

Liner speed (mm)

0.04~1.12

0.3~2.0

0.3~1.5

0.3~1.5

0.3~1.5

Curing pressure (MPa)

0.5

0.5

0.6

0.6

0.6

Steam pressure used (MPa)

0.6

0.6

1

1

1

Main motor power (kw)

3

3

3

3

3

Welding power (kw)

0.37

0.37

0.37

0.37

0.37

Overall dimension (mm)

3170*2400*2600

3170*2400*2600

3680*4000*4000

3680*4150*4000

3680*5000*5000

Weight (t)

20

25

28

30

32


Finished Product

drum type rubber rotary curing machinedrum type rubber rotary curing machinedrum type rubber rotary curing machinedrum type rubber rotary curing machine
