| Categories | PDA POS TFT LCD |
|---|---|
| Brand Name: | Jingtai |
| Place of Origin: | ShenZhen / China |
| MOQ: | 5pcs |
| Payment Terms: | T/T,Western Union,L/C,MoneyGram,D/A,D/P |
| Delivery Time: | 1-5 weeks |
| Model Number: | JT-6.67IPSIncell |
| Certification: | ISO9001 / ISO14000 |
| Supply Ability: | 2000K pcs per month |
| Packaging Details: | Standard Exportation Package |
| Price: | 1-20 |
| Key Words: | 6.67 Inch IPS TFT Display Screen Incell |
| Resolution: | 720*1600 |
| Display Mode: | IPS Full Viewing Angle |
| Aspect Ratio: | 9:4 |
| Luminance: | 300cd/m²(Typ) 600cd/m²(Typ) |
| Interface Definition: | MIPI |
| Touch Screen: | CTP |
| CTP Interface: | 12C/SPI |
| Company Info. |
| Shenzhen Jingtai Liquid Crystal Display Technology Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
High-performance 6.67-inch IPS TFT display with incell technology and blind hole design, ideal for POS/PDA applications requiring excellent visibility and durability.
| Parameter | Value |
|---|---|
| Application | POS/PDA |
| Number of pixels | 720*1600 pixels |
| Active Area | 69.552*154.56mm |
| Module Outline | 71.75*159.56*1.49mm |
| Aspect Ratio | 9:4 |
| Display Mode | Normally Black |
| Viewing Angle (CR>10) | 85/85/85/85 (Typ) |
| Contrast Ratio | 1000 MIN, 1500 (Typ) |
| NTSC | 66% (Typ) |
| LCM Brightness | 300cd/m² (Typ) 600cd/m² (Typ) |
| Interface | MIPI |
| Operating Temperature | -20~+70℃ |
| Storage Temperature | -30~+80℃ |
6.67-Inch TFT LCD Display, 720×1600 TFT LCD, Industrial IPS Screen Panel with Water-drop Notch
6.67-Inch 720×1600 IPS TFT LCD with MIPI Interface
Product Introduction
The 720×1600 resolution represents a widely used 9:4 display dot matrix configuration. With its high pixel density, displays featuring this dot matrix provide distinct advantages across diverse application scenarios.
In fields such as POS systems, PDAs, smart home system, medical equipment, transportation cockpits (including aircraft and train cabins), as well as high-end consumer electronics, the high-resolution characteristics of the 720×1600 dot matrix deliver clear and detailed visual output. This meets the stringent image quality requirements of professional applications. Furthermore, as technology continues to advance and costs decrease, this dot matrix display technology is expected to be adopted and expanded into an even broader range of industries.

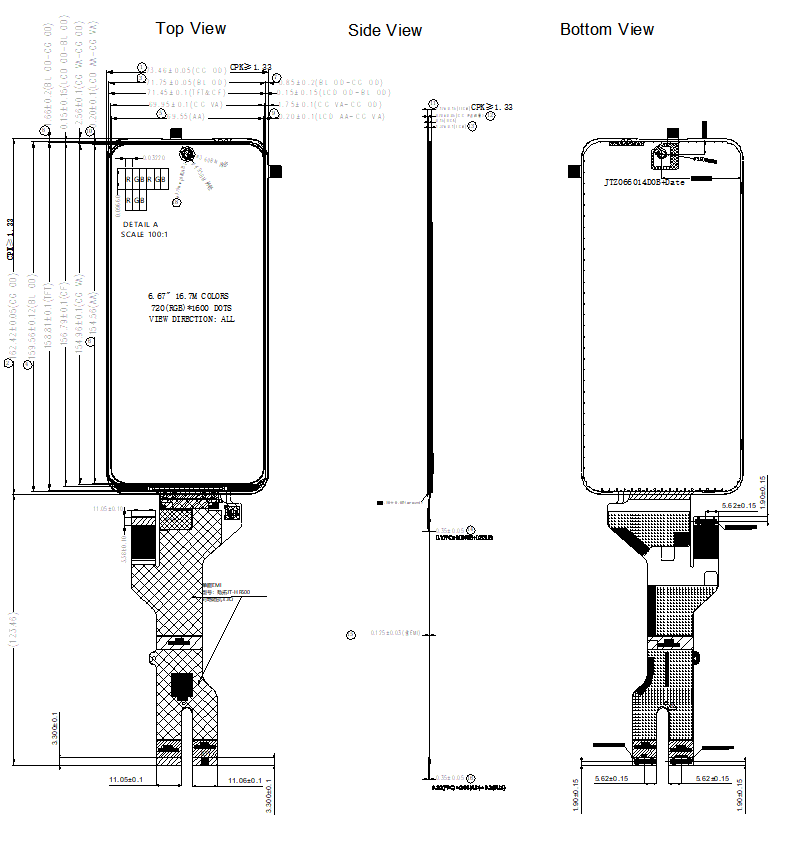

Blind Hole Design 6.67 inch 720*1600 TFT Touch Display Module Drawing
|
