5-30kW MPPT Off-Grid Wind Charge Controller 48-380Vac

Categories Off Grid Controller
Brand Name: Greef
Model Number: AHCC
Certification: CE
Place of Origin: China
MOQ: 1set
Price: Negotiable
Payment Terms: L/C,D/A,D/P,Western Union,
Supply Ability: 400set/sets
Delivery Time: 5-25Days
Packaging Details: Packaging
Rated voltage: 48Vac-380Vac
Input protection: Fuses; lightning protection circuits
MPPT voltage range: 90~520V customized
Unloading method: PWM
Rated unloading current: 40-100Adc
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

5-30kW MPPT Off-Grid Wind Charge Controller 48-380Vac

5-30kW Off-grid Wind Charge Controller
Key Specifications
AttributeValue
Rated voltage48Vac-380Vac
Input protectionFuses; lightning protection circuits
MPPT voltage range90~520V customized
Unloading methodPWM
Rated unloading current40-100Adc
Product Overview
Off-grid wind charge controller unit

The GREEF off-grid wind charge controller is a critical component in wind power systems, converting three-phase AC current from wind turbines into DC current to charge battery banks. Featuring advanced MPPT technology, this controller maximizes electricity production through innovative design elements including modular construction, electrical isolation, PWM unloading, and host computer control.

Advanced Features
  • Power tracking: 98% engagement with actual wind energy output curve for enhanced generation
  • Computer control: RS485 Modbus RTU interface for real-time voltage and current regulation
  • Safety protection: Comprehensive safeguards against over-voltage, over-current, reverse connection, and short circuits
  • IoT functionality: Wired network connectivity with APP remote monitoring and data export capabilities
  • Custom power absorption: Modular, hot-swappable circuits with electrical isolation for load protection
  • PWM unloading: Self-powered fan mode with soft unloading adjustment to reduce turbine burden
  • Touch screen interface: Real-time display of operational parameters with historical data logging and alarm functions
Technical Parameters
ModelAHCC-5KWAHCC-10KWAHCC-20KWAHCC-30KW
Rated power5KW10KW20KW30KW
DC Output Specifications
Energy storage compatibilityLead-acid batteries, lithium batteries, DC bus bars
Output voltage range42-240Vdc (adjustable)200-1000Vdc (adjustable)
Wind Turbine Input Specifications
MPPT voltage range90~520V customized220~530Vac
Maximum power10kW20kW40kW60KW
Environmental Specifications
Operating temperature-25℃ to 50℃
Storage temperature-40℃ to 75℃
Altitude rating3000m full load output
Product Images

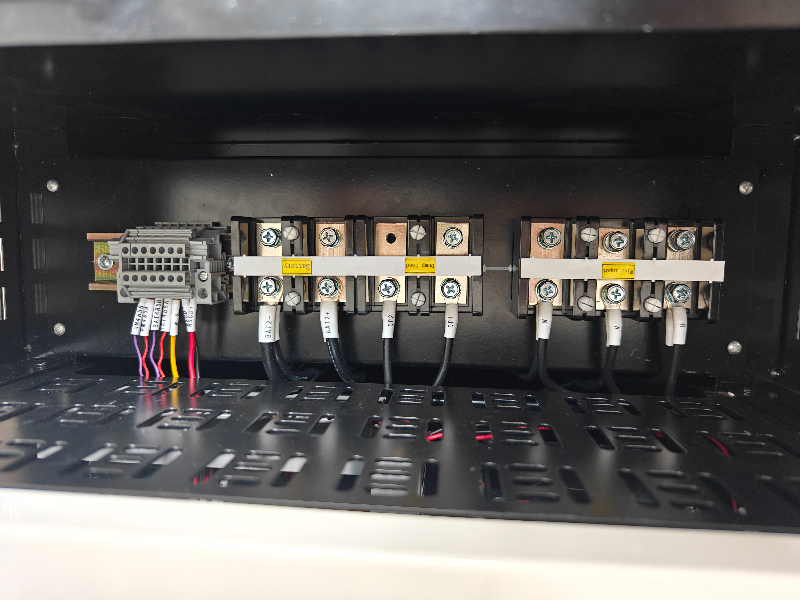

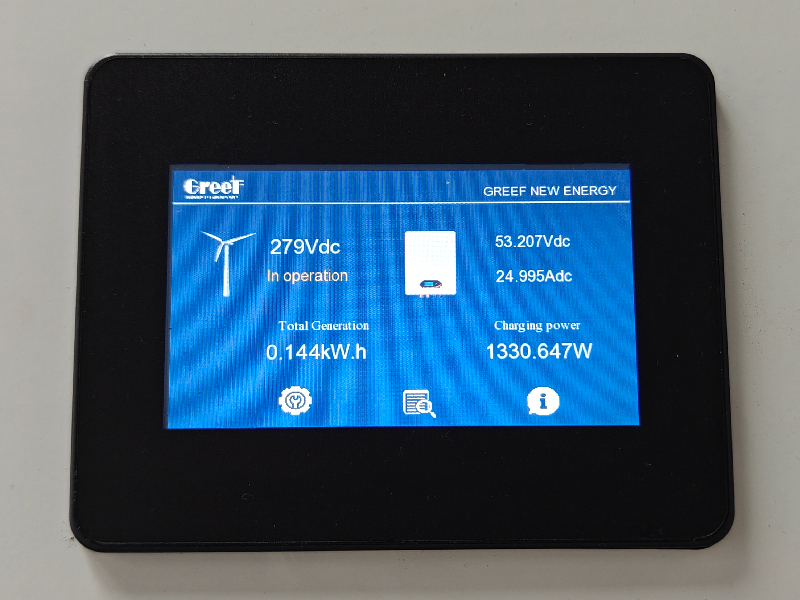

Wind charge controller front view Controller internal components Controller connection ports Controller installation example
System Solutions
Wind power system diagram

We provide customized system solutions tailored to your specific requirements. Contact us for more information about our products.

Controller in operation
Packaging
Product packaging
Why Choose Our Products
Quality manufacturing process Technical support team
