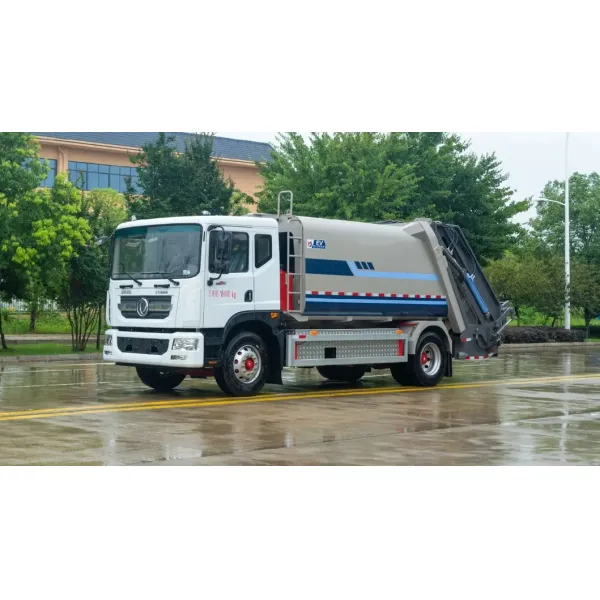

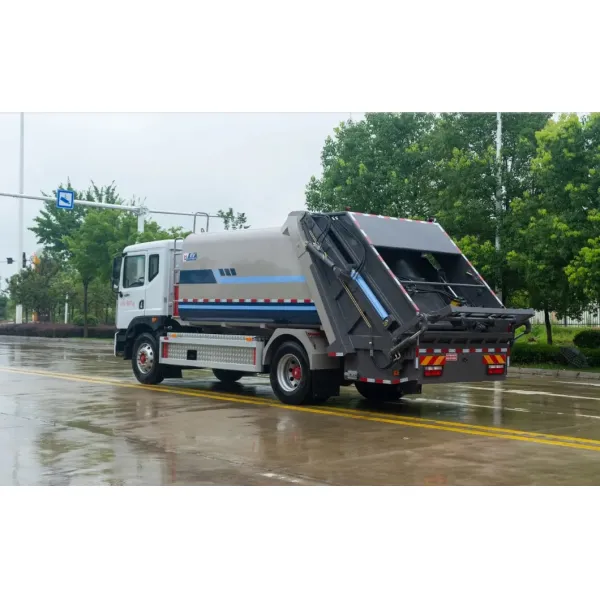

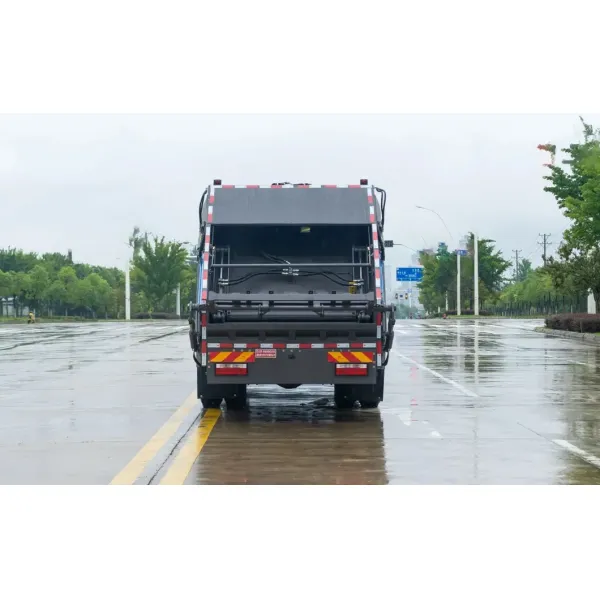

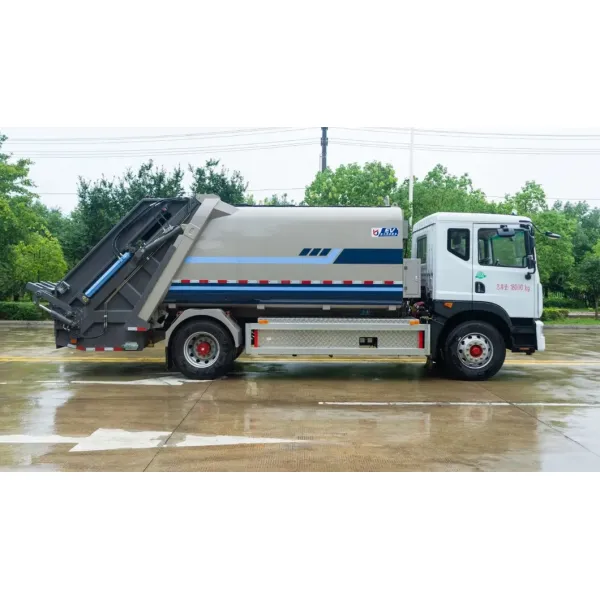

Eco-Friendly Electric Compressed Garbage Truck for Efficient Waste Collection2.

VictoryParameters of Malaysia 4-way blue-card compressed garbage tr
Model introduction:

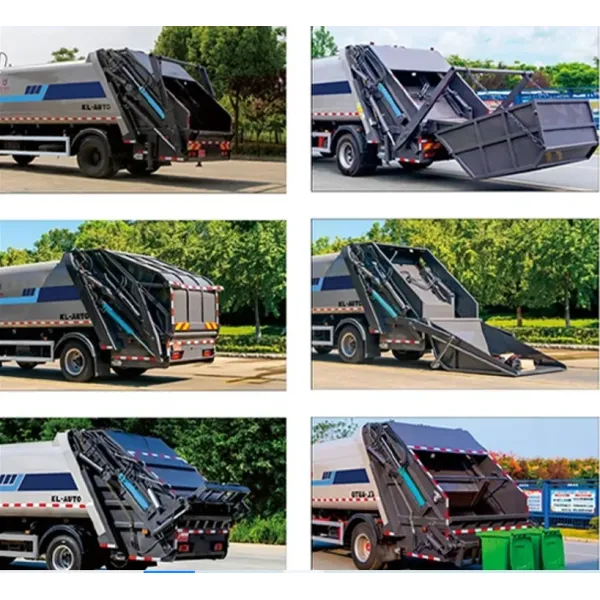

The compressed garbage truck is composed of a sealed garbage box, a hydraulic system and an operating system. The whole vehicle is fully sealed. The sewage in the process of self-compression, self-dumping and compression all enters the sewage compartment, which completely solves the problem of garbage transportation.Secondary pollutionThe problem avoids inconvenience to people. The key parts are imported parts, which have the advantages of high pressure, good sealing, convenient operation, safety and so on. Optional configuration.A variety of back-hanging bucketsFlipping mechanism or garbage bucket flipping mechanism.

Main technical parameters:Chassis configuration:

[Main Technical Parameters]
Product name	Pure electric compressed garbage truck	Product number	BB4384L2307.
Total mass (Kg)	18,000	The number of passengers in the cab (persons)	Three
Rated Load Mass (Kg)	5605	Dimensions (mm)	9340×2550×3260
Prepared mass (Kg)	.12200	Cargo compartment size (mm)	××
Approach angle/departure angle (°)	13/19	Front suspension/rear suspension (mm)	1260/2970, 1260/2760
Number of axes	2	Wheelbase (mm)	5000,5300
Shaft load (Kg)	6,500/11500.	Maximum speed (Km/h)	.90
Other	1. This model is equipped with a compression box, a filler device and a compression electronic control system and other installation devices, which are used for the dumping of trash cans and garbage collection and compression. Only 5000mm wheelbase modification is selected, and the guard wheel plate style is optional. Optional curved box and valve protective mounting cover, optional tail filler dustproof cover, optional tail bucket device, optional tail triangle bucket device, optional tail tribal bucket device, optional tail filler pneumatic sealing cover, optional swing arm device; 2. The shape length/wheelbase/front suspension/rear suspension correspondence is (mm): 9230/5000/1260/2970Model: CM4XL-4S/4M;5. This model can be optionally equipped with ETC on-board device; 6.Battery type/monomer production enterprise/energy storage device assembly manufacturer: lithium iron phosphate battery/Hubei Yiwei Power Co., Ltd./Hubei Yiwei Power Co., Ltd., lithium iron phosphate battery/Ningde Times New Energy Technology Co., Ltd./Ningde Times New Energy Technology Co., Ltd., motor rating/peak The power is: 120kW/180kW respectively. Optional curved box and hand-controlled valve mounting cover style, optional battery cover style. The optional rear lighting light only plays a lighting role when parking at night, and cannot be turned on during driving.
[Technical parameters of chassis]
Chassis model	EQ1181DACEV1.	Name of the chassis	.Pure electric cargo vehicle chassis (Class II)
Trademark name	Dongfeng brand	Manufacturing enterprise	Dongfeng Automobile Co., Ltd.
Dimensions (mm)	8680 x 2500 x 840	Number of tires	6
Approach angle/departure angle (°)	19/15.	Tire specifications	295/80R22.5 18PR.
The number of steel plate springs	8/10 + 7	Front wheelbase (mm)	1910, 1980
Types of fuel	Pure electric	Rear wheelbase (mm)	1865
Emission standards
Engine model	Engine manufacturers	Discharge (ml)	Power (Kw)
TZ366XS50E.	Chengdu Zhongche Electric Co., Ltd.	0	180

The new Isuzu 1580 white single-row reversible cab, Yunnai D20TCIF1 national six engine, 126 horsepower (93kw), 160MM beam, width on both sides of the beam 740MM, 6-speed gearbox,Big power takerWindow, 6.00R15 tires, oil brake, 24V double camel battery, 1043 rear axle, rotation, ABS, original air conditioner. Electronic instruments, seat belt prompts. Remote emission monitoring terminal.

Product highlights:

Larger loading capacity: The loading capacity of boxes with the same volume is increased per side compared with the previous generation.5 percent (Multi-pack.7Bucket240 LDustbin).
Easy to fault position: scraper skateboard under forceThe position is universalIt is easy to deform by force, resulting in unstable work. The new generation of products developed by our company has innovated in terms of materials and design, making the performance of the whole vehicle more stable and improving the service life.
Working hours: The new generation of compressed garbage trucks produced by our company is inSlackThe loading time in the fast state is25.Within seconds, the loading time is the longest time used by the vehicle, so it is economical fuel, reduce costs, and improve work efficiency.
Wear parts: The scraper is the vehicle with the greatest force, and the slide is the most worn. Our company's slide adopts high strength.Q710.For8mmAbove, the middle of the scraper is strengthened separately, which has greater bearing capacity and wear resistance, which greatly increases the service life.
Oil pump: Oil pump is the main component of the compression vehicle. Our company's new generation oil pump is customized foroil pump factory, with stable performance and extremely low failure rate.

6, noise:The new generation of compressed vehicles has added a photoelectric induction device, which can control the travel distance of each action, reduce the metal sound generated during collision and scraping, and effectively improve noise pollution.

Precautions:

When operating, irrelevant personnel should be avoided from approaching the vehicle, especially the rear of the vehicle.

Two.,Garbage should be evenly put into the filler. Do not concentrate on one side, so that the center of gravity of the vehicle is shifted, or at the mouth of the filler.
Put it too high along the garbage heap,Affect the pressure filling of garbageAnd the garbage is evenly distributed in the garbage can.
Three, Pressure filling homeworkYou should pay attention to observation. If you find large pieces of other garbage (non-household waste) that cannot be compressed, you should stop it in time.
StopWork, continue the work after cleaning, avoid damaging the working device of the vehicle, and it is strictly forbidden to compress construction waste..
Four.,When lifting and dropping the filler during the unloading operation, you should check the safety around you, operate carefully, and do not go on the slope.
Lift the loader, otherwise it is easy to shift the center of gravity back and cause a rollover accident.
5,The filler is not there.Fall and lockBefore, it is not allowed to enter the normal driving.
