Dongfeng 8 ton Swing Arm Garbage Truck

Dongfeng 8 ton Swing Arm Garbage Truck

Dongfeng 8 ton Swing Arm Garbage Truck
Dongfeng 8 ton Swing Arm Garbage Truck
Categories Garbage truck
Certification: ISO9001
MOQ: 1
Price: US $20,000-35,000
Place of Origin: CHINA
Packaging Details: Nuked
Delivery Time: 15 working days
Payment Terms: T/T,LC,
Supply Ability: 150 sets/month
Model NO.: CLW51457TYDFW5
Type: Recycling
Volume: 6001-10000L
Emission Standard: Euro 4
Transmission Type: Manual
Payload: 20T
Fuel: Diesel
Drive Wheel: 4×2
Brand: FOTON
Models: Micro
Condition: New
Transport Package: Complete Vehicle
Specification: 5600× 2000× 2280
Trademark: CLW
Origin: China
HS Code: 8501101000
Production Capacity: 1000
Contact Now
Company Info.
Chengli Special Automobile Co.,Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

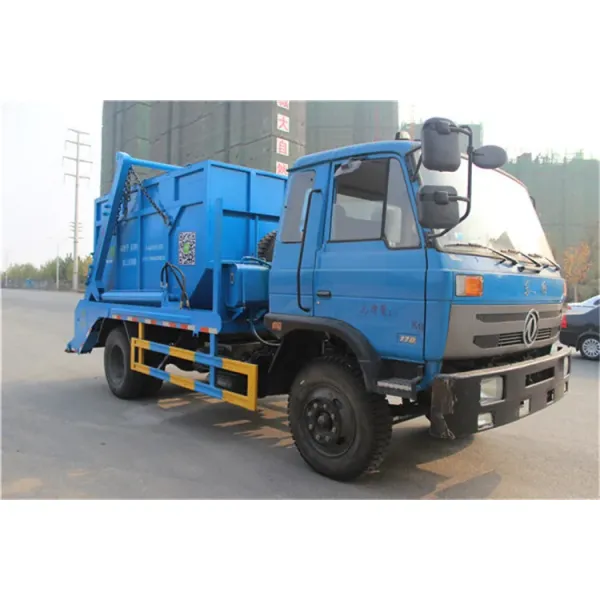

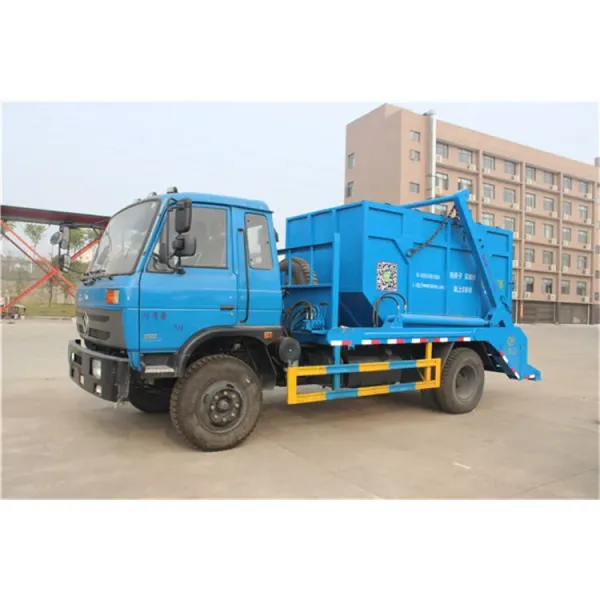

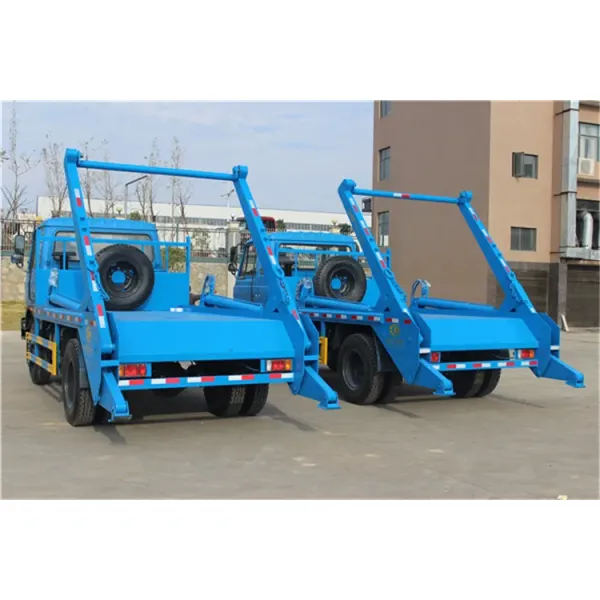

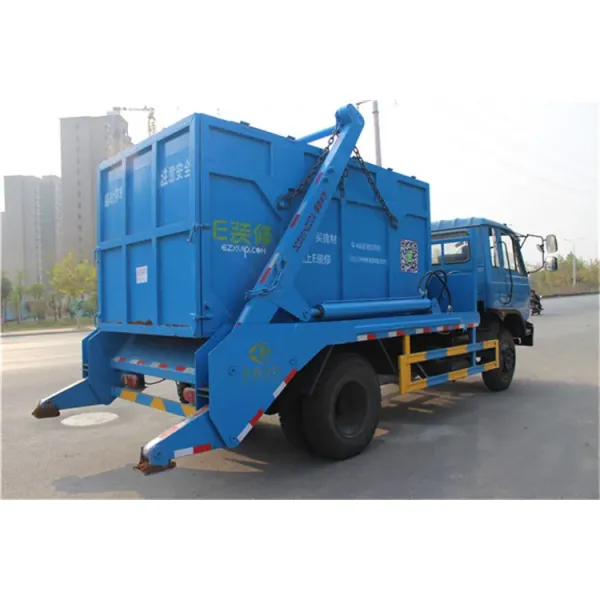

Dongfeng 8 ton Swing Arm Garbage Truck

8 ton swing arm garbage truck
Model introduction:
The swing arm garbage truck adopts Dongfeng and other chassis equipped with a unified hydraulic lifting assembly, and is shipped through the left and right arms National unified swing arm garbage bin, capable of multiple buckets per vehicle, with self dumping function, achieving safety, stability, and reliable performance. The garbage bin body is divided into different forms of garbage bins configured according to the swing arm type and the pit ground dual-use type. Sealed covers can be installed to prevent leakage and flying pollution, to meet different environmental requirements. Leading domestic technology and enterprise accessories are used, ensuring reliable quality.

Main technical parameters:Chassis configuration:
[Main Technical Parameters]
Product trademarkCheng Liwei brandAnnouncement batch382
Product nameCLW5180ZBS6 swing arm garbage truckProduct numberFBJ38263303.
Total mass (Kg)18,000Tank volume (m3)
Rated Load Mass (Kg)11250,11185Dimensions (mm)7360 x 2500 x 3310
Prepared mass (Kg)6620Cargo compartment size (mm)××
Rated passenger capacity (person)
Total mass of quasi-tow truck (Kg)
The number of passengers in the cab (persons)2,3Load mass utilization coefficient
Approach angle/departure angle (°).12/19Front suspension/rear suspension (mm)1,260 / 2,150
Number of axes2Wheelbase (mm)3,600,3950,4500,4700,
Shaft load (Kg)6,500/11500.Maximum speed (Km/h)105
OtherOnly 3950mm wheelbase is selected; the number of passengers in the cab/rated load (person/kg) correspondence is: 2/11250,3/11185;Protective material: Q235B carbon steel, connection method: the left and right side protection are all welded, and the rear protection is replaced by a special device, and the ground height is 450mm; ABS system manufacturer, model: Jiaozuo Berick Control Technology Co., Ltd., J ABS; installed with satellite positioning function Recorder; The Correspondence Between The Engine Model And The Fuel Consumption Value Is (L/100km): B6.2NS6B210/26.3, D4.5NS6B220/26.6, D4.0NS6B195/26.6, YCS04200-68/26.4, CY4 SK761/26.8, B6.2NS6B230/26.1; Special device: swing arm mechanism, mainly used for the collection and transportation of urban sanitation garbage; Optional: fuel tank, battery, urea tank, left and right installation position of gas storage cylinder.
[Technical parameters of chassis]
Chassis modelEQ1185LJ9CDE.Name of the chassisCargo vehicle chassis (Class II)
Trademark nameDongfeng brandManufacturing enterpriseDongfeng Automobile Co., Ltd.
Dimensions (mm)8857×2380×2845Number of tires6
Approach angle/departure angle (°).19/13, 19/17, 16/11, 16/13Tire specifications295/80R22.5 18PR,10.00R20
The number of steel plate springs8/10+7.8/-,7/7+3.6/7+3Front wheelbase (mm)1862, 1933, 1949, 1904, 1960
Types of fuelDiesel oilRear wheelbase (mm)1806,1865
Emission standardsGB17691-2018 Country VI
Engine modelEngine manufacturersDischarge (ml)Power (Kw)
CY4SK761.
YCS04200-68.		Dongfeng Chaoyang Chaochai Power Co., Ltd.
Guangxi Yuchai Machinery Co., Ltd.		4087
4156		145
147

The new Isuzu 1580 white single-row reversible cab, Yunnai D20TCIF1 national six engine, 126 horsepower (93kw), 160MM beam, width on both sides of the beam 740MM, 6-speed gearbox,Big power takerWindow, 6.00R15 tires, oil brake, 24V double camel battery, 1043 rear axle, rotation, ABS, original air conditioner. Electronic instruments, seat belt prompts. Remote emission monitoring terminal.
  1. Larger loading capacity: The loading capacity of boxes with the same volume is increased per side compared with the previous generation.5 percent (Multi-pack.7Bucket240 LDustbin).
  2. Easy to fault position: scraper skateboard under forceThe position is universalIt is easy to deform by force, resulting in unstable work. The new generation of products developed by our company has innovated in terms of materials and design, making the performance of the whole vehicle more stable and improving the service life.
  3. Working hours: The new generation of compressed garbage trucks produced by our company is inSlackThe loading time in the fast state is25.Within seconds, the loading time is the longest time used by the vehicle, so it is economical fuel, reduce costs, and improve work efficiency.
  4. Wear parts: The scraper is the vehicle with the greatest force, and the slide is the most worn. Our company's slide adopts high strength.Q710.For8mmAbove, the middle of the scraper is strengthened separately, which has greater bearing capacity and wear resistance, which greatly increases the service life.
  5. Oil pump: Oil pump is the main component of the compression vehicle. Our company's new generation oil pump is customized for oil pump factory, with stable performance and extremely low failure rate.
6, noise:The new generation of compressed vehicles has added a photoelectric induction device, which can control the travel distance of each action, reduce the metal sound generated during collision and scraping, and effectively improve noise pollution.
Precautions:
  1. When operating, irrelevant personnel should be avoided from approaching the vehicle, especially the rear of the vehicle.

Two.,Garbage should be evenly put into the filler. Do not concentrate on one side, so that the center of gravity of the vehicle is shifted, or at the mouth of the filler.
Put it too high along the garbage heap,Affect the pressure filling of garbageAnd the garbage is evenly distributed in the garbage can.
Three, Pressure filling homeworkYou should pay attention to observation. If you find large pieces of other garbage (non-household waste) that cannot be compressed, you should stop it in time.
StopWork, continue the work after cleaning, avoid damaging the working device of the vehicle, and it is strictly forbidden to compress construction waste..
Four.,When lifting and dropping the filler during the unloading operation, you should check the safety around you, operate carefully, and do not go on the slope.
Lift the loader, otherwise it is easy to shift the center of gravity back and cause a rollover accident.
5,The filler is not there.Fall and lockBefore, it is not allowed to enter the normal driving.
