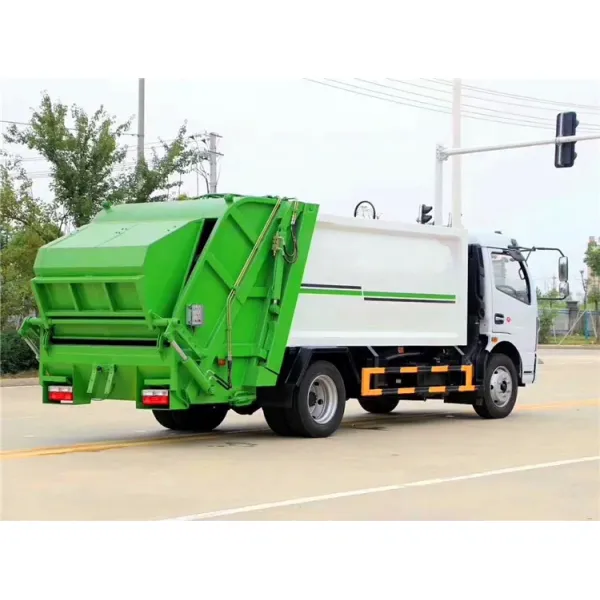

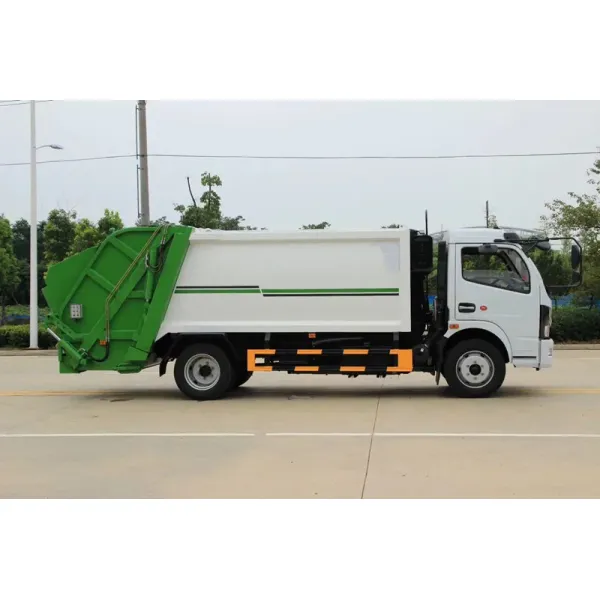

Dongfeng 10cbm Duolika Rear-Mounted Compression Garbage Truck

Model introduction:
The compressed garbage truck is composed of a sealed garbage box, a hydraulic system and an operating system. The whole vehicle is fully sealed. The sewage in the process of self-compression, self-dumping and compression all enters the sewage compartment, which completely solves the problem of garbage transportation.Secondary pollutionThe problem avoids inconvenience to people. The key parts are imported parts, which have the advantages of high pressure, good sealing, convenient operation, safety and so on. It can be equipped with a variety of rear-hanging bucket flipping mechanism or garbage bucket flipping mechanism.

Main technical parameters:

Product name	Compressed garbage truck
Total mass (Kg)	11995	Box volume (m3)	9
Rated Load Mass (Kg)	4800	Dimensions (mm)	7430×2350×2850,3000
Prepared mass (Kg)	7000	Front suspension/rear suspension (mm)	.1,130 / 2,200
The number of passengers in the cab (persons)	Three	Wheelbase (mm)	3800
Approach angle/departure angle (°)	13/21	Shaft load (Kg)	4,350/7,645
Number of axes	2	Maximum speed (Km/h)	103
[Technical parameters of chassis]
Chassis model	EQ1125SJ8CDC.	Name of the chassis	Cargo vehicle chassis (Class II)
Trademark name	Dongfeng brand	Manufacturing enterprise	Dongfeng Automobile Co., Ltd.
Approach angle/departure angle (°)	14/21	Number of tires	6
Tire specifications	245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR
.The number of steel plate springs	8/10+7,12/12+9	Front wheelbase (mm)	1745,1802,1820,1842,1765,1890
Types of fuel	Diesel oil	Rear wheelbase (mm)	1630,1650,1800,1720
Emission standards	GB17691-2018 Country VI
Engine model	Engine manufacturers	Discharge (ml)	Power (Kw)
YCY 30165-60	Guangxi Yuchai Machinery Co., Ltd.	2970	121

Chassis configuration:
Dongfeng Dorika 9-way compressed garbage truck adopts Dongfeng D7 sanitation vehicle special chassis, 3800MM wheelbase, Yuchai 165 horsepower engine, Wanliyang 6-speed gearbox, 245 vacuum tire, 192mm double-layer beam, 2.7T/5.5T Dena front and rear axles, exhaust brake, air brake, original factory Air conditioner, national joint warranty.
Top-loading configuration table:

Order	.Name	Specifications and models
1	Chassis name/model	Dongfeng D7 series
2	Wheelbase (mm)	3800
Three	The volume of the box is m3	9
4	Box thickness mm	Wugang Q345 low-alloy manganese steel (side four and bottom five) flipping mechanism scraper, arc bottom plate, slide adopts Q710 high-strength plate
5	Sewage tank	There is a sewage sink on the front of the large box, and an integrated sewage tank at the bottom of the filler.
6	Box shape	Arc, the side plate is the whole plate for one-time molding, no welding
7	Hydraulic cylinder	Hypris
8	Oil pump	Changyuan
9	Multi-way valve	Zhongmei, Yangzhou, Jiangsu Province
Ten	Hydraulic oil pipe	Bonway hydraulic oil pipe (high-density double-layer 24Mpa)
11	System rated pressure	18 MPa
12	Compression ratio	≥0.85
13	Consolidation method	Two-way peristaltic compression
14	Control system	German Simens PLC and German photoelectric sensors
15	Loading single cycle time	≤24 s
16	.Time to dump garbage	≤35 s
17	Control method	All-in-one independent operation of the handsplet (standard remote control)
18	Key component structure	Reinforced with cast steel parts
19	Shovel and skateboard slider	Highly wear-resistant nylon
20	The design of the whole vehicle	Use SW three-dimensional software to simulate
21	Back-hanging bucket method	.Standard configuration: rear-turning barrel type (can hang the national standard 240 plastic barrel or iron barrel or triangle bucket) / optional: fully sealed bucket, swing arm flip
22	Body color/text	Body color and text painting can be customized according to customer requirements.
23	Attachment	Profile light, side light, work light

Product highlights:

Larger loading capacity: the same volume of the box increases by 5% per square capacity compared with the previous generation (more than 7 barrels of 240L trash cans).
Fault-prone position: The force position of the scraper skateboard is generally prone to deformation, resulting in unstable work. The new generation of products developed by our company has innovated in terms of materials and design, making the performance of the whole vehicle more stable and improving the service life.
.Working time: The loading time of the new generation of compressed garbage trucks produced by our company is within 25 seconds in the idle state, and the loading time is the longest time used by the vehicle, so it is economical fuel, reduces costs, and improves work efficiency.
Wear parts: The scraper is the largest force on the vehicle, and the slide is the most worn. Our company's slide adopts a high-strength Q710 of more than 8mm. The middle of the scraper is strengthened separately, which has greater bearing capacity and stronger wear resistance, greatly increasing the service life.
Oil pump: Oil pump is the main component of the compression vehicle. Our company's new generation oil pump is customized for oil pump factory, with stable performance and extremely low failure rate.

6. Noise: The new generation of compression vehicles has added a photoelectric induction device, which can control the travel distance of each action, reduce the metal sound generated during collision and scraping, and effectively improve noise pollution.
Precautions:

When operating, irrelevant personnel should be avoided from approaching the vehicle, especially the rear of the vehicle.

Two.,Garbage should be evenly put into the filler. Do not concentrate on one side, so that the center of gravity of the vehicle is shifted, or at the mouth of the filler.
If the garbage heap is too high, it will affect the pressure filling of garbage and the uniform distribution of garbage in the garbage bin.
Three, When pressing and filling, you should pay attention to observation. If you find large pieces of other garbage (non-household waste) that cannot be compressed, you should stop it in time.
Stop the operation, continue the operation after cleaning, avoid damaging the working device of the vehicle, and it is strictly forbidden to compress construction waste..
Four.,When lifting and dropping the filler during the unloading operation, you should check the safety around you, operate carefully, and do not go on the slope.
Lift the loader, otherwise it is easy to shift the center of gravity back and cause a rollover accident.
5,The filler must not enter normal driving before it falls and is locked.
