Keyence FS-N41N Digital Fiber Optic Sensor Amplifier

Categories Keyence Sensors
Model Number: FS-N41N
Supply Ability: 100PC
Head Mount: DIN form B head mount
Special Features: Integrated TwinCAT 3 runtime environment
Packaging Details: carton
Operating Temperature: -25°C to +60°C
Brand Name: KEYENCE
Indicator: Power indicator
Price: negotiate
Measuring Range: 150 mm
Product No: BSW000R
Place of Origin: China
MOQ: 1
Payment Terms: T/T,Alipay,Paypal,XT
Temperature Range: -25°C To +60°C
Line Voltage: 200 to 600 Volts AC
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

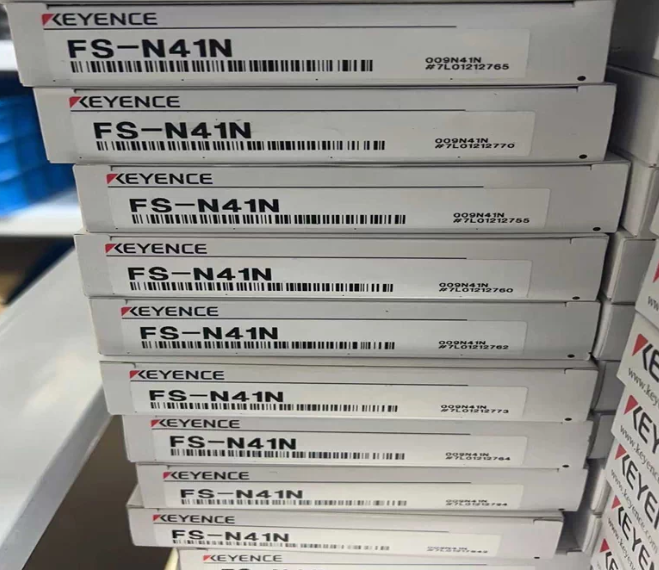

Keyence FS-N41N Digital Fiber Optic Sensor Amplifier

Keyence FS-N41N Digital Fiber Optic Sensor Amplifier


Manufacturer :KEYENCE
Product No. : FS-N41N

ParameterSpecification
Model NumberFS-N41N
BrandKeyence
SeriesFS-N40 Digital Fiber Optic Amplifier
Unit TypeCable Type, Main Unit
Control Output1-channel NPN open collector
Max Output Load≤ 100 mA (standalone)
Residual Output Voltage≤ 1.4 V (@ ≤10 mA); ≤ 2.0 V (10~100 mA)
Light SourceRed four-element LED, 660 nm
Response Time Options23 µs / 50 µs / 250 µs / 500 µs / 1 ms / 4 ms / 16 ms / 64 ms
Supply Voltage10 ~ 30 VDC (ripple ≤ ±10% P-P)
Power Consumption≤ 910 mW (Normal) / ≤ 840 mW (ECO ON) / ≤750 mW (ECO FULL)
External Input ChannelNone
Mutual Interference SuppressionAdjustable according to response speed setting
Protection CircuitsReverse power, output overcurrent, surge protection


ParameterSpecification
Housing MaterialPolycarbonate
Mounting Method35 mm DIN rail mounting
Ambient Operating Temperature-20 °C ~ +55 °C (non-freezing)
Storage Temperature-25 °C ~ +65 °C
Allowable Ambient LightIncandescent lamp ≤20,000 lx; Sunlight ≤30,000 lx
Vibration Resistance10–55 Hz, 1.5 mm double amplitude, 2 hours per X/Y/Z axis
Shock Resistance500 m/s², 3 shocks per X/Y/Z axis
Protection ClassIP40 (body, indoor cabinet installation)
Cable TypeIntegrated outgoing cable
CertificationsCE, UL, CSA
ComplianceRoHS
