Keyence FD-XA1 DIN‑Rail Flow Sensor Main Controller Unit

Categories Keyence Sensors
Model Number: FD-XA1
Supply Ability: 100PC
Head Mount: DIN form B head mount
Special Features: Integrated TwinCAT 3 runtime environment
Packaging Details: carton
Operating Temperature: -25°C to +60°C
Brand Name: KEYENCE
Indicator: Power indicator
Price: negotiate
Measuring Range: 150 mm
Product No: BSW000R
Place of Origin: China
MOQ: 1
Payment Terms: T/T,Alipay,Paypal,XT
Temperature Range: -25°C To +60°C
Line Voltage: 200 to 600 Volts AC
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

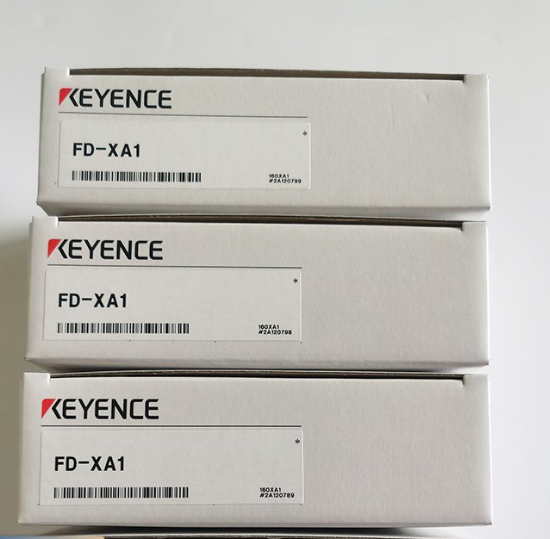

Keyence FD-XA1 DIN‑Rail Flow Sensor Main Controller Unit

Keyence FD-XA1 DIN‑Rail Flow Sensor Main Controller Unit


Manufacturer :KEYENCE
Product No. : FD-XA1

Specification ItemFD‑XA1 Parameter Details
Device ModelFD‑XA1
Installation FormStandard DIN rail mounting
Supply Voltage20‑30 VDC, 10 % peak‑to‑peak ripple permitted, Class‑2 power supply
Max Working Current≤195 mA (sensor‑head power included, load‑side current excluded)
Expansion CapacityOne main unit can connect a maximum of 7 expansion units
Digital Output ModeSwitchable NPN / PNP open‑collector output; Max 50 mA per channel on main unit, 20 mA per channel on expansion modules, residual output voltage ≤2 V
Analogue OutputDual‑option 4‑20 mA / 0‑20 mA, maximum load resistance 500 Ω
Multifunction External InputZero‑flow reset, sampling trigger, accumulated‑flow reset, zero‑offset input (function‑switchable); Short‑circuit current ≤1 mA (NPN) / ≤2 mA (PNP), minimum trigger duration 20 ms
Industrial ProtocolBuilt‑in IO‑Link interface
Built‑in Protection CircuitReverse‑power‑supply protection, surge‑voltage defence, output short‑circuit and surge‑protection circuits


Performance ParameterTechnical Data
Main‑housing MaterialPolycarbonate; Button component: POM; Connecting cable jacket: PVC
Net WeightApprox. 210 g
Operating Temperature Range‑10 ℃ ~ +50 ℃, operation without internal freezing
Working Humidity35 %‑85 % RH, non‑condensing environment
Vibration Resistance10–55 Hz, 1.5‑mm peak‑to‑peak amplitude, two‑hour endurance testing along X, Y and Z axes
Shock‑Resistance Rating100 m/s² (10 G), 16‑millisecond pulse, 1000 impacts on three orthogonal axes
