3Pins 10A Compact Standard Connector

Categories	Heavy Duty Connector
Place of Origin:	China
Payment Terms:	T/T
Price:	$1.47/$1.38/$1.28
Protectionrating:	IP65
Housing:	H3A Series
Number of Contacts:	3
Inserts:	Polycarbonate 3412 ECR
Currentrating:	10A
Operating Temperaturerange:	-40°C to +125°C
Model Number:	HA-003-M/HA-003-F
Durability:	200 Times Plug in and out
Certification:	UL,COC,CE,UKCA,SGS,EAC,RoHS
Connection Type:	Screw Terminals
Brand Name:	ZJHK
MOQ:	5pcs/30pcs/50pcs
Connector Type:	Standard Connector
Delivery Time:	5~7 work days
Order Number:	09200032611/09200032711

Contact Now

Add to Cart

Company Info.

Zhejiang Haoke Electric Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

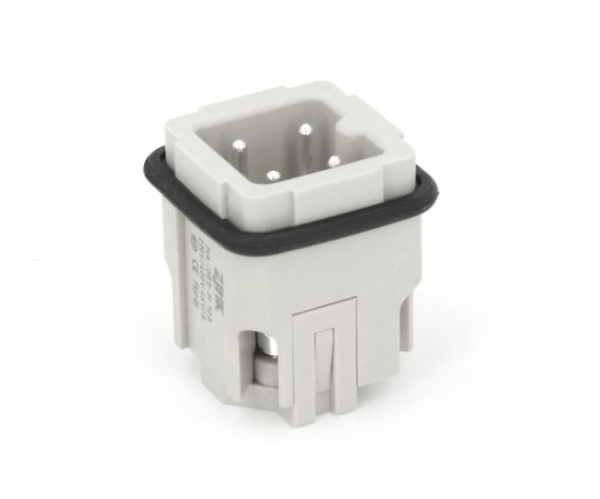

3Pins 10A Compact Standard Connector

High-performance compact connector designed for efficient power transmission in limited spaces.

3Pins 10A Compact Standard Connector side view

Technical Specifications

Specifications	DIN EN 60 664/DIN EN 61 984
Number of contacts	3
Gender	Male/Female
Rated Current	10A
Rated Voltage Conductor-ground	230V
Rated Voltage Conductor-conductor	400V
Rated Impulse Voltage	4kV
Pollution Degree	3
Rated Voltage Acc.to UL Csa	600V
Insulation Resistance	≥1010Ω
Material	Polycarbonate
Limiting Temperature	-40℃...+125℃
Flammability Acc.to UL94	V0
Mechanical Working Life-mating Cycles	≥500
Contacts	Copper Alloy
Material	Hard-silver Plated
Contact Resistance	≤1mΩ
Wire Gauge	1.0-2.5mm²
AWG	18-14
Tightening Torque	0.25Nm

Product Drawings

Female Insert HA-003-F

Male Insert HA-003-M

Product Overview

The slim series inserts enable connection of 3 wires in compact spaces. This configuration includes 4 pins: 3 for current transmission and 1 for grounding. This product series offers perfect compatibility with Harting 3A series connectors.

Key Advantages:

Efficiently increases installation flexibility
Widely applicable across multiple industrial sectors
Compact design for space-constrained applications
Full compatibility with Harting 3A series

Workshops & Applications

Our company manages the complete production process internally with automated manufacturing systems. We produce a comprehensive range of 3A series products, widely used in hot runner machines for plastic components, contacts, and metal hoods across various industrial applications.

Manufacturer Profile

Zhejiang Haoke Electric Co. Ltd.

We are a leading manufacturer of high-performance connectors, dedicated to innovation and quality excellence. With a robust R&D center and smart production base, we provide customized electric connection systems specifically for the hot runner industry.

Company Commitment: "Customer-first, mutual success" philosophy driving partnerships with Fortune 500 companies and global certification compliance including UL, CQC, CE, UKCA, and EAC. Our products are extensively exported to European and American markets.

HAOKE ELECTRIC - Powering the hot runner industry with advanced connection technology and reliable electrical solutions.
