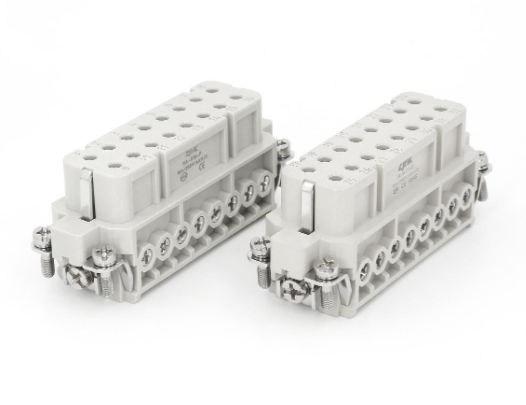

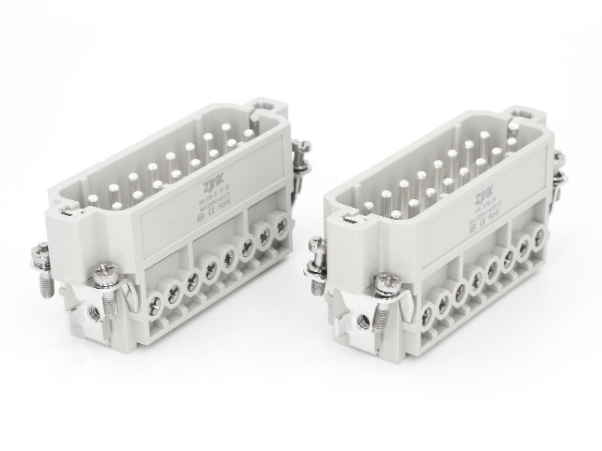

32Pins 16A Screw Slim Insert
The HA-032 series inserts feature a compact structure with 32
densely arranged wires and side-positioned grounding terminals. The
electrical transmission system comprises 32 silver-plated pins,
organized as two independent 16-pin connectors with distinct
numbering for easy identification. Available in both universal and
unmarked versions for broad compatibility with mainstream
connectors, this design maximizes space utilization while ensuring
reliable equipment performance.
Technical Specifications
| Specifications | Values |
|---|
| Standards | DIN EN 60 664/DIN EN 61 984 |
| Number of contacts | 32 |
| Rated Current | 16A |
| Rated Voltage | 250V |
| Rated Impulse Voltage | 4kV |
| Pollution Degree | 3 |
| Pollution Degree 2 Also | 16A 230/400V 4kV 2 |
| Rated Voltage According to UL CSA | 600V |
| Limiting Temperature | -40℃...+125℃ |
| Matching Housings | 32A Series |

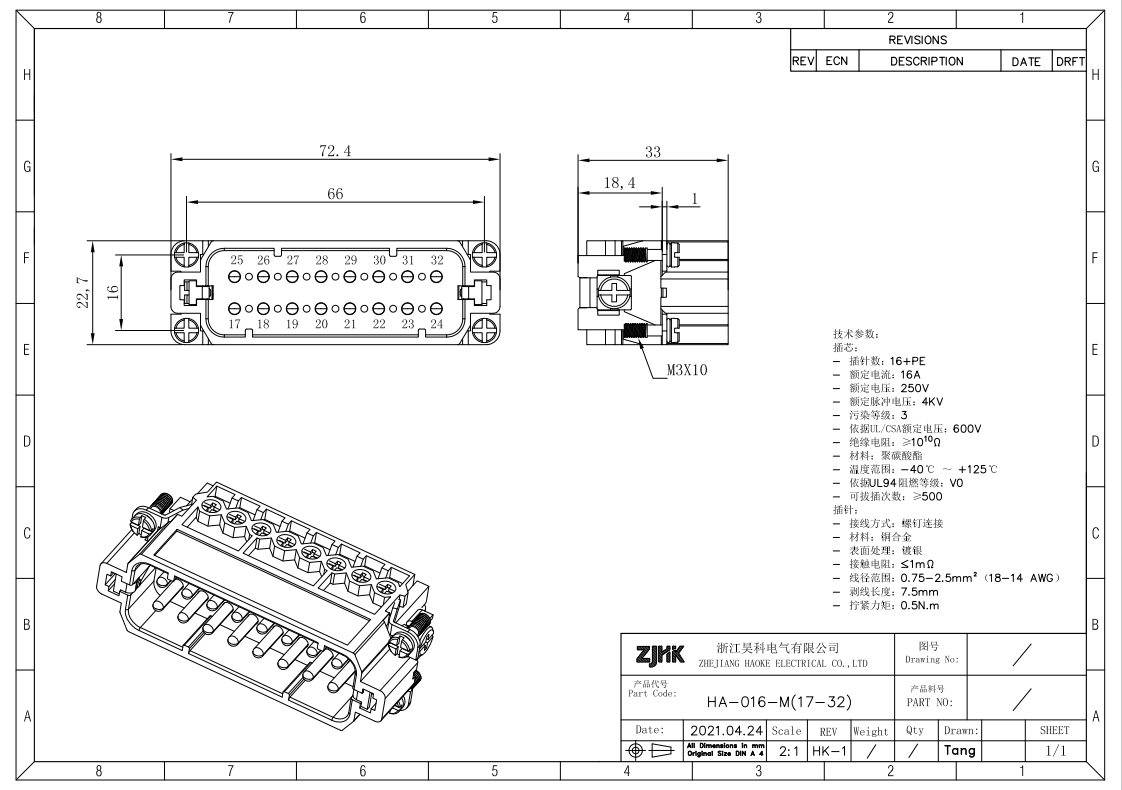

Product Drawings
HA-016-M(17~32)
HA-016-F(17-32)

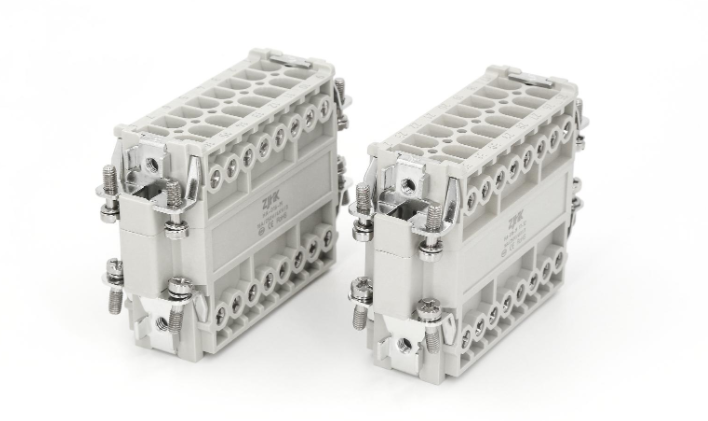

Product Overview
The HA-032 series inserts consist of two 16-pin chips with distinct
identification numbers for clear differentiation. Plastic
components are manufactured from imported polycarbonate (PC)
material, providing excellent resistance to harsh environmental
conditions.
Professional Testing Equipment
DC Temperature Rise Test
This analysis assesses conductor operating temperatures to
establish maximum permissible current limits. Elevated current
levels generate resistive heating, causing temperature increases
and reduced current-carrying capacity. The evaluation incorporates
conductor geometry, ambient conditions, and thermal properties to
establish safe operating limits and prevent overheating in
electrical systems.
Application Scenarios
Transportation
Heavy duty connectors employed in rail transit integrate power
supply, control signals, data communication, and braking functions
into modular units, offering efficient plug-and-play solutions.
They ensure reliable operation in critical traction and signaling
systems, even under demanding environmental conditions. The design
simplifies installation, enhances durability, and complies with
rigorous industry standards, delivering full functionality through
compact and robust interfaces.
Company Introduction
Certified Heavy-Duty Connectivity Solutions
Zhejiang Haoke Electric Co., Ltd. is a technology-driven
manufacturer specializing in heavy-duty electrical connectors. Our
integrated capabilities span R&D, fully automated production
lines, and worldwide certification, ensuring every product meets
the highest standards.

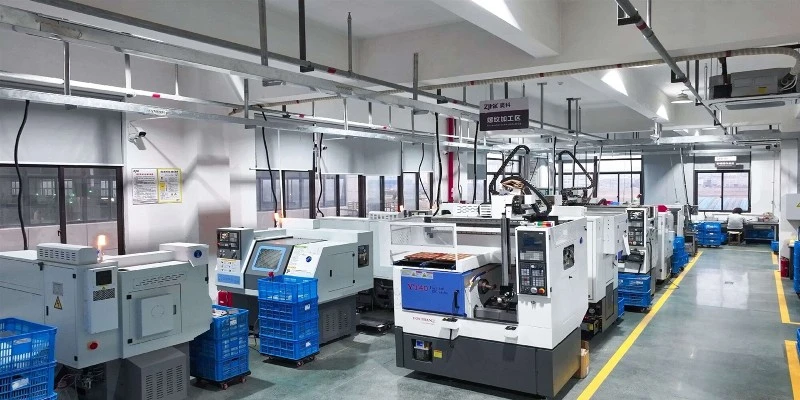

Global Expertise & Product Portfolio
Led by a team of ten-plus certified engineers and supported by
dozens of intelligent manufacturing systems, we deliver thousands
of configurations across the HA, HE, HEE, HD, HDD, and HSB series.
All products are UL-, CQC-, CE-, UKCA-, and EAC-certified,
providing highly reliable, stable, and customizable solutions to
leading international enterprises.
Authorized Certification
After years of efforts, we have accumulated a wide variety of
certificates
Frequently Asked Questions
Do you produce the goods yourselves, or do you source them from
suppliers?
We have our own factory in Wenzhou City, Zhejiang Province, China.
How long is your warranty time?
12 months. Any quality problems are resolved with replacements in
your next order free of charge.
What's your advantage compared with Harting, ILME, TE?
Our HDC connectors can perfectly replace Harting, ILME, and TE
(SIBAS) products. Most clients who previously used these brands
have chosen us after testing. Additionally, our pricing is 40-50%
lower than Harting.
If I want some regular products, do you have any stock in the
warehouse?
Most models are in stock, and order quantity is unlimited. We also
welcome small orders.
