Ulvac GHD (031B, 101D) Oil Rotary Vane Vacuum Pump Using Magnetic Coupling

Welcome to Shanghai Mengsheng Sheng International Trade

Name:ULVAC GHD-031B GHD-101D oil rotary vane vacuum pump using magnetic coupling

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Description :

Oil rotary vane vacuum pump using magnetic coupling
1.There will be no oil leakage at the shaft seal.
2.Equipped with an anti backflow valve directly below the exhaust pipe, the pump automatically opens to the atmosphere when stopped.
3.A wide voltage motor was used.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Your satisfaction and positive feedback is very significant to us.

Thank you! Have a nice day!

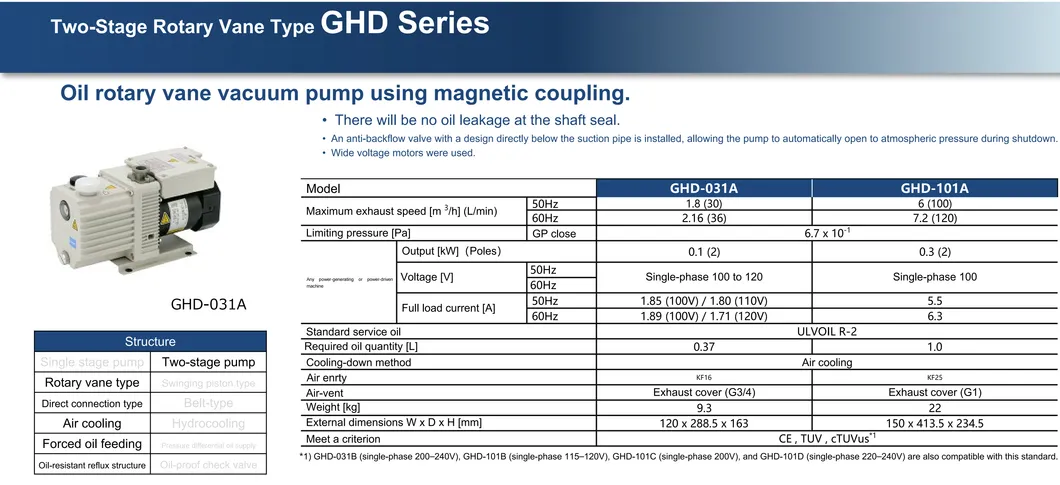

Model			GHD-031A	GHD-101A
Maximum exhaust speed [m³/h](L/min)		50Hz	1.8(30)	6(100)
		60Hz	2.16(36)	7.2(120)
Limiting pressure [Pa]		GP close	6.7×10-¹
Any power-generating or power-diven machine	Output [kW](Poles)		0.1(2)	0.3(2)
	Voltage [V]	50Hz	Single-phase 100 to 120	Single-phase 100
		60Hz
	Full load current [A]	50Hz	1.85(100V)/1.80(110V)	5.5
		60Hz	1.89(100V)/1.71(120V)	6.3
Standard service oil			ULVOIL R-2
Required oil quantity [L]			0.37	1.0
Cooling-down method			Air cooling
Air enrty			KF16	KF25
Air-vent			Exhaust cover(G3/4)	Exhaust cover (G1)
Weight [kg]			9.3	22
External dimensions W×D×H [mm]			120×288.5x163	150x413.5x234.5
Meet a criterion			CE,TUV,cTUVus
