Ulvac Nb300b Nb600b Nb1200b Roots Vacuum Pump

Welcome to Shanghai Mengsheng Sheng International Trade

Name:ULVAC NB300B NB600B NB1200B Roots vacuum pump

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Description :

Oil-free:
Since no lubricating oil is used in the casing chamber, stable performance is realized even when evacuating water vapor or solvent vapors.
Operation at high inlet pressure:
If a motor larger than the standard motor is installed, the pumps are sufficiently applicable to systems having high gas loads, such as CO2, laser process.
Applications:
1.llluminate, electronics optics, semiconductor.
2.Evaporation, sputtering, ion plating, liquid crystal injector.
3.Vacuum drying, freeze drying, vacuum degassing.
4.Vacuum heat treatment furnaces, sintering furnaces, brazing furnaces.
5.Analytical instrument, leak testers, CO2 laser equipment vacuum dryers.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Your satisfaction and positive feedback is very significant to us.

Thank you! Have a nice day!

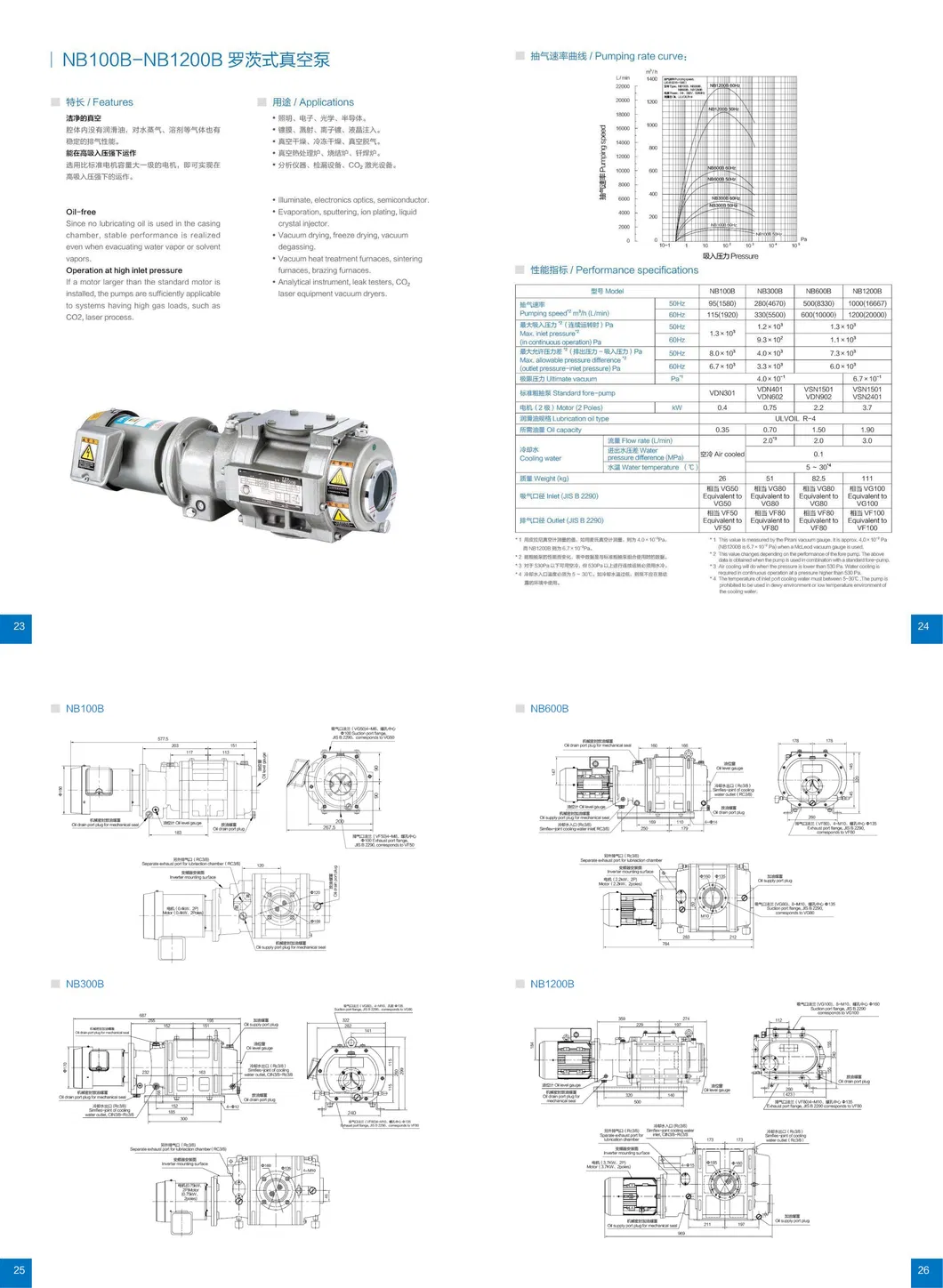

Model			NB100B	NB300B	NB600B	NB1200B
Pumping speed²m³/h(L/min)		50Hz	95(1580)	280(4670)	500(8330)	1000(16667)
		60Hz	115(1920)	330(5500)	600(10000)	1200(20000)
²()Pa Max.inlet pressure² (in continuous operation)Pa		50Hz	1.3×10³	1.2×10³	1.3×10³
		60Hz		9.3×10²	1.1×10³
2(-)Pa Max.allowable pressure difference² (outlet pressure-inlet pressure)Pa		50Hz	8.0×10³	4.0×10³	7.3×10³
		60Hz	6.7×10³	3.3×10³	6.0×10³
Ultimate vacuum		Pa	4.0×10-1			6.7×10-1
Standard fore-pump			VDN301	VDN401 VDN602	VSN1501 VDN902	VSN1501 VSN2401
(2)Motor(2 Poles)		kW	0.4	0.75	2.2	3.7
Lubrication oil type			ULVOIL R-4
Oil capacity			0.35	0.70	1.50	1.90
Cooling water	Flow rate (L/min)		Air cooled	2.0*³	2.0	3.0
	Water pressure difference(MPa)			0.1
	Water temperature(ºC)			5~30*
Weight(kg)			26	51	82.5	111
Inlet(JIS B2290)			VG50 Equivalent to VG50	VG80 Equivalent to VG80	VG80 Equivalent to VG80	VG100 Equivalent to VG100
Outlet (JIS B2290)			VF50 Equivalent to VF50	VF80 Equivalent to VF80	VF80 Equivalent to VF80	VF100 Equivalent to VF100
