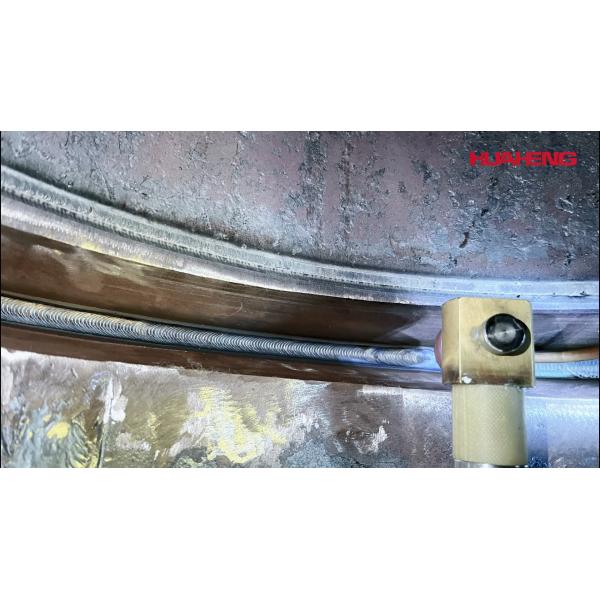

All-position automatic TIG orbital welding for large diameter pipe butt joints, with cold wire / hot wire DC & pulse capability.
System overview and applications

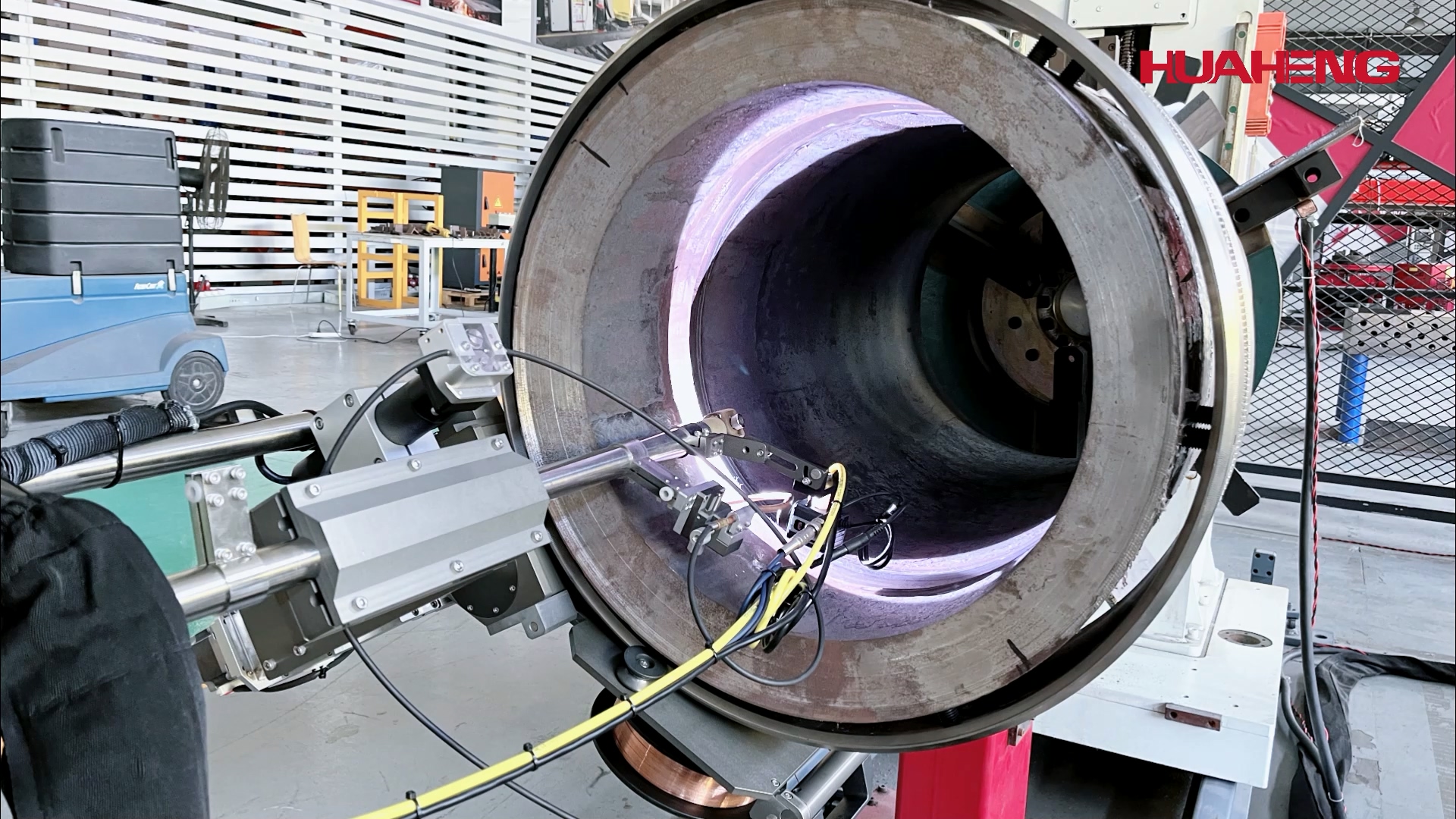

The system is specially designed for pipe to pipe butt joint TIG orbital welding, and the welding range could reach Φ300mm and above.
Core functions and capabilities
Main specifications
| Parameter | Specification |
|---|---|
| Pipe diameter range (mm) | 304.8~609.6 (12“~24”) |
| Wall thickness (mm) | 3~20 |
| Welding speed (mm/min) | 60~180 |
| Cold wire feeding speed (mm/min) | 95~1500 |
| Hot wire feeding speed (mm/min) | 360~5500 |
| Wire diameter (mm) | 1.0/1.2 |
| Arc length height (mm) | 0~40 |
| Yaw width (mm) | 0~40 |
|
