| Wire diameter(mm）: | Φ1.0（Standard） |
| Weldable material: | Carbon steel, stainless steel |
| Model: | TOA series |
| Cooling flow(ml/min）: | ≥300 |
| Protective gas: | Argon |
| Model Number: | TOA |
| Cooling method: | Water |

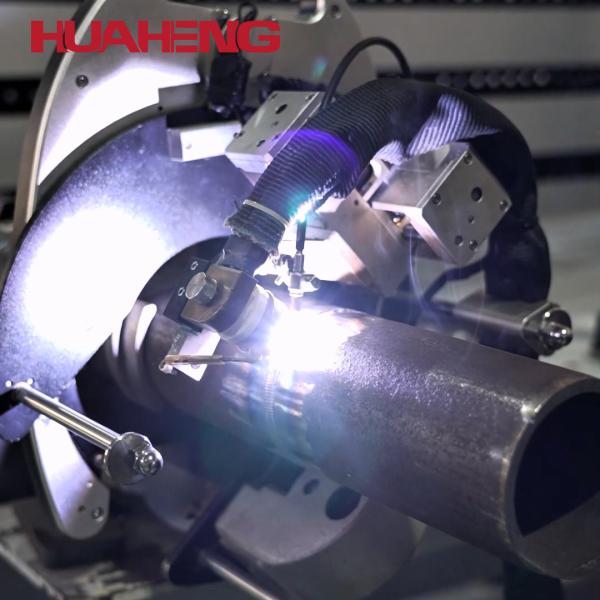

Specially designed for automatic pipe-to-pipe butt joints. Compatible with iOrbital5000 and external wire feeders for precise orbital TIG welding.

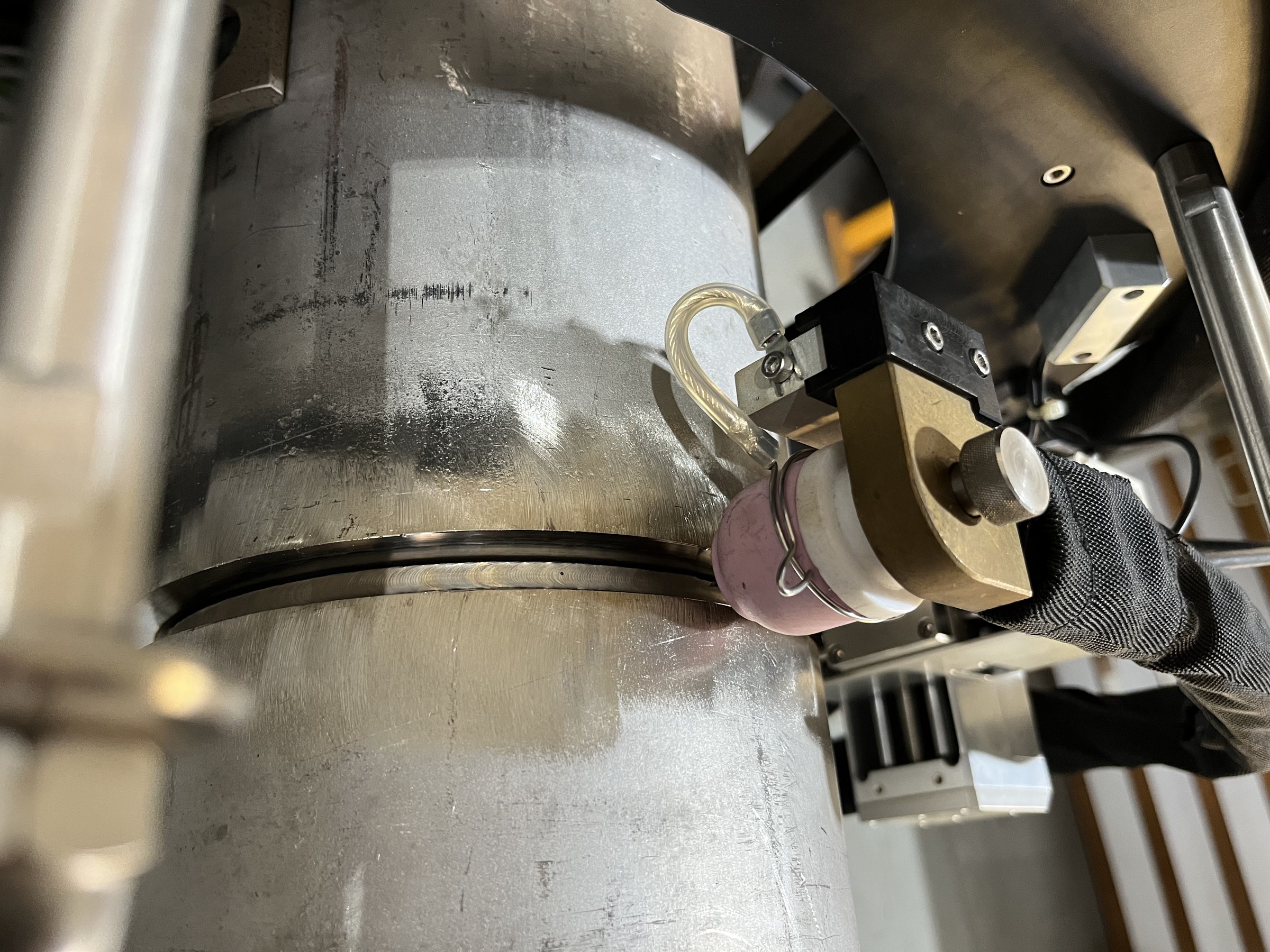

System overview and applications
This welding head is specially designed for tube to tube TIG welding, suitable for carbon steel and stainless steel tube to tube butt joints. It's fit for fusion welding or wire feeding with an external TB1501 integrated wire feeder with AVC & OSC functions. It is compatible with iOrbital5000 programmable controllers to achieve accurate orbital TIG welding for tube/tube welding with high repeatability. It is mainly applied in chemical, food, medicine, engineering installation, boiler, nuclear and so on.
Core features and capabilities
Specifications for TOA77 to TOA320 models
| Parameter | TOA77 | TOA130 | TOA180 | TOA230 | TOA320 |
|---|---|---|---|---|---|
| Weldable pipe diameter - Inner clamp (mm) | Φ19.05～Φ45 (3/4″～1 3/4″) | Φ38.1～Φ76 (1 1/2″～3″) | Φ50.8～Φ114.3 (2″～4 1/2″) | Φ120～Φ178 (4 1/2″～7") | Φ150～Φ230 (6″～9″) |
| Weldable pipe diameter - Outer clamp (mm) | Φ45～Φ77 (1 3/4″～3″) | Φ76～Φ130 (3″～5″) | Φ114.3～Φ180 (4 1/2″～7″) | Φ178～Φ230 (7″～9″) | Φ230～Φ324 (9″～12 3/4″) |
| Tungsten electrode diameter (mm) | Φ2.4, Φ3.2 | Φ2.4, Φ3.2 | Φ2.4, Φ3.2 | Φ2.4, Φ3.2 | Φ2.4, Φ3.2 |
| Spinning speed (rpm) | 0.19～3.8 | 0.11～2.2 | 0.09～1.8 | 0.05～1.0 | 0.026～0.52 |
| Yaw width (mm) | 20 | 40 | 40 | 40 | 40 |
| Arc length height (mm) | 40 | 40 | 40 | 40 | 40 |
| Maximum wire feed speed (mm/min) | 1800 | 1800 | 1800 | 1800 | 1800 |

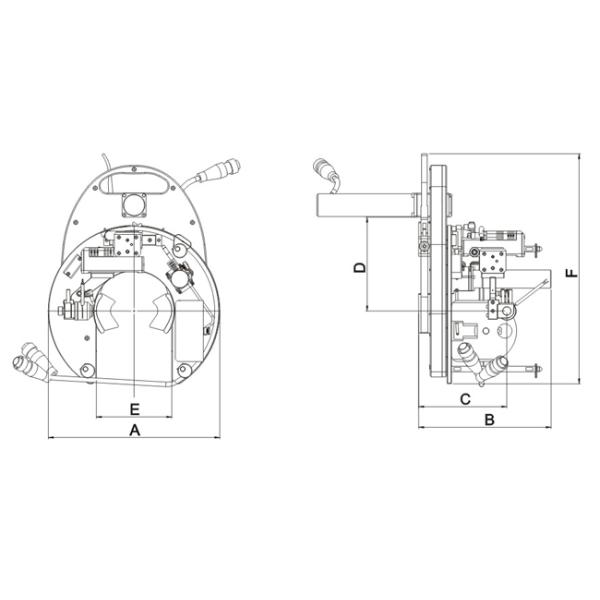

| Dimension A (mm) | 220 | 300 | 375 | 425 | 550 |
| Dimension B (mm) | 180 | 235 | 285 | 300 | 315 |
| Dimension C (mm) | 112～132 | 156～196 | 184～224 | 195～235 | 230～270 |
| Dimension D (mm) | 92 | 165 | 225 | 250 | 297 |
| Dimension E (mm) | 82 | 132 | 182 | 232 | 328 |
| Dimension F (mm) | 320 | 400 | 525 | 570 | 680 |
| Weight (kg) | 5.5 (without cable) | 10.8 (without cable) | 19.5 (without cable) | 21.5 (without cable) | 36 (without cable) |
| Overall Dimensions (mm) | 370×220×320 | 435×300×400 | 445×375×525 | 465×425×570 | 430×610×680 |
|
