| Categories | RV-C Series |
|---|---|
| Brand Name: | HONPINE |
| Model Number: | RV - C |
| Certification: | ISO9001 |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1 set |
| Price: | To Be Negotiated |
| Payment Terms: | T/T |
| Supply Ability: | 20000 Sets per Month |
| Delivery Time: | 3-4 Weeks |
| Packaging Details: | Carton Box |
| Product: | Hollow Shaft C Series RV Reducer |
| Material: | Steel, Aluminum |
| Torsional Rigidity: | 421 to 24500 Nm/arc.min. |
| Lost motion: | MAX. 1 Arc.min. |
| Output speed: | 5 to 60 r/min |
| Momentary max. allowable torque: | 1372 to 78400 Nm |
| Max allowable output rotation speed: | 80 r/min |
| Model: | BX10C, BX27C, BX50C, BX100C BX120C, BX200C, BX320C, BX500C |
| Weight: | 4.6 to 154 kg |
| Color: | Sliver |
| Warranty: | 1 Year |
RV reducer is a new transmission mechanism developed from traditional cycloid gearbox and planetary gearbox. It has the advantages of compact structure, large transmission, long service life, stable precision and high efficiency.
The rotary vector reducer is the core component of industrial robots, and the transmission efficiency is undoubtedly an important indicator of transmission performance. In addition, the assembly dimensional chain leads to clearance between parts, which can have a certain impact on the transmission efficiency.
Key Features
Specifications
 | Specification | Output Torque kgf-m(Nm) |
| 10 | 10(98) | |
| 27 | 27(265) | |
| 50 | 50(490) | |
| 100 | 100(980) | |
| 120 | 120(1176) | |
| 200 | 200(1961) | |
| 320 | 320(3136) | |
| 400 | 400(3920) | |
| 500 | 500(4900) |
Parameters table of RV - C series
| Model | Torsional Rigidity Nm/arc.min. | Dimension(mm) | Allowable bending torque (Nm) | Allowable thrust load (N) | Torsional stiffness | Backlash/Lost motion | ||
| a | b | Nm/arc.min. | arc.min | Determining rotational speed (Nm) | ||||
| BX10C | 421 | 28 | 119.2 | 686 | 5880 | 47 | MAX1 | ±2.94 |
| BX27C | 1068 | 38.2 | 150.3 | 980 | 8820 | 147 | ±7.94 | |
| BX50C | 1960 | 50.4 | 187.1 | 1764 | 11760 | 255 | ±14.7 | |
| BX100C | 2813 | 58.7 | 207.6 | 2450 | 13720 | 510 | ±29.4 | |
| BX120C | 2813 | 58.7 | 207.6 | 2450 | 13720 | 510 | ±29.4 | |
| BX200C | 9800 | 76 | 280.4 | 8820 | 19600 | 980 | ±58.8 | |
| BX320C | 12740 | 114.5 | 360.5 | 20580 | 29400 | 1960 | ±94.1 | |
| BX500C | 24500 | 125 | 413.4 | 34300 | 39200 | 3430 | ±147.0 | |

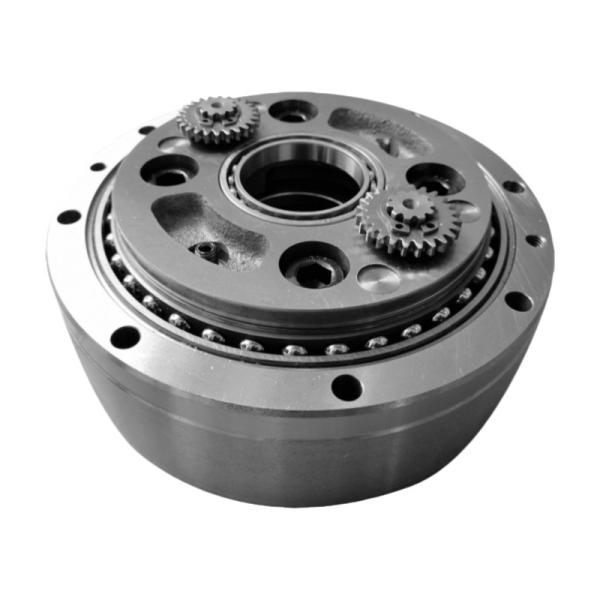

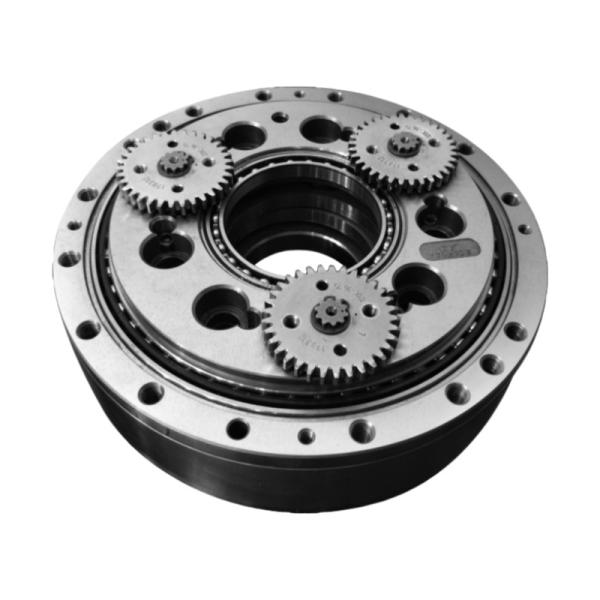

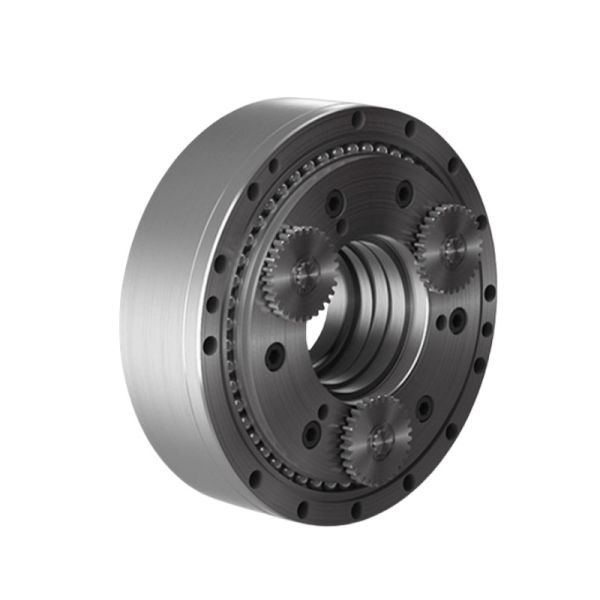

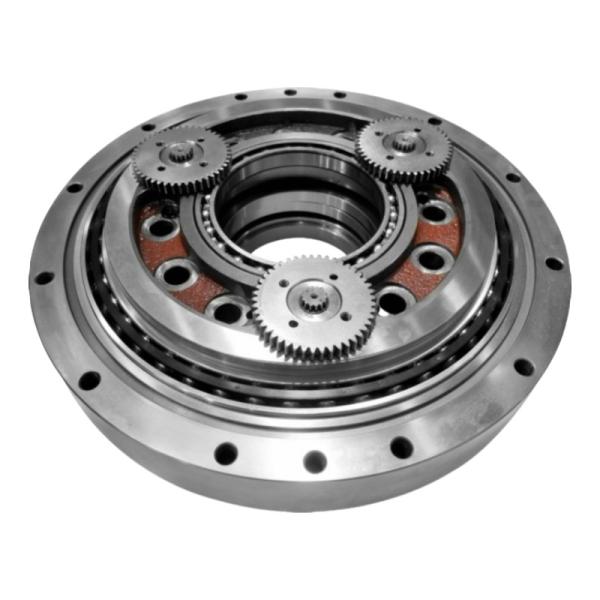

Detailed Images
| Key Attributes of RV - C Series Hollow Shaft RV Reducer | |||
| Product | Hollow Shaft RV Reducer | ||
Material | Steel, Aluminum | ||
Torsional Rigidity | 421 to 24500 Nm/arc.min. | ||
| Output speed (r/min) | 5 to 60 | ||
Backlash | MAX. 1 Arc.min. | ||
Momentary max. allowable torque | 1372 to 78400 Nm | ||
Max allowable output rotation speed | 80 r/min | ||
Model | BX10C, BX27C, BX50C, BX100, BX120C, BX200C, BX320C, BX500C | ||
Weight | 4.6 to 154kg | ||
| Warranty | 1 year | ||
