| Categories | RV-C Series |
|---|---|
| Brand Name: | HONPINE |
| Model Number: | RV - C |
| Certification: | ISO9001 |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1 set |
| Price: | To Be Negotiated |
| Payment Terms: | T/T |
| Supply Ability: | 20000 Sets per Month |
| Delivery Time: | 3-4 Weeks |
| Packaging Details: | Carton Box |
| Product: | Hollow Shaft C Series RV Reducer |
| Material: | Steel, Aluminum |
| Torsional Rigidity: | 421 to 24500 Nm/arc.min. |
| Lost motion: | MAX. 1 Arc.min. |
| Output speed: | 5 to 60 r/min |
| Momentary max. allowable torque: | 1372 to 78400 Nm |
| Max allowable output rotation speed: | 80 r/min |
| Model: | BX10C, BX27C, BX50C, BX100C BX120C, BX200C, BX320C, BX500C |
| Weight: | 4.6 to 154 kg |
| Operation: | Rotation，Engagement，Reduction |
| Warranty: | 1 Year |
RV reducercommonly known as an RV gear, is a type of precision gearbox designed for applications requiring high torque capacity, precision, and durability. It is widely used in robotics, machine tools, and automated manufacturing systems due to its robust construction and minimal backlash.
 | Specification | Output Torque kgf-m(Nm) |
| 10 | 10(98) | |
| 27 | 27(265) | |
| 50 | 50(490) | |
| 100 | 100(980) | |
| 120 | 120(1176) | |
| 200 | 200(1961) | |
| 320 | 320(3136) | |
| 400 | 400(3920) | |
| 500 | 500(4900) |
Parameters table of RV - C series
| Model | Torsional Rigidity Nm/arc.min. | Dimension(mm) | Allowable bending torque (Nm) | Allowable thrust load (N) | Torsional stiffness | Backlash/Lost motion | ||
| a | b | Nm/arc.min. | arc.min | Determining rotational speed (Nm) | ||||
| BX10C | 421 | 28 | 119.2 | 686 | 5880 | 47 | MAX1 | ±2.94 |
| BX27C | 1068 | 38.2 | 150.3 | 980 | 8820 | 147 | ±7.94 | |
| BX50C | 1960 | 50.4 | 187.1 | 1764 | 11760 | 255 | ±14.7 | |
| BX100C | 2813 | 58.7 | 207.6 | 2450 | 13720 | 510 | ±29.4 | |
| BX120C | 2813 | 58.7 | 207.6 | 2450 | 13720 | 510 | ±29.4 | |
| BX200C | 9800 | 76 | 280.4 | 8820 | 19600 | 980 | ±58.8 | |
| BX320C | 12740 | 114.5 | 360.5 | 20580 | 29400 | 1960 | ±94.1 | |
| BX500C | 24500 | 125 | 413.4 | 34300 | 39200 | 3430 | ±147.0 | |

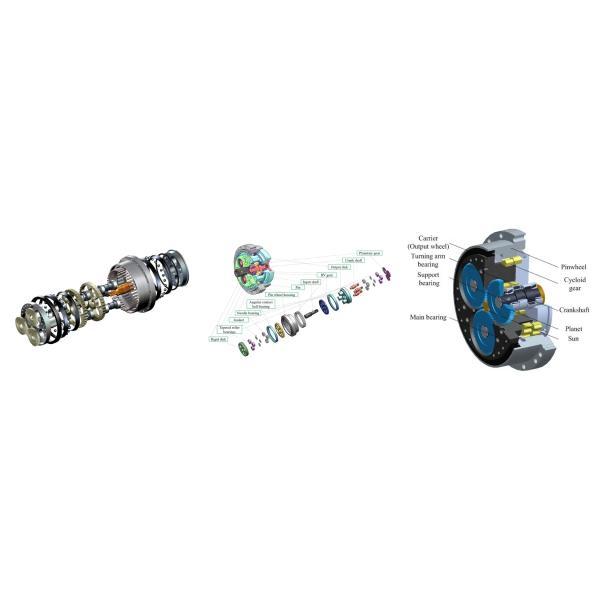

Detailed Images
| Key Attributes of RV - C Series Hollow Shaft RV Reducer | |||
| Product | Hollow Shaft RV Reducer | ||
Material | Steel, Aluminum | ||
Torsional Rigidity | 421 to 24500 Nm/arc.min. | ||
| Output speed (r/min) | 5 to 60 | ||
Backlash | MAX. 1 Arc.min. | ||
Momentary max. allowable torque | 1372 to 78400 Nm | ||
Max allowable output rotation speed | 80 r/min | ||
Model | BX10C, BX27C, BX50C, BX100, BX120C, BX200C, BX320C, BX500C | ||
Weight | 4.6 to 154kg | ||
| Warranty | 1 year | ||
Application
|
