| Categories | Linear Voice Coil Motor |
|---|---|
| Brand Name: | SUPT MOTION |
| Model Number: | VCAB Series |
| Certification: | ISO9001,CE,3C |
| Place of Origin: | China,Suzhou |
| MOQ: | 1PCS |
| Price: | $110-$175 |
| Payment Terms: | T/T |
| Supply Ability: | To be negotiated |
| Delivery Time: | 1-5pcs ,5 days . >20pcs ,To be negotiated |
| Packaging Details: | Customized packaging etc. |
| Warranty: | 3months-1year |
| Product Model: | VCAB0105-0164-00A |
| Weight(g): | 150 |
| Peak Force (N): | 105 |
| Total Stroke (mm): | 16.4 |
| Max Voltage （V）: | 20 |
| Application: | Automatic Product |
| Positioning Accuracy: | High |
| Product Type: | Linear Voice Coil Motor |
| Commutation: | Brush |
| Continuous force(N): | 35.4N |
| Dimensions: | 60.4 mm class |
| Company Info. |
| Suzhou Unite Precision Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

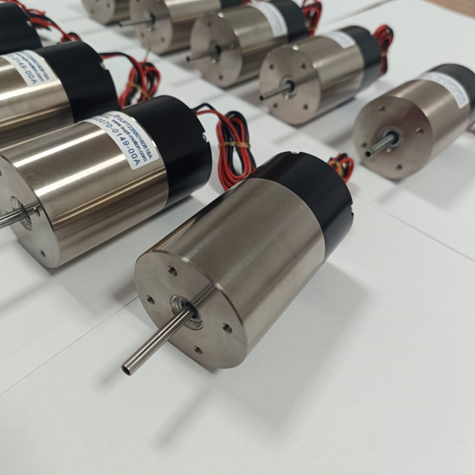

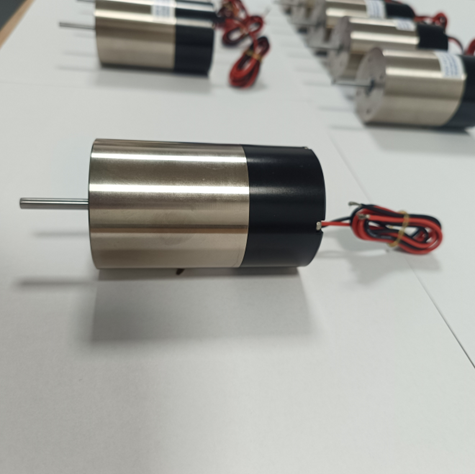

The VCAB0105-0164-00A generates linear force directly through electromagnetic interaction between the coil and permanent magnet.The output force is highly linear with respect to current input.
As industrial automation evolves toward higher precision, higher speed, greater consistency, and intelligent control, traditional motion mechanisms such as lead screws, belts, and gear reducers increasingly fail to meet advanced requirements.
As industrial automation continues to advance toward higher speed, greater precision, and increased intelligence, stricter requirements are placed on execution systems in terms of positioning accuracy, dynamic response, and operational stability. Linear Voice Coil Motors (LVCMs), featuring direct-drive operation and outstanding dynamic performance, are widely used in precision execution tasks across industrial automation.
LVCMs utilize electromagnetic force to directly drive linear motion without mechanical contact, transmission components, or backlash. This enables high repeatability and stable micro-positioning control. In applications such as precision assembly, dispensing, welding, inspection, and calibration, voice coil motors can achieve micrometer-level or even sub-micrometer positioning accuracy, significantly improving process consistency and product yield.
For high-speed and high-frequency operations, linear voice coil motors offer high acceleration and rapid response, allowing precise tracking of control commands and complex motion profiles. Their smooth motion and low vibration help reduce mechanical stress and enhance overall system reliability.
No lead screws, gears, or belts
Zero backlash and transmission error
Fast dynamic response with wide control bandwidth
Easy implementation of position, velocity, and force closed-loop control
| Product Model | Peak Force (N) | Continuous Force at 25℃(N) | Total Stroke (mm) | Max Voltage (V) | Back EMF Constant (V/m/s) | Weight of the coil (g) | Stator Diameter | Shaft end thread (mm) |
| VCAB0005-0039-00A | 5 | 1.5 | 3 | 5.4 | 0.9 | 23 | 29.5 | M2(Outer) |
| VCAB0005-0050-00A | 5 | 2.2 | 3.9 | 14.5 | 3.1 | 27 | 31.5 | M2.5(Outer) |
| VCAB0013-0072-00A | 13 | 4.2 | 7.2 | 26.6 | 5.72 | 16.2 | 26.2 | M3(Outer) |
| VCAB0015-0062-00A | 15 | 6.5 | 6.2 | 26.2 | 9.75 | 14.8 | 33 | M3(Outer) |
| VCAB0015-0127-00A | 15 | 4.9 | 12.7 | 21.5 | 4.1 | 12.5 | 30.5 | Shaft ∮4.8 |
| VCAB0022-0098-00A | 22 | 6.6 | 9.8 | 24.7 | 5.8 | 20 | 34.1 | M3(Outer) |
| VCAB0022-0448-00A | 22 | 11.4 | 44.8 | 14.3 | 4 | 52 | 48 | M3(Inner) |
| VCAB0032-0050-00A | 32 | 8.9 | 5 | 29.3 | 7.1 | 48 | 40 | M3(Inner) |
| VCAB0033-0099-00A | 33 | 8 | 9.9 | 24.3 | 5.87 | 23.5 | 36 | M3(Outer) |
| VCAB0033-0224-00A | 33 | 13.5 | 22.4 | 26.7 | 6.8 | 69 | 58 | M3(Inner) |
| VCAB0035-0105-00A | 35 | 15.6 | 10.5 | 11.9 | 5 | 91 | 50 | M3(Inner) |
| VCAB0044-0040-00A | 44 | 16.3 | 4 | 18.3 | 8.9 | 46.5 | 53 | M3(Inner) |
| VCAB0044-0059-00A | 44.1 | 17.7 | 5.9 | 14.3 | 8 | 43 | 46 | M3(Inner) |
| VCAB0044-0075-00A | 44 | 13.7 | 7.5 | 16.8 | 7.6 | 38.6 | 31.1 | M3(Outer) |
| VCAB0044-0249-00A | 44 | 11.7 | 24.9 | 44.9 | 8.88 | 65.9 | 38.1 | M3(Inner) |
| VCAB0070-0149-00A | 70 | 27.3 | 14.9 | 26.9 | 17.7 | 79 | 43 | M3(Inner) |
| VCAB0087-0062-00A | 87 | 21.67 | 6.2 | 34.5 | 12.7 | 45.2 | 43.1 | M3(Inner) |
| VCAB0087-0563-00A | 87 | 17.5 | 56.3 | 63.4 | 8.1 | 177 | 72 | shaft ∮10 |
| VCAB0088-0191-00A | 88.5 | 23.2 | 19.1 | 29.9 | 8 | 162 | 50.8 | M3(Inner) |
| VCAB0105-0164-00A | 105 | 35.4 | 16.1 | 20.1 | 11.5 | 150 | 60.4 | M3(Inner) |
| VCAB0113-0089-00A | 113 | 35 | 8.9 | 31 | 17.5 | 125 | 73 | shaft ∮8 |
| VCAB0262-0112-00A | 262 | 111 | 11.2 | 35.1 | 41 | 285 | 71 | shaft ∮10 |
| VCAB0262-0249-00A | 262 | 112 | 24.9 | 28.2 | 26 | 785 | 66 | shaft ∮8 |
| VCAB0294-0498-00A | 294 | 56.8 | 49.8 | 114 | 24.5 | 685 | 93 | shaft ∮10 |
| VCAB0436-0187-00A | 436 | 147.6 | 18.7 | 40.7 | 40.7 | 648 | 80.4 | shaft ∮10 |
| VCAB0436-0250-00A | 436 | 167 | 25 | 31.6 | 37.2 | 775 | 78.4 | shaft ∮10 |
| VCAB0445-0300-00A | 445 | 185 | 30 | 33 | 35 | 920 | 76.2 | shaft ∮10 |
|
