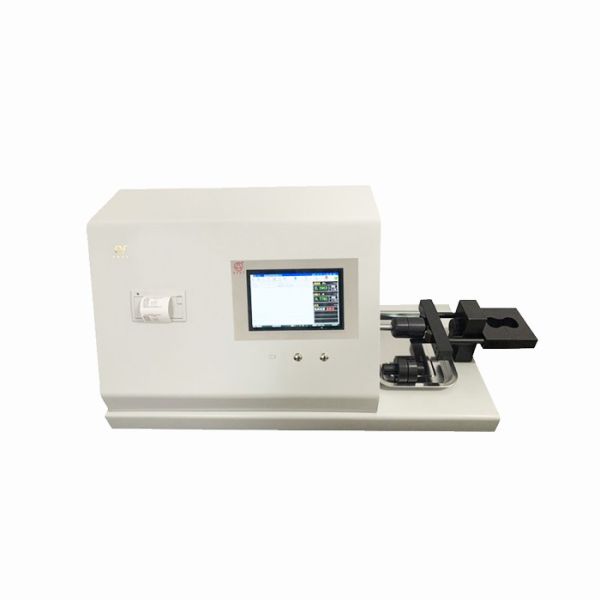

Intelligent sand strength tester with touch screen quick and accurate data analysis QR-XQY-III

Intelligent sand strength tester with touch screen XQY-III

Main performance of the instrument

1. CNC mechanical loading
This instrument adopts a special stepper motor, worm gear reduction mechanism, controlled by a microcomputer, and displayed on a color LCD touch screen to achieve fully automatic and uniform loading, ensuring uniform loading of the sample section. It can automatically complete the entire process of testing, data processing, display of data and curves, storage, and printing. Dynamically display timely data and curves during the analysis process. Store all data and curves during the analysis process, reproduce the measurement data and curves of each sample at any time, and be able to print out test reports; Very convenient for scientific research work. It is a high-precision measuring instrument used in modern scientific research, teaching, and production.
2. Use a displacement adjuster
This instrument adopts a displacement adjuster, which facilitates the placement of test samples and reduces idle time. The application of displacement adjuster not only improves the testing accuracy, but also makes the operation very convenient.
3. High precision
This instrument adopts CNC mechanical loading, which avoids measurement errors caused by changes in hydraulic oil viscosity due to leakage and temperature difference caused by hydraulic loading. Using high-precision S-shaped force sensors and a 64 bit A/D data acquisition system, high-speed data acquisition and calculation are carried out to truly reflect the peak data when the sample is damaged. Further improve the accuracy of the system.
4. Data storage and power failure protection function
This instrument dynamically displays real-time data and curves during the analysis process, and can fully save the collected data in the computer system for further query, printing, and output in the event of shutdown or power outage.
5. Color LCD touch screen Chinese operating system
Both screen display and printing use Chinese characters, keyboard and mouse in combination, with clear color images and interface, clear prompts, simple and convenient operation
6. Password protection function
The system menu displays and prompts password protection function in Chinese, and various functions and parameters of the system can be reset through the password.
7.232, 485, and USB serial ports
Equipped with 232, 485, and USB serial ports, it can be connected to a computer to control the instrument through operation

Specification
Maximum test force 10000N
1. Compressive strength: 0-5Mpa (standard sample Φ 50 * 50), 0-14Mpa (standard sample Φ 30 * 50)
2. Tensile strength: 0-20 Mpa (standard sample waist 22.36 * 22.36), 0-40 Mpa (standard sample waist 22.36 * 11.18)
3. Shear strength: 0-4 Mpa (standard sample Φ 50 * 50), 0-6.5 Mpa (standard sample Φ 30 * 50)
4. Bending strength: 0-200Mpa (standard sample 22.36 * 22.36 * 150), 0-320Mpa (standard sample 22.36 * 11.18 * 60)
5. Indication accuracy: ± 1.5% FS
6. Working voltage: AC 220V ± 10%, 50Hz
7. Operating environment: greenhouse, relative humidity ≤ 90%
