Large Format Optical Mounting Machine — 1μm Accuracy and Cleanroom‑Grade Assembly

Product Introduction

The AC100 fully-automatic mounting & precision dispensing machine is a next-generation inline solution designed for high-precision component mounting and dispensing tasks across module and shell assembly in the advanced electronics industry. With a focus on MEMS, optical devices, holders, reinforcement plates, and prism mounting, the AC100 combines high repeatability with flexibility and full process traceability. It integrates automatic substrate loading/unloading, precision adhesive dispensing, inline glue shape inspection, component pick & place, placement quality detection, and optional pre-curing. By supporting international semiconductor communication protocols and smart factory MES systems, the AC100 aligns with the latest trends in digitalized and unmanned manufacturing.

Problem → Cause → Solution

Problem: Large optical panels and gratings need sub‑millimeter placement accuracy and particle‑free handling; failures cause misalignment, optical loss and rework.
Cause: Manual handling or poorly controlled automated cells let particles enter, create small position errors, and produce inconsistent adhesive or mount application at meter scale.
Solution: Use a closed, clean handling cell with camera‑guided unit, precise multi‑axis positioning and controlled material feed to ensure repeatable placement, clean assembly and reliable optical performance.


Core Modules

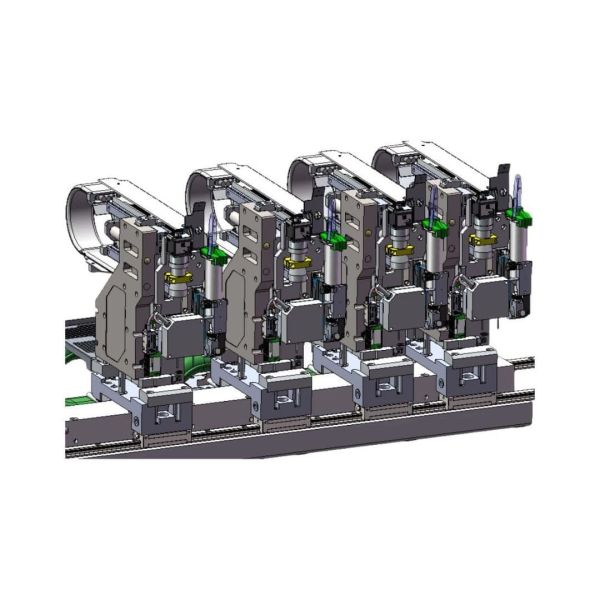

Dispensing Module with linear motor for high-speed precision
Dispensing Module
The linear motor is adopted to achieve high-speed and high-precision dispensing

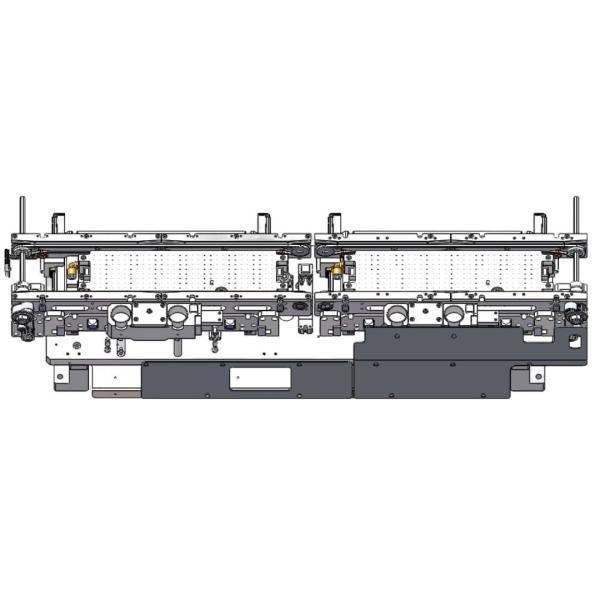

Dispensing Conveyor Module with track lifting for stable conveying
Dispensing Conveyor Module
Track lifting & conveying is adopted to improve the stability of conveying

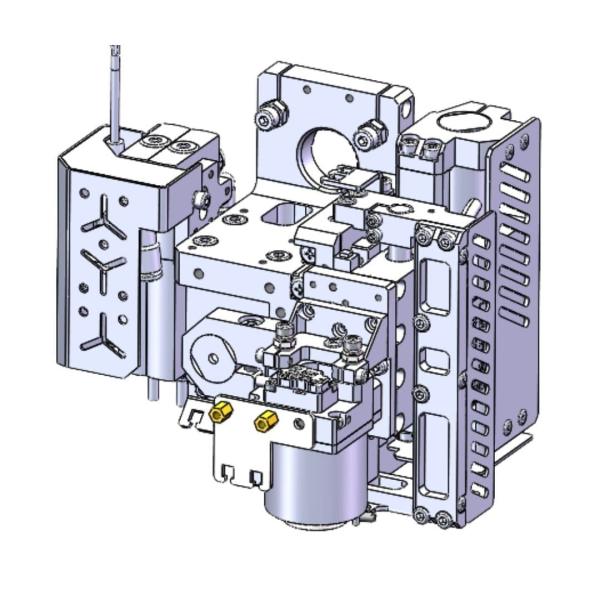

Mounting Head with linear motor and DD motor for precision compensation
Mounting Head
The linear motor + DD motor are adopted to achieve high-precision position compensation and mounting
Tilting Module enabling ±30° dispensing angles
Tilting Module
Dispensing with ±30° tilting can be achieved
Mounting Module with linear motor for high-speed precision
Mounting Module
The linear motor is adopted to achieve high-speed and high-precision mounting

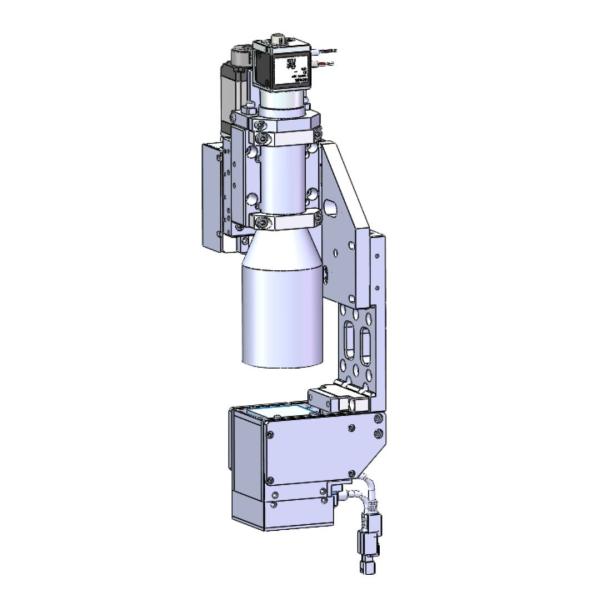

Vision Module with automatic focusing for height recognition
Vision Module
Products within different height ranges can be recognized through automatic focusing

Application

  • Precision grating mounting for optical modules and sensor arrays.
  • Large optical panel assembly requiring cleanroom handling and fine placement.
  • Production transfer from R&D to inline assembly for displays and optical subsystems.

FAQ

Q: What does “1μm grating resolution” mean in practice?
A: It indicates the unit meets the specified optical placement tolerance on 1μm span gratings when measured per the referenced test method. Request the lab report for details.
Q: Is the handling area truly class 10?
A: Yes — the enclosed handling area meets class 10 particle counts when installed with our recommended filtration and gowning procedures. Certification report available on request.
Q: Can it work with heated adhesives?
A: Yes — heated feed sleeve / line option available; we recommend a site sample to confirm optimal temperature and tip size.
