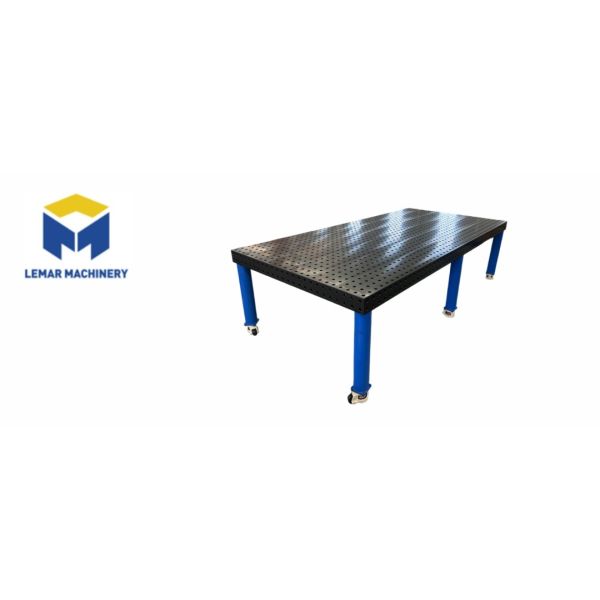

Low Price, High-Quality Modular 3D Welding Table
The Low-Price, High-Quality Modular 3D Welding Table is a
standardized, rapidly reconfigurable welding positioning and
clamping system. Emphasizing low cost, high precision, and
exceptional flexibility, it is widely utilized in metal welding,
mechanical assembly, and quality inspection.
Product Models Comparison
2D Welding Table
- Structure: Flat plate; lacks a 3D positioning hole system
- Hole System: Typically features only T-slots; lacks a grid-hole pattern
- Positioning Method: T-slots + clamping plates; limited to 2D planar clamping
- Flatness: 0.1-0.3 mm/m²
- Load Capacity: 1-5 t
- Accuracy: Low to Medium
3D Welding Table
- Positioning Method: X/Y/Z 3D spatial positioning with quick-pin locking
- Flatness: 0.05-0.1 mm/m²
- Perpendicularity / Parallelism: ≤0.05 mm/m
- Load Capacity: Static 3-10 t, Dynamic 1-5 t
- Accessories: Full range of modular accessories including positioning pins,
angle squares, quick clamps, support feet, V-blocks, etc.
- Expandability: Multiple units can be seamlessly spliced together for infinite
expansion; upgradable for automation
- Changeover Time: 3-10 minutes
3D Welding Table Series

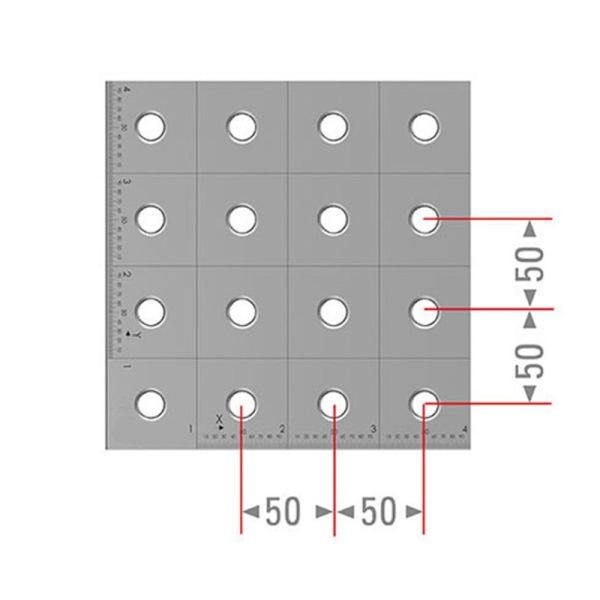

D16 Series (Precision Type)

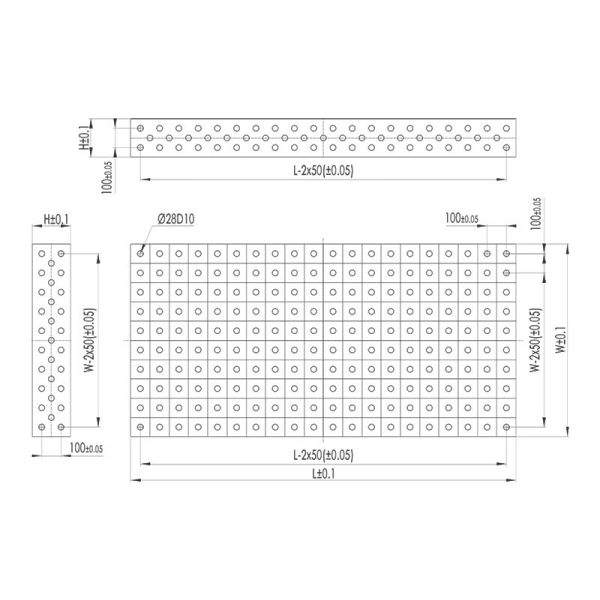

- Hole Diameter: Φ16 mm
- Hole Spacing: 50 mm × 50 mm Standard Grid
- Tabletop Thickness: 14-15 mm (Steel)
- Side Height: 100 mm
- Flatness: 0.05-0.1 mm/m²
- Load Capacity: Static ≤ 2 t, Dynamic ≤ 1 t
- Material: HT250/HT300 Cast Iron, Q355 Steel Plate
- Positioning Accuracy: ±0.05 mm

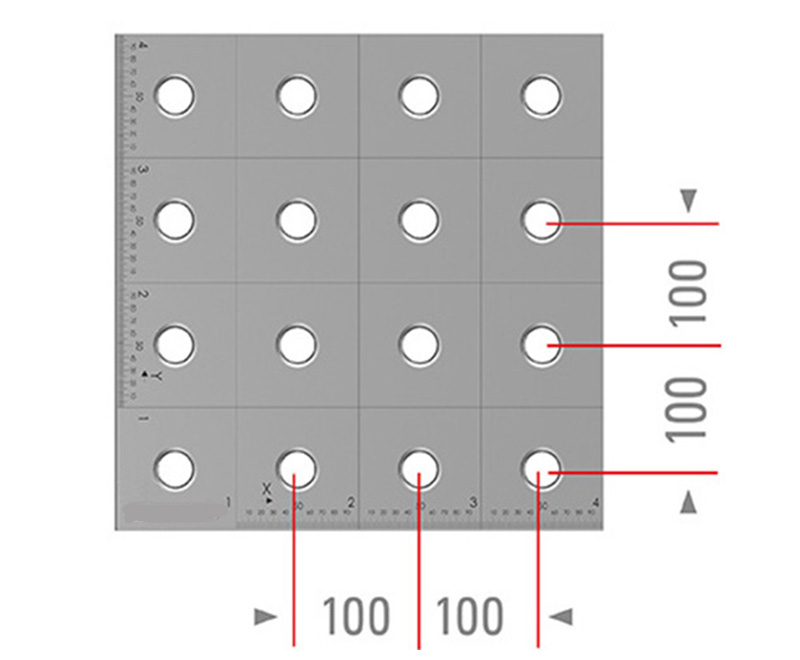

D28 Series (Heavy-Duty)
- Hole Diameter: Φ28 mm
- Hole Spacing: 100 mm × 100 mm Standard Grid
- Tabletop Thickness: 23-25 mm (Steel)
- Side Height: 200 mm
- Flatness: 0.05-0.1 mm/m²
- Load Capacity: Static ≥ 5 t (up to 10 t)
- Material: HT300 Cast Iron, High-Strength Q355 Steel Plate
- Positioning Accuracy: ±0.05 mm
Standard Sizes
| NO. | Product Type | Size (mm) | Height (mm) | Number of Compatible Support Legs |
|---|
| 1 | 3D Steel / Cast iron Welding table | 1000x1000 | 200/150/100 | 4 |
| 2 | 3D Steel / Cast iron Welding table | 1000x1200 | 200/150/100 | 4 |
| 3 | 3D Steel / Cast iron Welding table | 1000x1500 | 200/150/100 | 4 |
| 4 | 3D Steel / Cast iron Welding table | 1000x2000 | 200/150/100 | 4 |
| 5 | 3D Steel / Cast iron Welding table | 1500x1500 | 200/150/100 | 4 |
| 6 | 3D Steel / Cast iron Welding table | 2400x1200 | 200/150/100 | 4 |
| 7 | 3D Steel / Cast iron Welding table | 3000x1500 | 200/150/100 | 4 |
| 8 | 3D Steel / Cast iron Welding table | 4000x2000 | 200/150/100 | 4 |
| 9 | 2D Steel / Cast iron Welding Table | 1000×1000 | 200/150/100 | 4 |
| 10 | 2D Steel / Cast iron Welding Table | 1200×1200 | 200/150/100 | 4 |
| 11 | 2D Steel / Cast iron Welding Table | 1500×1500 | 200/150/100 | 4 |
| 12 | 2D Steel / Cast iron Welding Table | 2000×1000 | 200/150/100 | 4 |
We offer customization services; if you require non-standard
dimensions, please contact us.

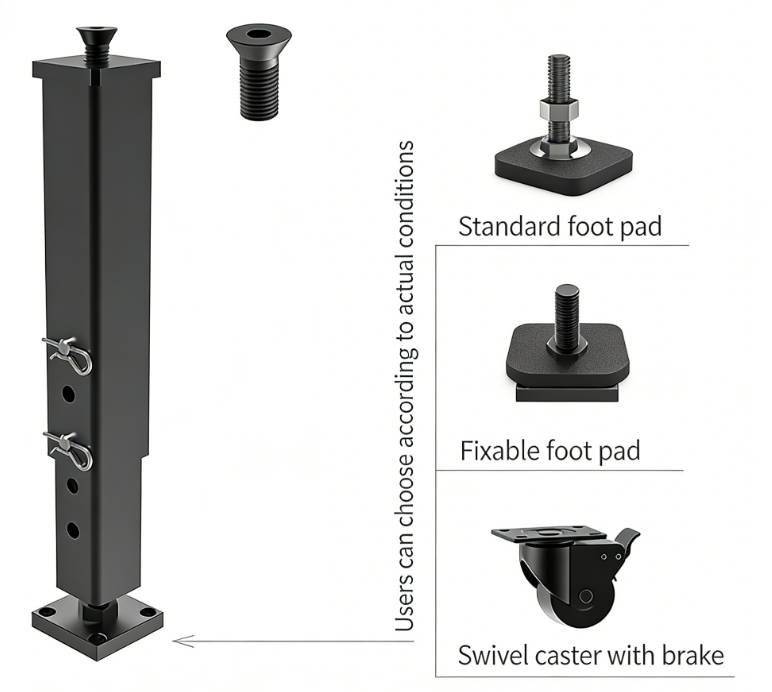

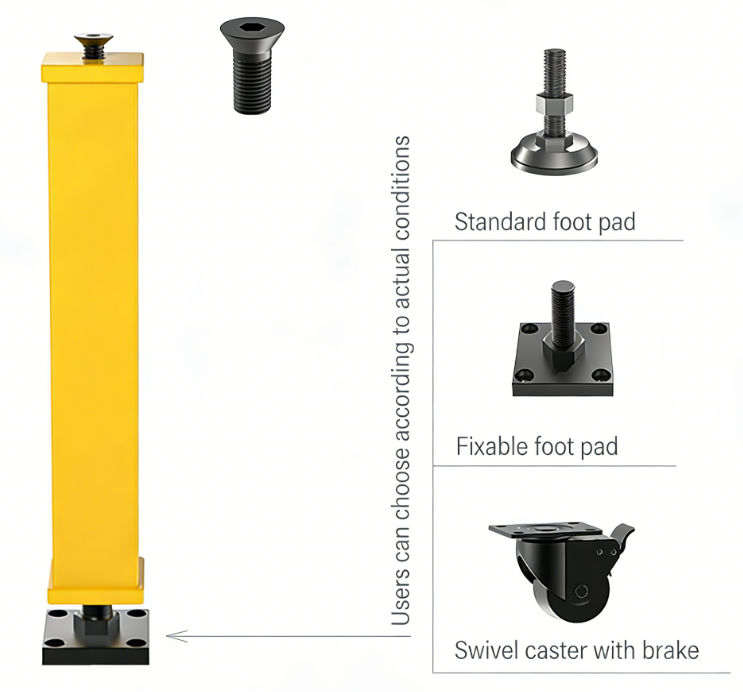

Support Leg Options
We offer customization services. If you require a specific type of
support leg, please contact us.
Core Strengths
- Low Cost + High Value: A single platform replaces multiple dedicated welding fixtures,
eliminating the time and expense associated with custom tooling.
Compared to high-end imported brands, high-quality domestic models
offer a significantly more budget-friendly price point.
- Rapid Changeover: Switching from one workpiece configuration to another typically
takes just a few minutes, and operators can achieve proficiency
after only a brief period of training.
- High-Precision Dimensional Control: 3D positioning accuracy reaches the 0.05mm level, drastically
reducing welding distortion and rework requirements while ensuring
product consistency across large-batch production runs.
- Exceptional Scalability: Supports the modular assembly of multiple units to create
extra-large work surfaces; seamlessly integrates with
pneumatic/hydraulic clamping systems and robotic welding cells;
suitable for both small-batch custom fabrication and large-scale
assembly line operations.
- Clean & Eco-Friendly: Unlike traditional fixtures, the system prevents the accumulation
of welding spatter, making cleanup effortless; components are
reusable, thereby minimizing consumable waste.
Company Profile
Wuxi Lemar Machinery Equipments Co., Ltd. is an intelligent
manufacturing system integrating R&D, design, and production.
Wuxi Lemar Welding Equipments Co., Ltd. is a well-known domestic
enterprise that has produced steel structure equipment, 3D welding
tables, modular welding table kits, and other complete sets of
welding equipment.
Committed to the design and manufacture of various CNC cutting
equipment, steel structure production lines, complete sets of
welding equipment, and coating equipment. Relying on advanced
concepts, excellent technology, and exquisite craftsmanship, the
company has formed a multi-variety and multi-series product
structure.
Our products serve construction machinery, boilers and pressure
vessels, steel structures, wind power and other industries, and are
exported to USA, Canada, Mexico, Poland, Australia, Germany, Italy,
Spain, Russia, Southeast Asia, the Middle East, Brazil, South
Africa, Pakistan, Canada, Greece, India, Vietnam, Belarus, Colombia
and many other countries.
Our company has passed ISO9001 quality system certification, CE
Certificate, and ISO14001 environmental system certification. We
follow the business philosophy of dedication, diligence and
meticulousness, guided by market demand, driven by technological
innovation, capital operation as a means, scientific management as
the cornerstone.
Frequently Asked Questions
What trade terms do you support?
FOB, CIF, CFR, DDP, and other common international trade terms.
What is your warranty policy?
We provide a 12-month warranty for the entire table system.
Can this table be used for robot welding?
Yes, our tables are widely used in automatic robot welding stations due to high stability and repeat positioning accuracy.
How do you package the products?
Standard export plywood cases with anti-collision and moisture-proof protection, suitable for
ocean and land transportation.
Can I combine multiple tables?
Yes, our tables support unlimited side-by-side splicing to build large workstations. All sides have standard connection
holes.
D28 3D Modular Welding Table for Energy Equipment Production
