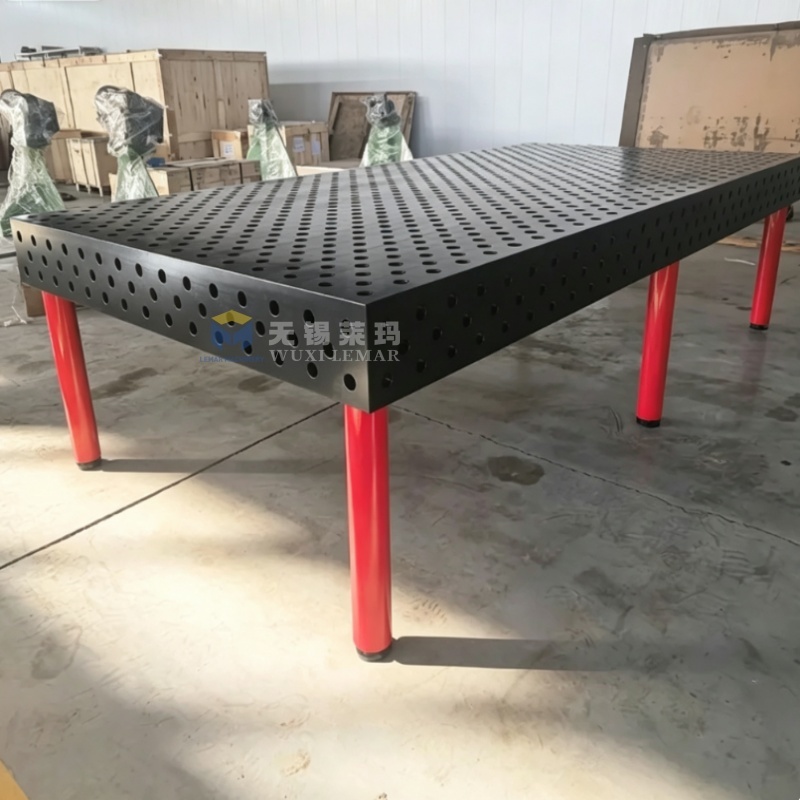

D28 Modular Welding Table with Jigs and Fixtures

Cut down your custom jig costs drastically with our D28 Modular Welding Table with Jigs and Fixtures, the robust 3-dimensional modular clamping solution for heavy welding workshops and robot welding stations.

Featuring five-sided perforated tabletop in D28 Φ28mm H7 hole pattern on 100 mm grid spacing, this all-in-one package comes complete with a full range of jigs and fixtures for multi-angle positioning and secure clamping. Stress-relieved raw material plus deep plasma nitriding ensures long-lasting flatness and anti-spatter performance under heavy-load continuous welding. No more time-consuming dedicated fixture manufacturing. Reconfigure for new parts in 5-15 minutes. Widely applied for truck chassis, heavy-duty steelwork, rail parts and agricultural equipment. All accessories are fully compatible with global D28 modular welding table standards.

• Modular and Flexible: One welding table plus multiple sets of accessories covers a variety of products, replacing the traditional "one product, one set of dedicated tooling," significantly reducing tooling manufacturing costs. Changeover and debugging can be completed in 5-15 minutes.
• Three-Dimensional Five-Sided Clamping: The table surface and four sides have holes, allowing workpieces to be placed flat, upright, or angled. Welding of irregularly shaped parts such as boxes, frames, and chassis is very convenient.
• Stable Precision: Aging stress relief and nitriding processes prevent deformation under long-term welding heat; it can also be used as a testing benchmark platform.
• Heavy-Duty Capacity: The D28 welding table's hole system structure has high strength, suitable for thick steel plates, heavy-duty vehicle frames, construction machinery, rail vehicles, pressure vessels, and robotic automated welding stations.

• Packaging: Wooden frame for the countertop / fumigation-free solid wood export packaging; rust-proof oil treatment for clamps; individual wooden crates; large countertops can be disassembled for packaging to reduce sea freight costs.
• Delivery Time: Standard sizes in stock: 7-15 days; Custom sizes / extra-large modular tables: 15-25 working days.
• Trade Terms: EXW / FOB / CIF / DDP, supporting sea freight and China-Europe freight trains.
• Documents Provided: Commercial invoice, packing list, Measurement Protocol report, material certificate, CE technical documents, ISO9001 certificate.

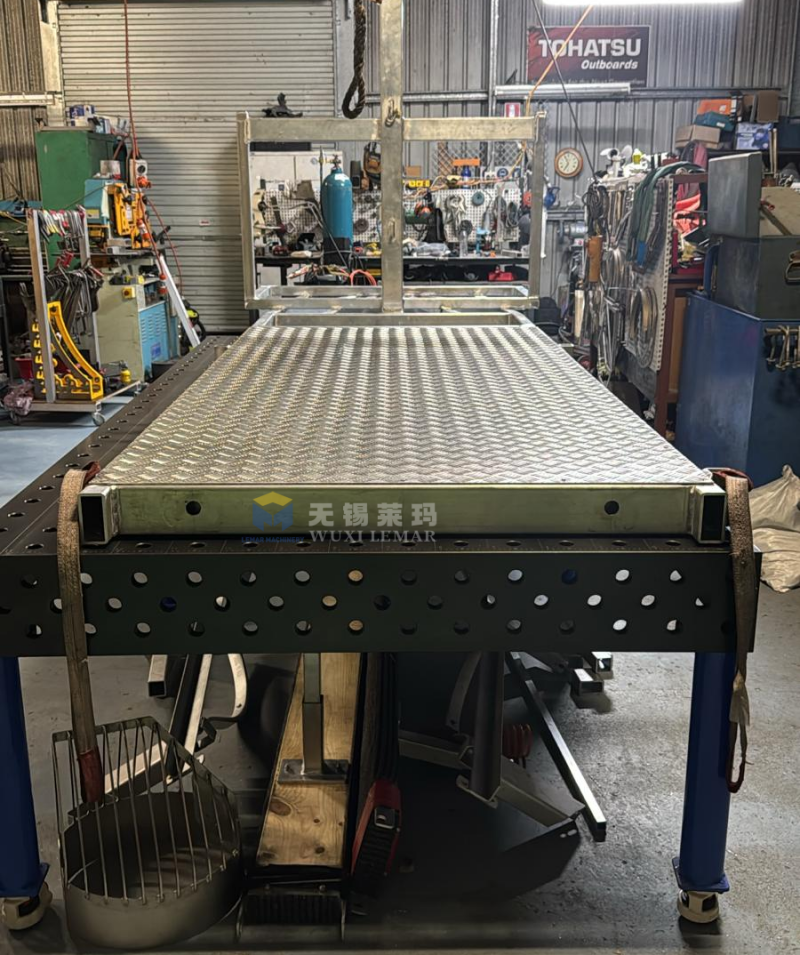

See how our modular welding table performs inside a real-world US fabrication shop, photo directly from our end-customer.

Equipped with complete jigs & fixtures, this 3D welding system handles diverse custom welding projects. Thanks to strict stress-relief treatment and plasma nitriding finish, the tabletop stays dimensionally stable against heat, spatter and heavy workshop use.

Customers often come back to order extra tooling accessories to extend their clamping capability. We support both full-table orders and separate fixture purchases, with direct residential shipping available for end-users.
