CE Certified Heavy Duty Customizable Pallet Rack for Efficient Warehouse Storage

Categories	Pallet Storage Rack
Supply Ability:	2000kg/Month
Type:	Selective Pallet Rack,Drive-In Pallet Rack,Multi-Level,Tire Rack,Post Pallet
Dimensions:	Customizable (Height, Width, Depth)
Features:	Easy to install and reconfigure
Usage:	Warehouse Rack,industrial,Supermarket,warehouse Storage
Place of Origin:	Nanjing Jiangsu China
Brand Name:	Nanjing Peterack
Depth:	1.5-2.5mm,800-1200mm,as Your Request,CAN BE CUSTOMIZED,800mm
Material:	Steel
Structure:	Assemble
Certification:	CE IOS9001
Packaging Details:	Carton packaging; Wooden pallets with wrapping film for bundling
MOQ:	5000 kilograms
Height:	1000-12000mm,4000mm,2000-6500 Mm,2-16m,1200-2500
Delivery Time:	30-45 days
Price:	US $ 0.81 kilograms 5000
Model Number:	Palletrack-1
Payment Terms:	T/T

Contact Now

Add to Cart

Company Info.

Nanjing Peter Logistics Equipment Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

CE Certified Heavy Duty Customizable Pallet Rack for Efficient Warehouse Storage

Heavy Duty Metal Pallet Racking Storage Shelving

Key Specifications

Fork Length	1000mm, 1070mm, 1150MM, 1200mm, 1500mm
Weight Capacity	800/2550/3000kg/layer
Length Of Layers	2500mm
Special Feature	Space saving
Surface Treatment	Galvanized, Electrostatic powder coating
Versatility	Suitable for various storage needs

Product Overview

500–2500 kg Load Capacity per Level｜Engineered for Efficient Warehouse Storage

Constructed from precision roll-formed high-strength alloy steel, this robust rack system ensures lasting durability and reliable performance. Features an innovative self-locking latch mechanism for rapid tool-free assembly—securing beams to columns in seconds, reducing installation time and labor costs by up to 50%. Ideal for organizing medium to heavy palletized goods while maximizing storage density and workflow efficiency.

Height: Customizable
Width: Customizable
Painting: Electrostatic Spray
Finish: Powder Coated
Components: Frames, beams, decks
Advantage: High Storage Efficiency
Type: Pallet Rack
Material: Steel
Features: Durable, Heavy Duty construction

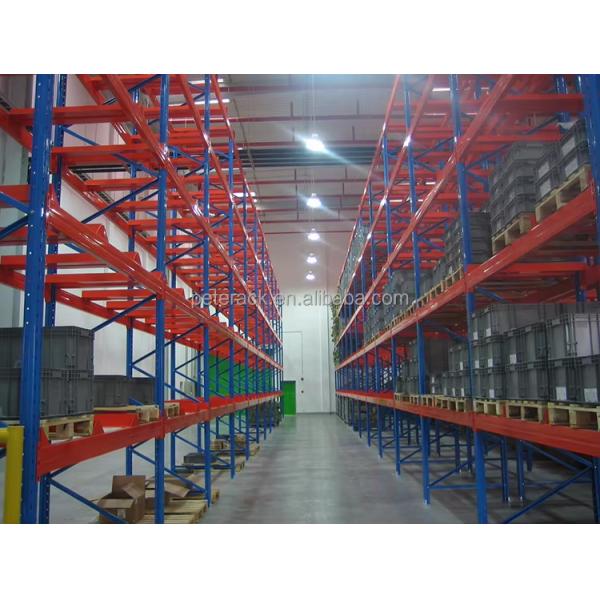

Heavy duty pallet rack in warehouse setting

Detailed Specifications

Detail	Specification
Product Name	Storage Racking
Style	Heavy Duty Pallet Rack
Brand	Peterack
Colour	Blue, white, orange, green, etc.
Place of Product	Jiangsu Province, China
Feature	Corrosion Protection, Easy Assembly
Packing	Export Package
Size	Customizable
Application	Widely used in heavy industries

Upright Parameters

Specification (mm)	Thickness (mm)	Loading (kg)
W80*D60	1.8-2.0	4000-6000
W85*D67	1.8-2.3	7500-12500
W90*D60	1.8-2.5	8000-10000
W90*D70	1.8-2.5	10000-12000
W100*D70	2.0-2.5	11000-14000
W120*95	2.3-3.0	17000-21000

Product Features

Blending extreme durability with modular scalability, it redefines efficiency for modern logistics—supporting everything from robotic cold stores to high-volume terminals—ensuring smooth throughput and reliable performance.

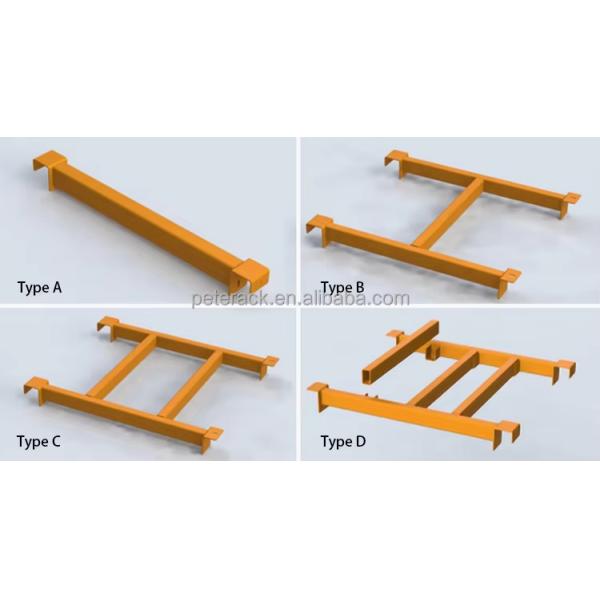

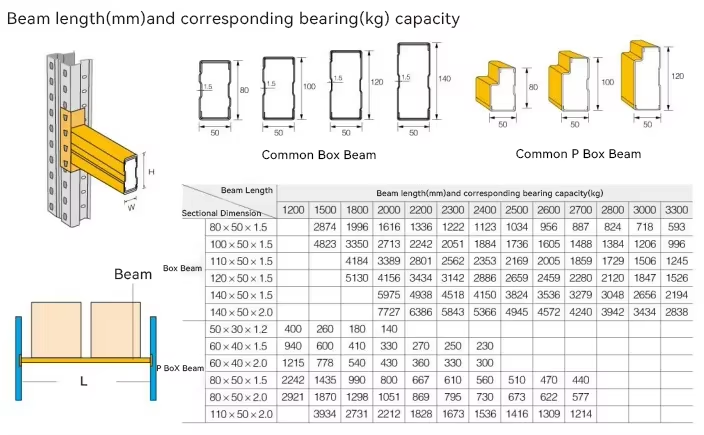

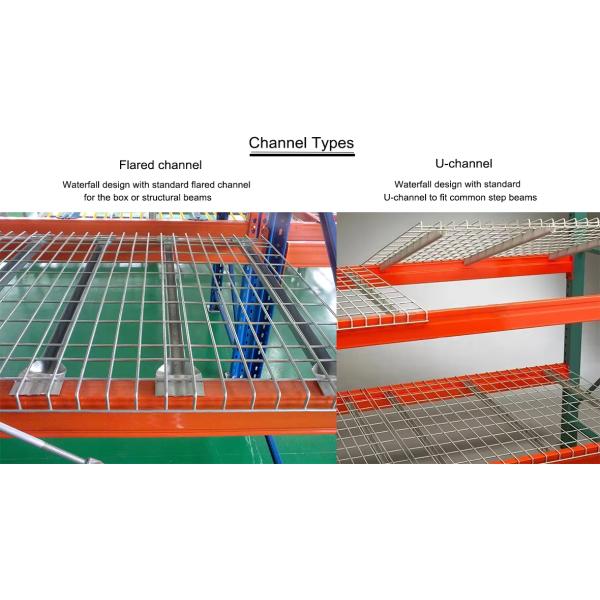

Pallet rack technical diagram Pallet rack assembly illustration Pallet rack in industrial setting Close-up of pallet rack components Pallet rack technical specifications Pallet rack assembly diagram Pallet rack dimensions Pallet rack loading capacity

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are manufacturer. Our factory has been specializing in warehouse racks and different kinds of display stands for 15 years.

Q: Where is your factory located?

A: Our factory is located in Nanjing.

Q: What is your delivery time?

A: In general, within 20 days, but it also depends on the order quantity and shelves design.

Q: What is the trade term?

A: In generally, we will use EXW or FOB. Other terms can be negotiated.

Q: Could you produce according to customers' design?

A: Sure, we have very rich experience in customizing shelves.

Q: Do you produce shelf with different kinds of materials?

A: Yes, our products are mainly made of metal but we also produce accessory shelves or displays with wood, titanium alloy, acrylic, glass, etc.

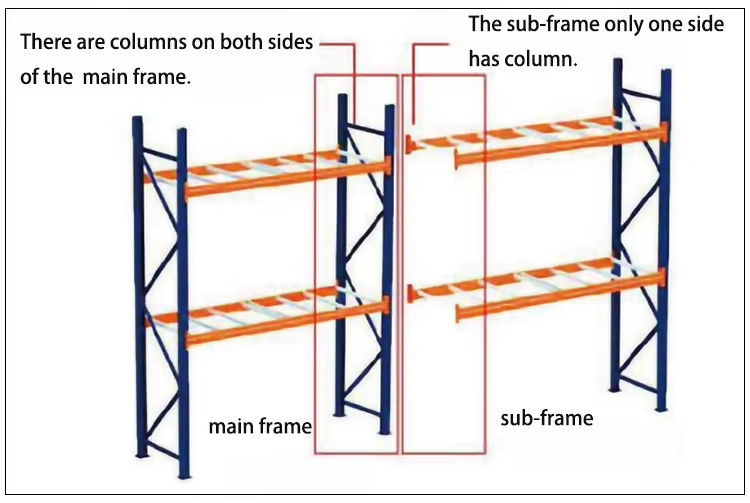

Q: What are main rack and add on rack?

A: The difference between these two kinds of racks is upright. Main rack is the start rack with 2 uprights and add on rack is the continue rack with only 1 upright. For example, if there are 10 wall racks against the wall, the structure will be 1 main rack + 9 add on racks.

Q: What is the manner of packing?

A: Generally, shelves are flat packed by air bubble film/film in standard export cartons. Other packing like wooden box are available to clients' requirement.
