1.5mm-35mm²BVR Automatic Wire Stripper Electric Wire Cutting Stripping Machine

Categories Battery Pack Machine
Brand Name: ACEY
Model Number: ACEY-DG-35XL
Certification: CE
Place of Origin: China
MOQ: 1 Set
Price: USD 3630~3810/Set
Payment Terms: T/T,PayPal,L/C,Western Union,MoneyGram
Supply Ability: 200 Sets/Month
Delivery Time: 7~35 Days
Packaging Details: Plywood Case
Wire Cross-Section: BVR 1.5 - 35mm²
Strip Length: Head: 0-250mm / Tail: 0-120mm
Max Conduit Diameter: φ16mm
Stripping Speed: Up To 1500 Pcs/Hour
Weight: 70kg
Dimensions: 560 * 520 * 450mm
After-sales Service: 24/7 Technical Support
Warranty: 1 Year Warranty with Lifetime Support
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1.5mm-35mm²BVR Automatic Wire Stripper Electric Wire Cutting Stripping Machine

1.5mm-35mm² BVR Automatic Wire Stripper Electric Wire Cutting Stripping Machine


Product Overview

ACEY-DG-35XL is a high-precision, fully automatic cable stripping machine engineered for versatility and demanding industrial applications. From medical sectors to power and communication cables, this machine delivers consistent, damage-free performance.


Product Features
  • Powerful 8-Wheel Drive System: Equipped with dual-side pressure rollers and a sophisticated belt feeding system, ensuring robust pulling power and high precision without damaging the cable surface.
  • Programmable Pressure Control: Clamping pressure for both inlet and outlet rollers is fully configurable via software, eliminating manual adjustments.
  • Automatic Roller Lifting: Intelligent auto-lifting function for outlet rollers during head stripping with programmable lifting height, significantly expanding strip length range.
  • User-Friendly Interface: Operates via 7-inch color touchscreen PLC with intuitive parameters requiring minimal operator training.
  • Advanced Programming & Memory: Supports three-layer stripping processes or multi-stage stripping for longer lengths. Stores up to 100 sets of customized parameters for different wire types.
  • Flexible Expansion: Compatible with optional accessories including wire splitting fixture, slitting fixture, and inkjet printer to adapt to specific production line needs.

Technical Specifications
ModelACEY-DG-35XL
Stripping SpeedUp to 1500 pcs/hour
Wire Cross-SectionBVR 1.5 - 35mm²
Applicable WiresMulti-strand copper wire, coaxial, jacketed cables, etc.
Drive Method8-wheel drive, synchronous belt feeding
Cutting Length0 - 100 meters
Strip Length (Head/Tail)Head: 0-250mm / Tail: 0-120mm
Max Conduit Diameterφ16mm
Min. Remaining Jacket50mm
Cutting Tolerance±(0.002mm * L) (L = Cutting length)
Blade MaterialImported High-Speed Steel
Program Memory100 sets
Control System7-inch Color Touchscreen PLC
Power Supply220V / 50Hz
Rated Power650W
Dimensions560 * 520 * 450mm
WeightApprox. 70kg

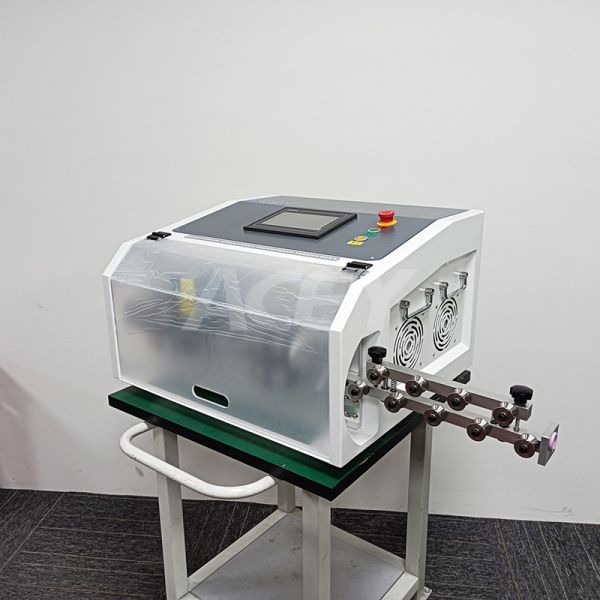

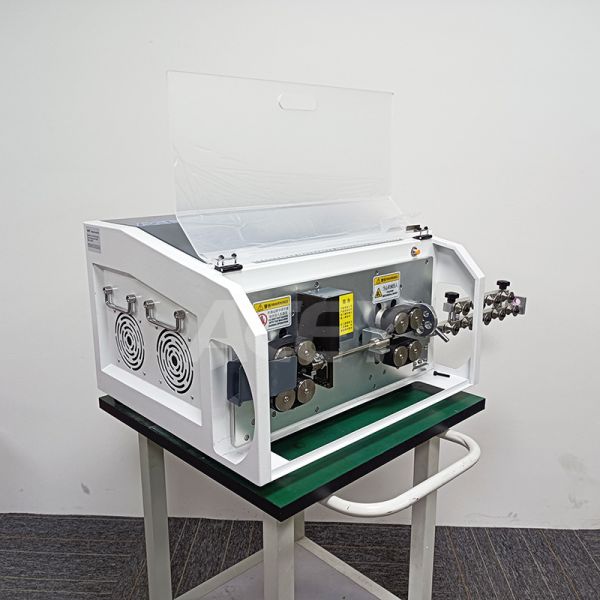

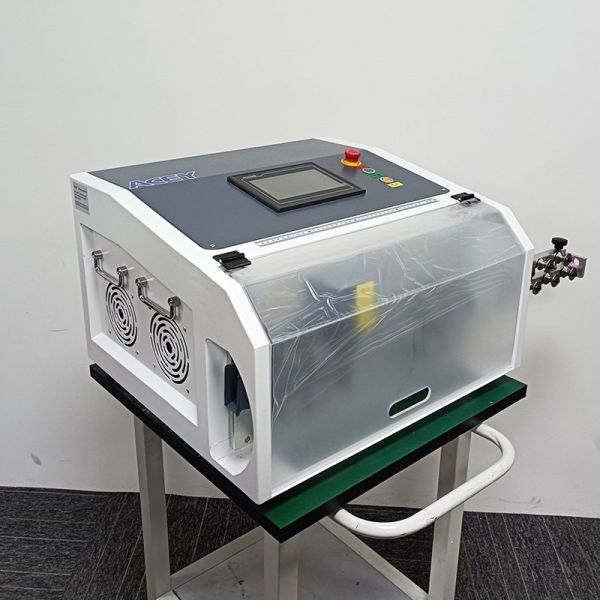

Product Display
