High Precision PTH Through-Hole PCB Assembly X-ray AX7900 Unicomp High Stability

X-Ray Inspection Equipment AX7900

UNICOMP AX7900 is a professional high-resolution micro-focus X-ray NDT testing machine for SMT production, semiconductor packaging and new energy battery quality inspection. Built with proprietary self-developed X-ray source and high-sensitivity digital imaging detector, it clearly visualizes invisible internal defects of electronic devices.

It precisely detects BGA solder voids, interlayer separation of PCB boards, chip bonding defects, lithium battery short-circuit hazards and precision casting internal flaws. Supported by intelligent automatic analysis software, multi-angle dynamic detection and strict radiation safety protection, it greatly improves production quality efficiency and meets strict global industrial quality inspection specifications.

Emission: Extremely low radiation dose adhering to all International Safety Standards.

Environment: New advanced lead curtain pressure membrane technology effectively eliminating secondary lead (Pb) pollution.

Power: Penetration equivalence of up to a 34mm steel plate.

Operation: Intuitive operator interface and media interface for quick learning and optimization of the machine.

Software/Imaging: Robust software platform with intuitive control interface. Clean and crisp image presentation meeting all International Standards.

Traceability: Cutting edge Cloud traceability functions from initial product scan to final customer acceptance ensuring full safety throughout the process.

Support: A full suite of customer support including; remote technical support, direct access to the Cloud, and real time monitoring of machine technical functions/operation.

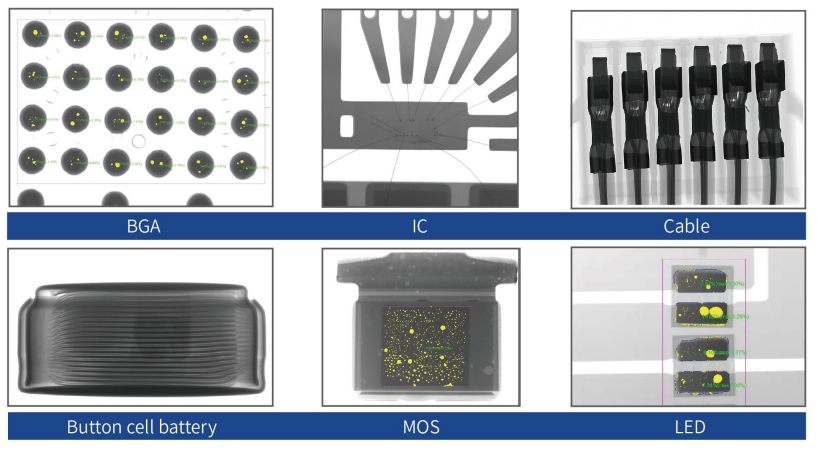

Inspection Images:

X-ray Intelligent Detection System Integrator (Testing Equipment + Industrial Cloud Tracking System)

Shenzhen Unicomp Technology was incorporated in 2002. It is a national-level high-tech enterprise which involved in the R&D and manufacturing of X-ray technology and intelligent detection equipment. Unicomp has become the leading enterprise in world wide X-ray industry. This technology is widely applied in Public Security, EV Lithium battery,SMT PCBA EMS, IC, Semiconductor, Solar Photovoltaic, LED, Connector, Automotive Casting Parts, Wheel, Tires, Pipe welding, Food and Beverage, Pressure vessel industry etc.

Unicomp Technology has a dedicated pool of local and foreign senior professional R&D engineers with extensive experience in high-level science and technology. The company is undertaking major national special project (namely “02” project and “863” project) and X-ray detecting equipment R&D in new fields of application. It also works closely with The Chinese academy of sciences, Tsinghua University, etc. to advance the core technology of X-ray imaging. Presently Unicomp has submitted a total of 432 patents with 319 authorized. Unicomp has obtained numerous management system certifications, such as ISO 9001 quality management system, ISO 14001 environmental management system, OHSAS18001 occupational health & safety management system, as well as ISO27001 information safety management system.

Today, Unicomp Technology has three R&D /Manufacturing sites exceeding 60,000㎡ respectively located at Wuxi/Jiangsu Province, Shenzhen/Guangdong Province, and Chongqing. Our sales and service centers are located all across China including Beijing, Shenyang, Tianjin, Xi'an, Qingdao, Wuhan, Chengdu, Ningbo, Xiamen and etc. The company has also penetrated into the international market with sales and service support in the USA, Canada, Mexico, Brazil, Germany, United Kingdom, France, Italy, Spain, Australia, Hungary, Romania, Russia, Poland, Uzbekistan, South Africa, Morocco, Tunisia, Turkey, UAE, India, Singapore, Malaysia, Thailand, Vietnam, Philippines, Taiwan, Hong Kong. This international connection has helped Unicomp to be recognized as a Global Force in today’s X-ray industry. Today “UNICOMP” is a hallmark brand in the industry both at home and abroad.

Unicomp Technology upholds its Integrity, Deploitation, and Excellence in the business is committed to meeting the highest level of International Standards and promises to be a responsive partner with all of our customers. This philosophy has enabled Unicomp to generated a strong Global customer base of many International Renowned companies including Flextronics, Foxconn, JABIL, Elcoteq, Philips, GM, Bosch, TRW, Delphi, ABB, Continental, Creation technologies, Salcomp, Selcom, Computime, Emerson, LEAR, V.S. Industy, Microtronics, SVI, Toshiba, NEC, Canon, Olympus, OMRON, SANYO, Fujitsu, Honda Lock, Samsung, LG, Amphenol, Littelfuse, Murata, KEMET, ROHM, Hybrionic, Cooper, ELRAD, Sumida, ELDOR, USI, Inventec, AELTA, PRIVAX, LITEON, Sensata, LuXshare, LENS, AAC Technologies, SANGSHIN ELECOM, Hisense, Skyworth, KONKA, TCL, ZTE, CHANGHONG, WINGTEC, DBG, BYD, VIVO, HIKVISION, GOOD-ARK, DESAY SV, CATL, Panasonic, Sony, Boston Power, BAK, GUOXUAN HIGH-TECH, Sunwoda, Coslight, TENPOWER, BMW, Tesla, Audi, CHANGAN, DONGFENG Motor, Honda, EATON, Turkey MMS, SF Express just to name a few.
