Round Shape Alumina Ceramic Disc High Precision High Purity Precision Machining

Categories	Alumina Ceramic Disc
Brand Name:	YH
Model Number:	Ceramic disc
Certification:	ISO,Rohs
Place of Origin:	China
MOQ:	100000
Price:	0.02
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	within 20days
Delivery Time:	5-8 work days
Packaging Details:	plastic bubble case one by one,put into carton box.
Material:	Alumina Ceramic
Type:	Ceramic disc
Application:	Industrial Ceramic,Refractory
Color:	White,Yellow ,brown
Size:	Customers' Requests,Size Customized,0.5mm-95mm,According to your drawing,OEM
Name:	Alumina ceramic disc for tap
Shape:	round shape
Usage:	Industrial Ceramic, tap bathroom ceramic
Using life:	More than 300000 to 500000

Contact Now

Add to Cart

Company Info.

Hunan Yuanhong New Materials Co.,Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Round Shape Alumina Ceramic Disc High Precision High Purity Precision Machining

Alumina Ceramic Disc High Precision High Purity High Temperature Precision Machining Durable 99 Round

Want to lead the market with innovative core components that outperform competitors?

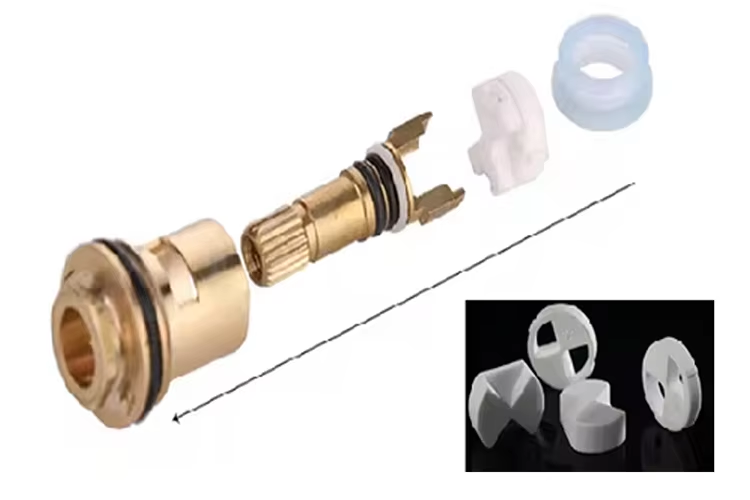

Our Alumina Ceramic Disc for Tap Cartridge adopts advanced nano-modification technology and bionic structure design, redefining the performance ceiling of faucet valve discs.
As a technologically advanced component, it achieves better wear resistance (5x higher than metal), smoother operation (friction coefficient ≤0.05) and stronger sealing (zero leakage under 1.6MPa pressure).
Choose our Alumina Ceramic Disc for Tap Cartridge to gain technological advantages, differentiate your products and become a market leader in faucet quality.
Contact our professional team now to get innovative solutions and competitive quotes—let’s pioneer high-performance faucet technology!

CERAMIC DISC

1.Specification: OD: 11.5mm---32mm. ceramic discs Features:

2.The frictional times is 300, 000 to 500, 000.

3.Corrosion-resistant.

4.Density :3.6~3.7g/cubic centimeter.

5.Satisfy various technical request.

6.OEM ODM Service.

Application

Alumina ceramic discs properties and application:

Alumina ceramic discs properties and application:Properties of the ceramic disc cartrige:

1) resistance to chemical attack and gas-tight

2) pressure resistant and insensitive to attack by chemical cleaning agents

3) major lime deposits forming at high water temperatures will be removed by the ceramic material.

4) Non-corrosive, high abrasion resistant

Other Application of the ceramic disc cartridge:

1) for titrators

2) for refrigerant valves

3) for analyzers and medical apparatus, medical applications

4) for gas and solids proportion-ing equipment.

5) for espresso and coffee machines

6) ceramic seal and regulator discs for diverters

7) for single-handle mixers

8) for two-handle faucets

9) for sanitary technology

10) for special-purpose valves .

Performance For Industrial Ceramic
Item		Unit	95Al2O3	96 Al2O3	99 Al2O3
Physical Characteristics	Heat resistance	℃	1500	1550	1800
	Bulk density	g/cm3	3.6	3.6	3.9
	Water absorption	%	0	0	0
Mechanical Characteristics	Flexural strength	Mpa	320	340	360
	Hardness vickers	Gpa	12.2	13.5	15.6
	Elastic modulus	Gpa	280	320	370
	Poisson’s ratio		0.22	0.23	0.23
Thermal Characteristics	Linear expansion coefficient	(20-500℃) 10-6/℃	7.1	7.2	8
	Thermal conductivity	w/(m.k)	16	24	32
	Specific Heat	10-3J/(kgK)	0.78	0.78	0.9
Electrical Characteristics	Dielectric constant (1MHZ)	-	9	9.4	9.9
	Dielectric loss angle	*10-4	15	5	1
	Dielectric strength	*10⁶V/m	12	15	15

Main advantage of the ceramic disc cartridge:

95%Al2O3 ceramic discs,mailly applicated to temperature modulatory valve,conversion valve,modulatory valve of surf and massagebathtub,

LPG valves,Good hermetical, compressive resistance,flexual resistance,using longevity will be above 500 thousand times.


                  Product packaging

FAQ

Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.

Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.

Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.

Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.

Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
