Cylindrical Battery Positive Negative Electrode CCD Tester

Cylindrical Battery Positive/Negative Electrode CCD Tester

Product Description

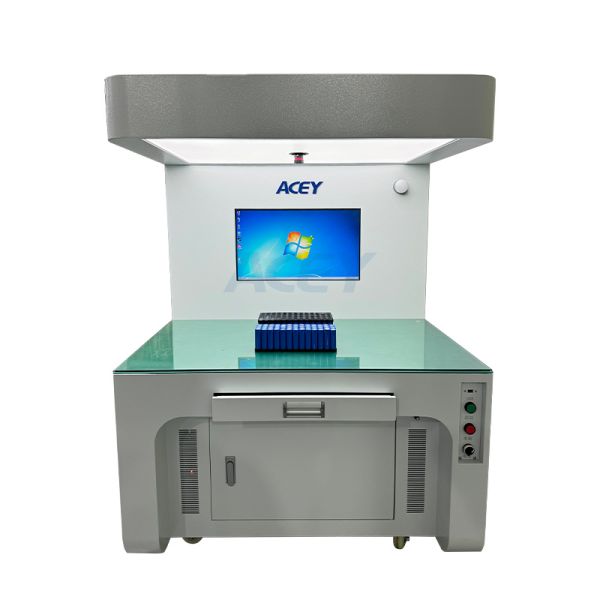

ACEY-CCD01 CCD tester is designed for automatic inspection of the positive and negative electrodes of cylindrical lithium battery cells. Using an industrial camera, the system captures electrode images and compares their quantity and position with reference samples to determine OK or NG results.

NG positions are clearly identified, enabling reliable polarity verification before spot welding and effectively preventing assembly defects caused by incorrect electrode orientation.

Process Flow

Cell loading → Image capture → Polarity inspection → NG judgment → OK output

Main Technical Parameter

Product Display

Acey New Energy is a high-tech enterprise specializing in the research, development, and manufacturing of advanced equipment for the lithium-ion battery industry. Established in 2009, Acey is supported by a professional R&D team and an experienced after-sales service team, each with more than 15 years of industry expertise.

Our business covers the full spectrum of lithium battery manufacturing, from laboratory research and pilot-scale production to battery pack assembly. We provide laboratory-scale fabrication equipment for coin cells, cylindrical cells, and pouch cells, turnkey laboratory and pilot line solutions, battery cell testing equipment, battery pack testing equipment, battery pack assembly equipment, as well as semi-automatic and fully automatic battery pack assembly line solutions for cylindrical, prismatic, and polymer battery packs.

Over the years, Acey New Energy has cooperated with universities, research institutes, and battery manufacturers worldwide, delivering over 300 customized solutions for laboratory research, pilot production, and battery pack manufacturing. Our equipment has been successfully exported to more than 40 countries and regions, including the United States, Canada, the United Kingdom, Germany, France, Spain, Italy, Turkey, Japan, South Korea, India, Pakistan, Iran, Indonesia, and South Africa.

With highly reliable and precise equipment, combined with a customer-first service philosophy, Acey New Energy has earned a strong reputation in the international market and become a trusted partner for many leading battery manufacturers.

Moving forward, we remain committed to continuous innovation and customized solutions, focusing on the lithium-ion battery industry and striving to become a globally leading battery equipment manufacturer. We sincerely welcome customers from around the world and look forward to building long-term partnerships for a more sustainable energy future.
