Drone siganl detector module FPV DIY Drone detection module

Product Specifications

Product Introduction

The RF signal recognition module is a highly integrated airspace signal processing hardware. It integrates independent RF receiving units, local computing chips and embedded command control systems, built on mature CRPC signal analysis technology.
The hardware can capture and distinguish unique radio fingerprint features of mainstream consumer aircraft brands and self-assembled flying devices. Standard reserved interfaces greatly lower secondary development difficulty, delivering flexible hardware solutions for all kinds of low-altitude airspace safety hardware products. The whole unit only receives ambient electromagnetic signals without signal emission, suitable for long-term stable outdoor deployment in industrial parks, campuses, logistic yards and residential compounds.

Product Feature

Passive Detection: Passively receives only and does not emit any electromagnetic signals.

Accurate Identification: It precisely identifies the electronic fingerprint ID of drones.

Black and White List: Alerts are implemented for blacklisted (non-cooperative) drones, while alerts for whitelisted (cooperative) ones are suppressed.

Built-in Computing Unit: Features a high-performance computing unit, eliminating the need for additional configuration.

Extended Interoperability: Supports the joint debugging and integration of radio jammers, radars, electro-optical devices, and other equipment to expand functionality.

API Interface: Provides standardized API documentation to meet software platform integration requirements

Product Funtion

1. Spectrum Module: Detects the entire frequency band (300-6GHz), with a range of 3km (using an omnidirectional antenna, mounted antenna).

1) Two antenna interfaces on the spectrum module: RX1, RX2

RX1: Primarily for 2.4GHz and 5.8GHz antennas

RX2: Full-band antenna

One possibility is that initially, the RX1 interface will detect the entire frequency band; RX2 can only be activated via command.

A corresponding command needs to be entered to fix the detection frequency band for both RX1 and RX2 interfaces.

2) Two other interfaces on the spectrum module: Power interface, Computer interface

Low-Noise Amplifier (LNA): Primarily used to enhance the detection signal (for 2.4GHz/5.8GHz) -- Optional

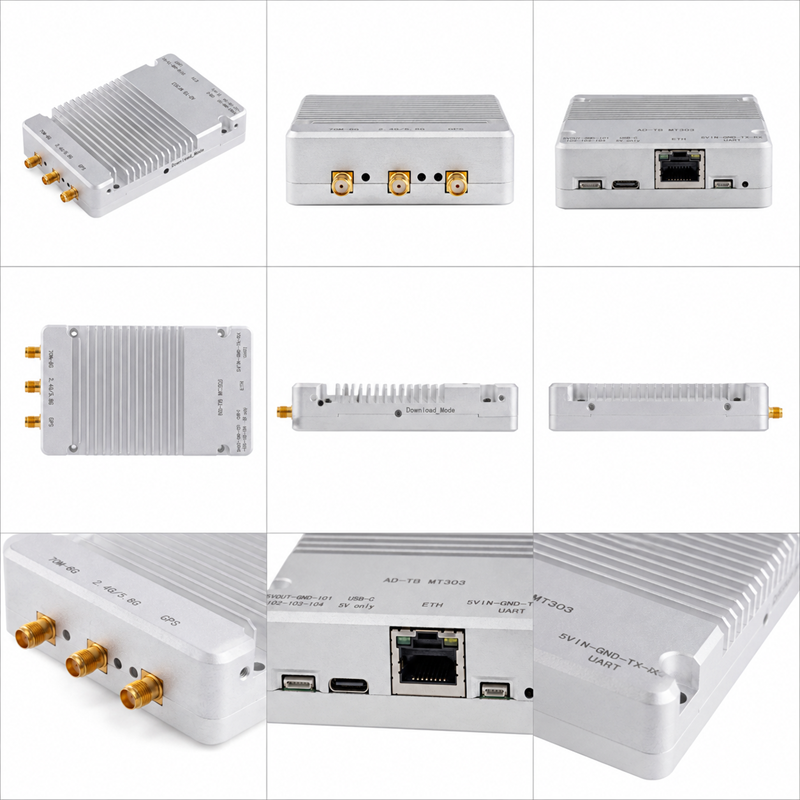

Product Details

Product Advantage

Real-Time Drone Detection – Instantly identifies and tracks drones broadcasting Remote ID signals, providing crucial flight details. UAS Sentry automatically captures this data and sends immediate alerts to connected devices, ensuring rapid situational awareness for any security or monitoring application.

Real-Time Alerts & Tracking – Whenever a drone enters your defined airspace, sends immediate notifications to designated devices. The platform’s live map interface provides comprehensive visibility of drone location, pilot coordinates, heading, and speed. All data is securely stored for later review, aiding in detailed post-event analysis and ongoing airspace management.

Flexible Configuration: Easily configure your system using an iOS app or the online portal.
Drone & Operator Identification: Precisely identifies drone and operator locations.
Comprehensive Flight Data: Monitors altitude, heading, speed, Remote ID, and more.
Versatile Mounting Options: Install on a pole, tripod, or fixed structure with included hardware.Cloud Storage Integration: Secure cloud connection with built-in storage for data access and analysis.
Rugged Construction: Housed in an IP67-rated, water-resistant metal case.
