Customized Precision Lancet Tip Piercing Injection Needle For Liquid Delivery

Categories Small-diameter Tube Processing
Model Number: OEM
Price: 1-20USD
Outer Diameter: 0.3 mm – 5.0 mm
Certification: ISO13485
MOQ: 10pcs
Delivery Time: 5-20days Or According To Quantity
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Length: Customized
OEM Service: Available
Wall Thickness: 0.05 mm – 0.5 mm
Place of Origin: CN
Supply Ability: 100000pcs/ month
Material: SUS304/SUS316 Stainless Steel
Packaging Details: Polybag, Carton, Wooden case or According to your request
Brand Name: SHOMEA
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

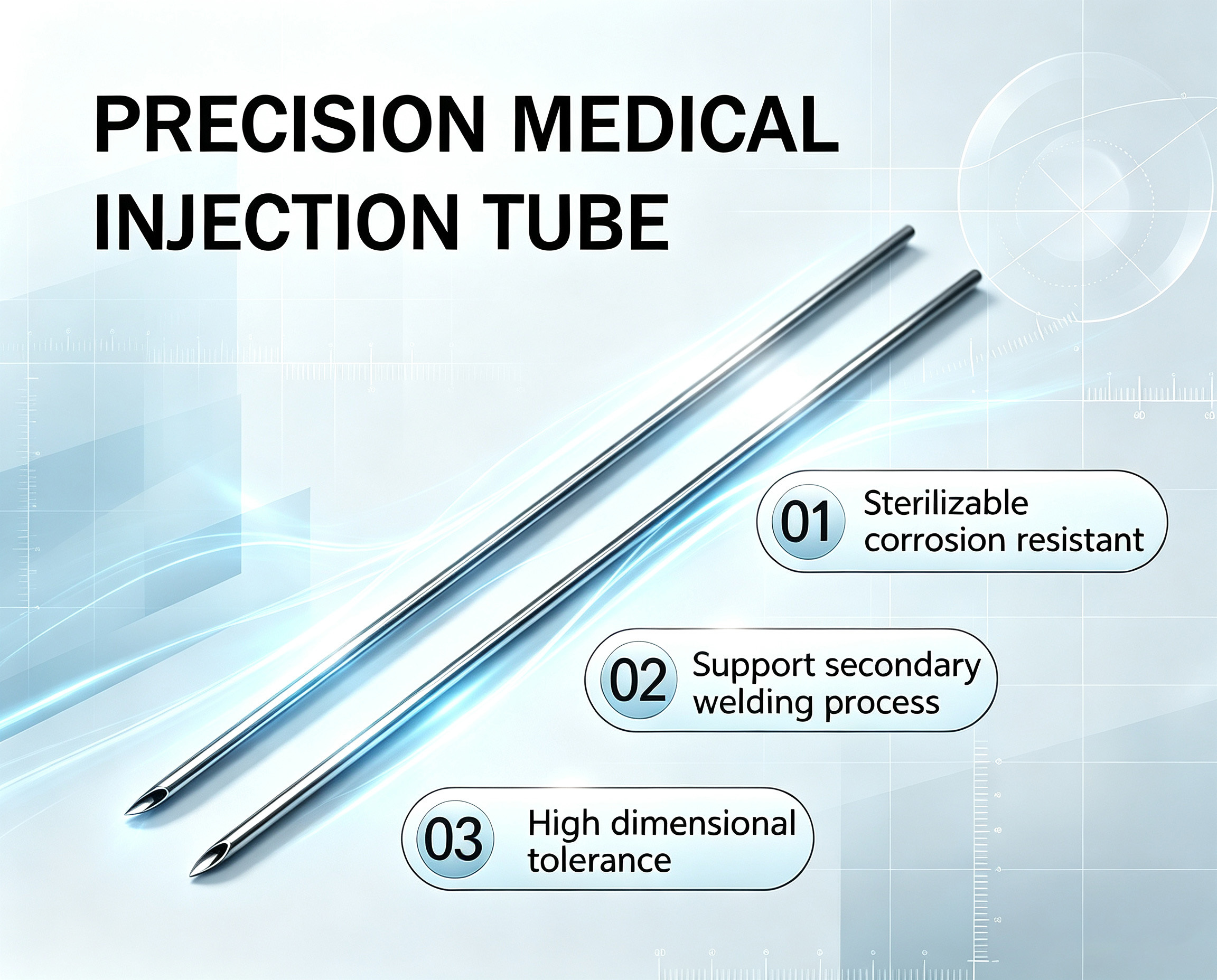

Customized Precision Lancet Tip Piercing Injection Needle For Liquid Delivery

Customized Precision Lancet Tip Piercing Injection Needle For Liquid Delivery

Products NameCustomized Precision Lancet Tip Piercing Injection Needle For Liquid Delivery
MaterialStainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatmentElectropolishing, Smooth Deburred Surface
Tube Outer Diameter0.3 mm – 5.0 mm
Tube wall Thickness00.3 mm – 5.0 mm
Bending PerformanceMulti-direction flexible bending, 360° bendable
Tolerance±0.05mm High Precision Tolerance or According to Drawing
SizeCustom length & segment structure available
LOGOCan be customized according to your drawing
SamplesUsually provide 5-10pcs samples for testing before mass production
Delivery Timeusually 5-25days or according to quantity


Specification:
  • Adopt precision lancet bevel forming process, standard tolerance up to ±0.02mm, sharp and smooth cutting edge to reduce penetration resistance during injection operation.
  • Complete deburring treatment on bevel and inner hole, no residual burrs, avoid particle contamination in liquid transfer.
  • Premium stainless steel material with good corrosion resistance, suitable for liquid injection and sampling applications.
  • Outer diameter, inner diameter, overall length and lancet bevel angle can be fully customized according to customer drawings or samples.
  • Strict dimensional and appearance inspection for each batch, stable batch consistency, meet mass production matching requirements.
FAQ:
Q1: What stainless steel grades are available for this lancet tip injection needle?
A1: We mainly supply 304 and 316L stainless steel. Select 316L if the needle contacts liquid reagent for better corrosion resistance.

Q2: What surface finish is used for this lancet tip injection needle?
A2: We apply standard surface finish Ra0.8-1.0μm for this product. If you have special high polishing requirements, please inform us in advance for separate process evaluation and quotation.

Q3: Can we adjust the lancet bevel angle and tip sharpness?
A3: Yes, the bevel angle, tip shape and sharpness are fully customizable within our processing capacity under ±0.02mm tolerance. Please provide technical requirements or reference samples for confirmation.

Q4: How do you control burrs on the lancet cutting edge?
A4: After bevel cutting, multi-step deburring and cleaning processes are carried out. Each finished needle will be inspected to remove micro-burrs, preventing particle impurities in practical use.

Q5: Do you offer sample service for lancet tip injection needle? What should we confirm before sample production?
A5: Custom samples are available for piercing performance testing. Before sample order, we need to confirm material grade, dimension parameters, bevel angle and surface finish requirement. Sample cost depends on processing complexity, mass production can start after sample specification confirmation.
