| Categories | Closed Loop Stepper Motor |
|---|---|
| MOQ: | 5~10 pcs |
| Product Name: | Closed Loop Stepper Motor |
| Step Angle: | 1.8° |
| Driver: | HBS57 |
| Brand Name: | CKun |
| Delivery Time: | 3~4 weeks |
| Rated Voltage: | 20~80 VDC |
| Price: | USD / pcs |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Number Of Phases: | 2 |
| Place of Origin: | China |
| Place Of Origin: | China |
| Model Number: | BLD-750 |
| Supply Ability: | 5000 pcs per month |
| Step Accuracy: | ± 5% |
| Company Info. |
| Changzhou Changkun Electric Drive Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
We are an innovative motor supplier providing high-quality, high-performance closed loop stepper motors, with applications in CNC machines, 3D printers, automation equipment, packaging machinery, textile equipment, and medical devices.

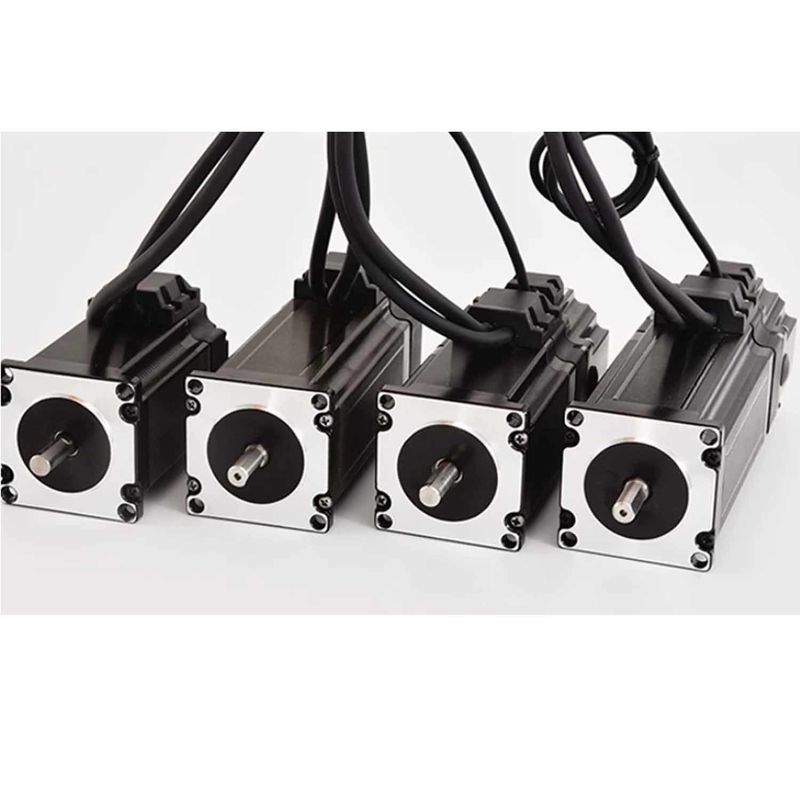

Our NEMA 23 closed loop stepper motor integrates an encoder and driver into a compact system, delivering high torque, smooth operation, and zero step loss. We offer a wide range of closed loop stepper motor products to meet the design requirements of various mechanical systems across diverse applications, and custom solutions can also be developed upon request.
Please contact us to request a quote, view products, or check order status.
Applications of NEMA 23 Closed Loop Stepper Motor:
NEMA 23 closed loop stepper motors are widely used in various industrial automation and precision motion control applications:
General Specification of NEMA 23 Closed Loop Stepper Motor:
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃ max |
| Ambient Temperature | -20℃ ~ +50℃ |
| Insulation Resistance | 100 MΩ Min., 500VDC |
| Dielectric Strength | 500VAC for 1 minute |
| Shaft Radial Play | 0.02 Max. (450g load) |
| Shaft Axial Play | 0.08 Max. (450g load) |
| Max. Radial Force | 75N (20mm from the flange) |
| Max. Axial Force | 15N |
Electrical Specifications of NEMA 23 Closed Loop Stepper Motor:
| Model No. | Step Angle (°) | Motor Length (mm) | Current /Phase (A) | Resistance /Phase (Ω) | Inductance /Phase (mH) | Holding Torque (N.m) | # of Leads | Detent Torque (g.cm) | Rotor Inertia (g.cm) | Mass (Kg) |
| 57HBJ41-0.35M | 1.8 | 41 | 4.2 | 0.3 | 0.7 | 0.55 | 4 | 250 | 150 | 0.65 |
| 57HBJ56-0.35M | 1.8 | 56 | 4.2 | 0.4 | 1.2 | 1.1 | 4 | 350 | 280 | 0.98 |
| 57HBJ76-0.35M | 1.8 | 76 | 4.2 | 0.6 | 1.8 | 1.8 | 4 | 600 | 440 | 1.1 |
| 57HBJ82-0.35M | 1.8 | 82 | 4.2 | 0.7 | 2.5 | 2.2 | 4 | 1000 | 600 | 1.2 |
| 57HBJ112-0.35M | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 3.1 | 4 | 1200 | 800 | 1.4 |
Note: We can also manufacture products according to customer's requirements.
Matched Driver: JK-HSD57 Closed Loop Stepper Driver
2-phase closed loop stepper motor system matches driver model: JK-HSD57, supporting step and direction control.
Q: What's your main products?
A: We currently produce Stepper motors, Closed Loop Stepper Motors,
Brushless DC Motors, Brushed DC Motors, Spindle motors, AC Motors
and drivers etc. You can check the specifications for above motors
on our website and you can email us to recommend needed motors per
your specification too.
Q: How to select a suitable motor?
A: If you have motor pictures or drawings to show us, or you have
detailed specs like voltage, speed, torque, motor size, working
mode of the motor, needed life time and noise level etc, please do
not hesitate to let us know, then we can recommend suitable motor
per your request accordingly.
Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials,
we have signed sample and drawing to make sure qualified incoming
materials; for production process, we have tour inspection in the
process and final inspection to make sure qualified products before
shipping.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-25
days, a bit longer for customized products. But we are very
flexible on the lead time, it will depend on the specific orders.
Q: What's your minimum order quantity?
A: Our minimum order quantity depends on different motor models,
please email us to check. Also, we usually do not accept personal
use motor orders.
Q: What's your shipping method for motors?
A: For samples and packages less than 100kg, we usually suggest
express shipping; For heavy packages, we usually suggest air
shipping or sea shipping. But it all depends on our customers'
needs.
|
