Multi Function Automatic Packaging Line 1 - 80 Pcs/Min Label Packaging Machine ±1mm Precision

Multi-Function , Unmanned Operation Automatic Label Packaging Line Rock Wool Insulation Layer

Basic Use:

It is mainly applicable to the whole or single package of OPP sealing tape, stationery tape, masking tape, etc.

Main technical parameters:

Name/Model	ZRB-500G	DRS-5025POF
Applicable Range (D×H)	Ø(40-160)* H(40-350)MM
Heat Shrink Tunnel Dimension		1500450250mm
Packing speed	28 pcs/min	20-40 /min
Power supply	Single-phase AC200-240V, 450W	13KW
Air supply pressure	6KG
Net weight	300KG	230KG
SIZE	3150(L)2800(W)1780(H)	18009001120mm
Packing film	POF

Model	ZRT-400A
Applicable product diameter*height	Ø(45-150)* W(40-400)MM
Applicable label range	Applicable Label Length 10-260mm Applicable Label Liner Width 10-150mm (customized label pressing belt available for special widths)
Maximum Label Supply	Max. Label Roll OD ≤300mm Label Roll Core ID 76mm
Labeling speed/min	1-80 PCS/MIN(subject to product and label dimensions)
Labeling accuracy	±1mm(excluding tolerance from product and label itself)
Voltage and Power	Single-Phase AC200-240V,50-60HZ 4KW
Machine size	1860(L)1840(W)1130(H)
Weight	300kg

Configuration parameters:

Model	ZRB-500G	DRS-5025POF
frequency converter		cost
touch screen	Mcgstpc
speed motor		Zhan Peng
Three phase asynchronous fan		Yunchi
Phase failure and phase sequence protector		chint
PLC	San J IE lI CHSJL
DC Motor	ing
air switch	chint	chint
Switching Mode Power Supply	Mingwei
Contactor	Schneider	chint
relay	IDEC	chint
Button switch	Kndele	heli
thermostat		Beimei
Solenoid valve	China STNC
filter	China STNC
Cylinder	STAR	STAR
electric machinery	sanly	Zhan Peng
governor	sanly
Photoelectric sensor	Taiwan Yangming
proximity switch	CNTD
Bearing	NSK HRB	HRB
Pneumatic joint	EASUN	China STNC
High temperature adhesive tape	JAPAN NITTO
Heating Tunb		1.8KW Metal ring
Insulation layer		Made of high-temperature resistant rock wool

Model	ZRT-400A
touch screen	昆仑通态
Labeling servo	HCFA
Labeled driver	HCFA
Drum line servo	HCFA
Drum line driver	HCFA
Waste collection brushless DC motor	MAIL I
Translational constant speed motor	MAIL I
Paddle speed motor	MAIL I
governor	MAIL I
Front conveyor rail assembly	custom
Rear transfer rail assembly	custom
Front labeling slide assembly	custom
Product sensor	BOJKE
label sensor	BOJKE
Magnetic Particle clutch	YOSEEN
Magnetic Particle brake	YOSEEN
Planetary reducer	SIMAIT
power switch button	KENAIDA
Switching Mode Power Supply	Mingwei
bearing	NSK HRB

Equipment Advantages:

lmpulse type cold-sealing cutter ensuring smooth edge free from per-heating,which is more convenient to use and emerging saving.Cutting edge of 500mm in effective width.
The width and diameter can be adjusted by DC motor, with precise positioning, convenient and fast, and suitable for packaging products of different widths.
One machine can be used for multiple purposes. Products with a width of 40-350mm can be packaged either individually or in multiple packages. The specification can be adjusted by one button without manual operation.
The packing speed can reach 28 drums/minute.
Steel structure for the entire machine,stable and solid.
Automatic material feeding into the production line.Production line and body mounted separately,more convenient for transportation
Discharging in a fixed position without worry about loose packaging
Storage structure for more stable film feeding without deviation
Separation structure ensuring more smooth material pushing despite of the adhesion of sealing tapes
It can be connected to the rear of the full automatic slitting machine and manual slitting machine to realize the unmanned operation in the middle.
The insulation layer of the intelligent visual variable frequency heat shrink machine heating system is made of high-temperature resistant rock wool, which has a low surface temperature during operation and reduces heat loss. The heating tube is made of stainless steel heating tube, with a long service life.
The air transportation system is specially designed with an air duct circulation system, which ensures even heating of the product. With dual high-power imported air transportation motors, the air volume inside the contraction furnace is large and uniform, and the wind force can be adjusted.
The outer plate of the heat shrinking machine is made of ordinary carbon steel plate, which is bent and sprayed with plastic on the surface. The inner plate is made of galvanized steel plate by hydraulic pressure.

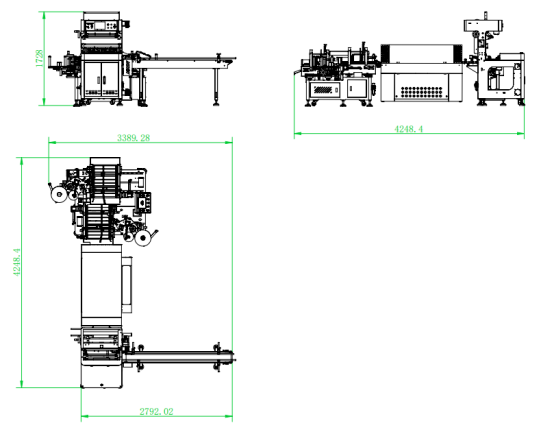

Equipment Layout:
