Four Station Automatic Packaging Line High Speed Packing Machine For Tape

Categories Automatic Packaging Line
Place of Origin: CHINA
Model Combination: ZRP-4585+ZR1000+ZRB-500T+ZRNP-4522
Packing Dimension: Ø(45-85)mm * H(10-25)mm
MOQ: 1 set
Delivery Time: 15-30 working days
Packing Speed: 68–72 pcs/min
Packaging Details: Wooden Case
Total Machine Weight: 950KG
Brand Name: ZHIROBO
Model Number: ZRP-4585+ZR1000+ZRB-500T+ZRNP-4522
Payment Terms: T/T
Machine Type: Packing Production Line
Certification: VERIFICATION OF CONFORMITY
Price: Negotiable
Packing Film: PVC, BOPP, POF
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Four Station Automatic Packaging Line High Speed Packing Machine For Tape

Four Station High-Speed Packing Machine Production Line for Tape
Product Overview

This high-speed production line is designed for complete automated packaging of single rolls and 10-roll packs of electrical tape, featuring advanced servo control and precision engineering.

Main Technical Parameters
ModelFully Automatic High-Speed Electrical Tape Corner Folding Packaging Machine with Material Sorting System ZRP-4585+ZR1000Multi-Lane Sorting Type Tape Roll Packaging Machine ZRB-500TAir Jet Heat Shrink Tunnel Machine ZRNP-4522
Power SupplyAC200-240V 50/60HZ 3KWAC200-240V 50/60HZ 0.6KWAC380V 50/60HZ 12KW
Packing SizeØ(45-85)mm * H(10-25)mmØ(45-85)mm * H(10-20)mm450(W)*220(H)mm
Packing FilmBOPPPVCPVC, BOPP, POF
Packing Speed68-72/min10-15/min
Machine Size1750(L)*1730(W)*1350(H)
1250(L)*1250(W)*1200(H)
1260(L)*1250(W)*1520(H)
1880(L)*590(W)*1020(H)
1630(L)*320(W)*900(H)
1200(L)*400(W)*200(H)
Net Weight500kg350kg100kg
Configuration Parameters
ComponentZRP-4585+ZR1000ZRB-500TZRNP-4522
PLC ControllerPlcCHSJL
Touch ScreenMcgstpcMcgstpc
Air Circuit Breakerchintchintchint
Switching Power SupplyMingweiMingwei
AC ContactorSchneiderSchneider
RelayOMRONOMRON
Frequency InverterCoset
Push Button SwitchKonedaKonedaKoneda
Temperature ThermostatTeshowcaoren
Magnetic Powder ClutchYOSEEN
Stepper MotorInstar
Servo MotorFUJI
Servo MotorJintian
ReducerHasi Mai
Solenoid ValveSTNCSTNC
Air CylinderCNTUOPUCNTUOPU
Main MotorsanlysanlySu Lin
Photoelectric SensorYangmingYangming
Photoelectric SwitchDaochuanDaochuan
Linear GuidewaysHIWIN
Tri-Color Warning LightTʌYB
BearingNSK HRBNSK HRB
Key Equipment Advantages
  • The four-position turntable uses Fuji servo control. Accurate power transmission effectively improves processing speed.
  • The machine works with color printing packaging film and supports servo-driven labeling operation.
  • Servo-controlled film feeding guarantees highly accurate length control of packaging film.
  • Cutting unit powered by stepper motor realizes low-noise high-speed cutting; output reaches 68-72 units every minute.
  • Photoelectric positioning and color mark sensor are configured for accurate tracking.
  • Free adjustment of tape label dimensions is available.
  • Dual-channel automatic material feeding enables automatic packaging for marked tapes.
  • Impulse cold-sealing cutter is installed, whose effective cutting width is 500mm.
  • Width and diameter can be modified through hand wheel with patented design.
  • Operators can switch among 8, 10 and 12 packaging modes via HMI setting.
  • Full automated workflow supports continuous high-speed unmanned production.

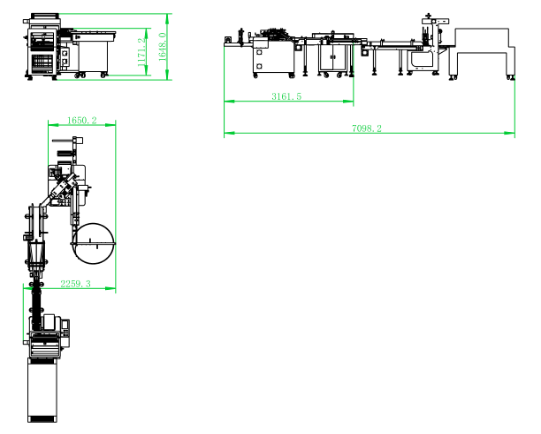

Equipment Layout

Detailed view of packaging machine components

High-speed electrical tape production line overview


Additional production line equipment view
