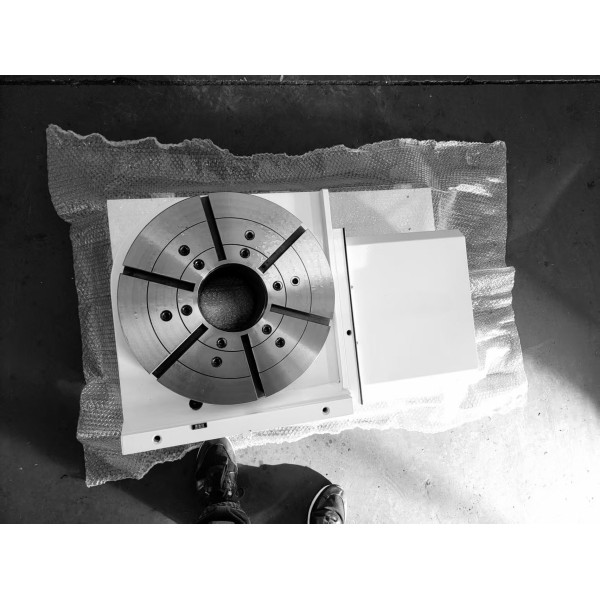

Servo Motor Power Greater Than 1 Kilowatt Fourth Axis Rotary Worm
Gear Table Servo Motor Drive CNC Rotary Indexing Table
Product Description
The Worm Gear Rotary Table is an advanced precision positioning
device designed to provide exceptional accuracy and reliability in
various industrial applications. Specifically engineered as a Worm
Gear Driven Rotary Table, this product incorporates a robust worm
gear mechanism that ensures smooth and precise rotational movement.
At the heart of this rotary table is a high-performance servo motor
drive system, offering a servo motor torque range between 12 to 50
N*m. This wide torque range allows the rotary table to handle
various load requirements while maintaining consistent performance.
The servo motor drive delivers precise control over speed and
position, enabling seamless integration into automated machining
and assembly processes.
The rotary table is available with a center bore diameter ranging
from Ø30H7 to Ø280H7, offering flexibility to accommodate various
workpiece sizes and mounting requirements. The H7 tolerance on the
bore ensures a high level of concentricity and alignment, which is
crucial for maintaining precision throughout the rotational
movement.
Key Features
- Rotary Table with Worm Gear Drive for precise rotational
positioning
- Center Bore Diameter ranging from Ø30H7 to Ø280H7
- High Indexing Accuracy between 15″ and 25″
- Minimum Indexing Unit of 0.001° for fine adjustments
- Total Thickness varying from 190mm to 1150mm
- Ideal for Precision Machining and Milling applications
- 4th Axis Worm Gear Rotary Table enhances multi-axis machining
Technical Parameters
| Parameter | Specification |
|---|
| Total Reduction Ratio | 1:180 ~ 1:2160 |
| Material | High-grade Steel |
| Servo Motor Power | ≥1.0kW ~ ≥11.3kW |
| Total Thickness | 190mm ~ 1150mm |
| Max Driving Torque | 300 ~ 30000 N*m |
| Center Bore Diameter | Ø30H7 ~ Ø280H7 |
| Net Weight | 110kg ~ 22500kg |
| Vertical Load Capacity | 150kg ~ 5000kg |
| Clamp Torque (Hydraulic 15×10⁵ Pa) | 300 ~ 2000 N*m |
| Application | Precision Machining And Milling |
Applications
The JuZhuo 4th SKT Series Precision Worm Gear Rotary Table is
designed for modern machining and automation industries. Certified
with ISO9001 and CE, this rotary table features a robust
double-lead worm gear set transmission structure for exceptional
precision and durability.
This CNC Fourth Axis Worm Gear Table is ideal for integration into
CNC machines, enabling accurate angular positioning for complex
machining tasks. With maximum driving torque ranging from 300 to
30,000 N*m, it accommodates various workpiece sizes and machining
forces.
Customization Options
The JuZhuo 4th SKT Series offers adjustable T-slot widths ranging
from 6-12mm to 12-28mm, accommodating diverse tooling requirements.
The worm gear ratio varies between 1:90 and 1:220, providing
precise rotational control with maximum rotation speed between 1.0
and 11.1 R/min.
Support and Services
For technical support, refer to the user manual included with your
product. Regular lubrication of the worm gear and inspection for
wear or damage is recommended. Replacement parts, calibration, and
repair services are available from our experienced technicians.
Packing and Shipping
Each unit is securely wrapped in protective materials and placed
inside a sturdy, custom-fitted box with cushioning foam and
anti-corrosion paper. We use reliable carriers with tracking
options, and international shipping is available with appropriate
customs documentation.
Frequently Asked Questions
Q1: What is the brand and model number of the 4th Worm Gear Rotary
Table?
A1: The brand name is JuZhuo, and the model number is 4th SKT
Series.
Q2: Where is the 4th Worm Gear Rotary Table manufactured?
A2: It is manufactured in Dongguan, China.
Q3: What certifications does the 4th Worm Gear Rotary Table have?
A3: The product is certified with ISO9001 and CE.
Q4: What is the minimum order quantity and how is the product
packaged?
A4: The minimum order quantity is 1 set, and it is packaged in a
wooden box.
Q5: What are the payment terms and delivery time for this product?
A5: Payment terms are T/T, and the delivery time is according to
customer needs.
Servo Drive 0.001 Degree Worm Gear Rotary Table Hardened Steel Precision 5.5 33 R min
