Vertical Load Capacity 150kg to 5000kg and Servo Motor Power 1kW to
11kW 4th Axis Worm Gear Rotary Table
Product Overview
The Fourth Worm Gear Rotary Table is a highly advanced and
versatile solution designed for precision machining and automation
applications. This Precision Worm Gear Rotary Table combines robust
construction with exceptional accuracy, making it ideal for
industries requiring meticulous rotational positioning and heavy
load handling.
Key Features
- 4th Axis Worm Gear Rotary Table with precise minimum indexing unit
of 0.001°
- Supports maximum workpiece moment of inertia ranging from 259 to
159000 Kg*cm*s
- Net weight varies between 110kg and 22500kg, ensuring robust
construction
- Horizontal load capacity spans from 250kg up to 35000kg for
versatile applications
- Vertical load capacity ranges between 150kg and 5000kg for reliable
support
- Ideal for integration as a Fourth Axis Worm Gear Table in advanced
machining setups
Technical Specifications
| Drive Mechanism | Worm Gear |
| Indexing Accuracy | 15″ ~ 25″ (Individual Heavy Model: 20″/25′) |
| Max Rotation Speed | 1.0 ~ 11.1 R/min |
| Application | Precision Machining And Milling |
| Minimum Indexing Unit | 0.001° |
| Center Bore Diameter | Ø30H7 ~ Ø280H7 |
| Total Reduction Ratio | 1:180 ~ 1:2160 |
| Max Workpiece Moment of Inertia | 259 ~ 159000 Kg*cm*s |
| Max Driving Torque | 300 ~ 30000 N*m |
| Type | Worm Gear Rotary Table |
Applications

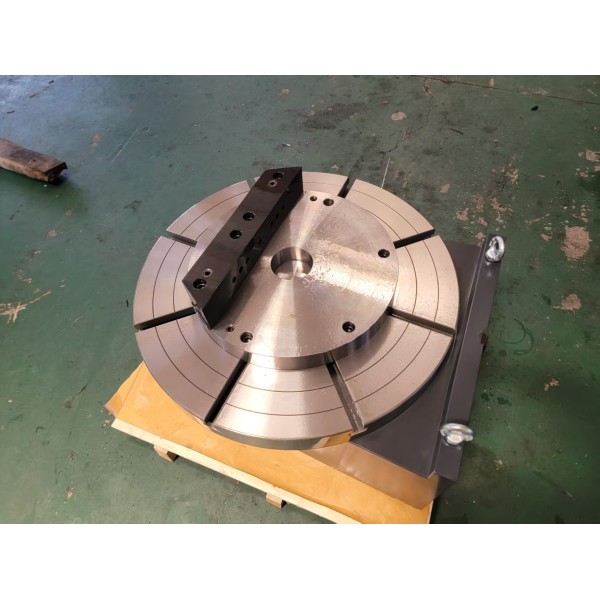

The JuZhuo 4th SKT Series Worm Gear Driven Rotary Table is ideal
for CNC machining centers where accurate indexing and rotation are
critical. Its exceptional precision and smooth operation make it
suitable for complex milling, drilling, and cutting processes
across industries including aerospace, automotive, electronics, and
mold manufacturing.
Customization Options
Available in worktable diameters from 250mm up to 3000mm with
T-slot width ranging from 6-12mm to 12-28mm. The Total Reduction
Ratio ranges between 1:180 and 1:2160, providing precise control
and flexibility for various industrial applications.
Support & Services
Our dedicated support team provides installation guidance,
operational assistance, and repair services. Regular lubrication
and inspection are recommended to maintain precision and extend
lifespan. Comprehensive service options include calibration,
overhaul, and customization.
Packaging & Shipping
Each rotary table is carefully packed with protective materials and
secured in sturdy wooden crates. Shipping available worldwide via
air freight, sea freight, and express courier services with
tracking information provided.
Frequently Asked Questions
What is the brand and model number of this Worm Gear Rotary Table?
The Worm Gear Rotary Table is from the brand JuZhuo and the model
number is 4th SKT Series.
Where is the 4th Worm Gear Rotary Table manufactured?
It is manufactured in Dongguan, China.
What certifications does this product have?
The 4th Worm Gear Rotary Table is certified with ISO9001 and CE.
What is the minimum order quantity and price for this product?
The minimum order quantity is 1 set, and the price is negotiable.
How is the product packaged and what is the typical delivery time?
The product is packaged in a wooden box, and the delivery time is
according to customer needs.
What are the payment terms and supply ability for the 4th Worm Gear
Rotary Table?
The payment terms are T/T (Telegraphic Transfer), and the supply
ability is 1000 sets per month.
