Smart Ventilation Controller For Fresh Air HRV ERV Systems

Smart Ventilation Controller For Fresh Air HRV ERV Systems

Smart Ventilation Controller For Fresh Air HRV ERV Systems
Smart Ventilation Controller For Fresh Air HRV ERV Systems
Categories Smart HVAC Controller
Model Number: G7 MIPI
MOQ: 1
Delivery Time: 2-3 weeks
Payment Terms: T/T
Built in sensors: VOC+PM2.5+CO2+Temperature+Humidity
Communication Interface: RS485 Standard
Price: US$119
Suitable for fans: AC/EC/DC fan motors
Supply Ability: 100000pcs
Power Supply: Customized According to Project Requirements
Certification: CE, RoHS
Brand Name: OEM or neutral (no brand)
Customization: UI Interface, Logo, Housing Color
Mobile App: Smart Life App / Tuya Smart App
Place of Origin: Guangdong, China
Contact Now
Company Info.
Shenzhen Xiangfan Electronics Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Smart Ventilation Controller For Fresh Air HRV ERV Systems

Product Overview:

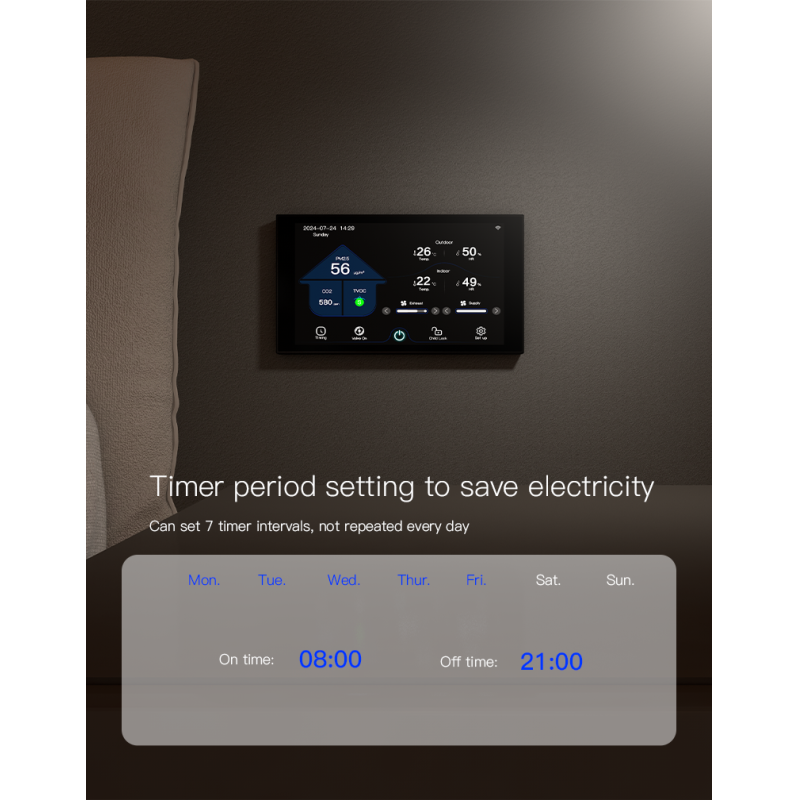

G7 mipi is an intelligent fresh air ventilation controller that integrates multiple sensors such as PM2.5, CO2, temperature, humidity, etc. The device adopts a 6.9-inch HD color screen and a high-sensitivity touch screen design. The device is equipped with WIFI, which can be remotely accessed and controlled through the Internet. At the same time, RS485 port and MODBUS protocol are reserved for communication with smart home, building intelligent control, etc.

Designed with a standard 86-type wall-mounted structure, the controller offers easy installation and a clean, modern appearance. For OEM and ODM projects, comprehensive customization services are available, including UI interface design, logo branding, housing color, and functional development to meet specific market and project requirements.


Main Features:


✔ 6.9-Inch Color Touchscreen Display for intuitive operation and real-time monitoring
✔ Automatic Fan Speed Control based on CO₂, PM2.5, and VOC levels
✔ Standard 86-Type Wall Mounting for quick and convenient installation
✔ Wi-Fi App Control via Smart Life and Tuya App for remote access anytime, anywhere
✔ RS485 Communication Interface for smart building and HVAC system integration
✔ OEM/ODM Customization including UI design, logo printing, and enclosure color options
✔ Compatible with Fresh Air Ventilation, HRV, and ERV Systems


Product Specifications:
* Dimension:
115 × 185 mm

* Display interface:
6.9 inch, 1024 x 600
* Warm-up time:
2 minutes

* Response time:
≤ 10 seconds
* Wiring terminal:
Max 2.5 mm2 wire

* Recovery time:
≤ 30 seconds
* Rated voltage:
AC110-240V, 50/60Hz

* Operating temperature:
-10℃--- +50℃
* Standby Power:
≤ 3.0W

* Operating humidity:
5％RH——90％RH
* Control power:
≤ 200W

* Storage temperature:
-10℃--- +60℃
* Suitable for fans:
AC/EC/DC

* PM2.5 display range:
0ug/m3——999ug/m3
* Temperature display range:
0℃ —— 99℃

* Humidity display range:
0% —— 99%
* Fixing hole distance:
60mm(standard)

* Recognition rate of quiet environment
> 90%


Products Images:
