| Categories | Smart HVAC Controller |
|---|---|
| WIFI Function: | Support Tuya app & Smart life app |
| Supply Ability: | 100000pcs |
| Model Number: | G7 Pro |
| MOQ: | 1 |
| Brand Name: | OEM or neutral |
| Design Style: | Contemporary, Modern, Minimalist, Industrial, European, Tropical |
| Payment Terms: | T/T |
| Optional built in sensors: | VOC+PM2.5+CO2+Temperature+Humidity |
| Feature: | Flexible, Energy Saving, Easy Install |
| Application: | Villa, Hotel, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Workshop, Park, Farmhouse, Other, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies and Kids, Storage and Closet, Wine Cell |
| Shell Material: | PC and ABS |
| Delivery Time: | 2-3 weeks |
| Place of Origin: | Guangdong, China |
| Certification: | CE and RoHS |
| Price: | $103 |
| Company Info. |
| Shenzhen Xiangfan Electronics Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

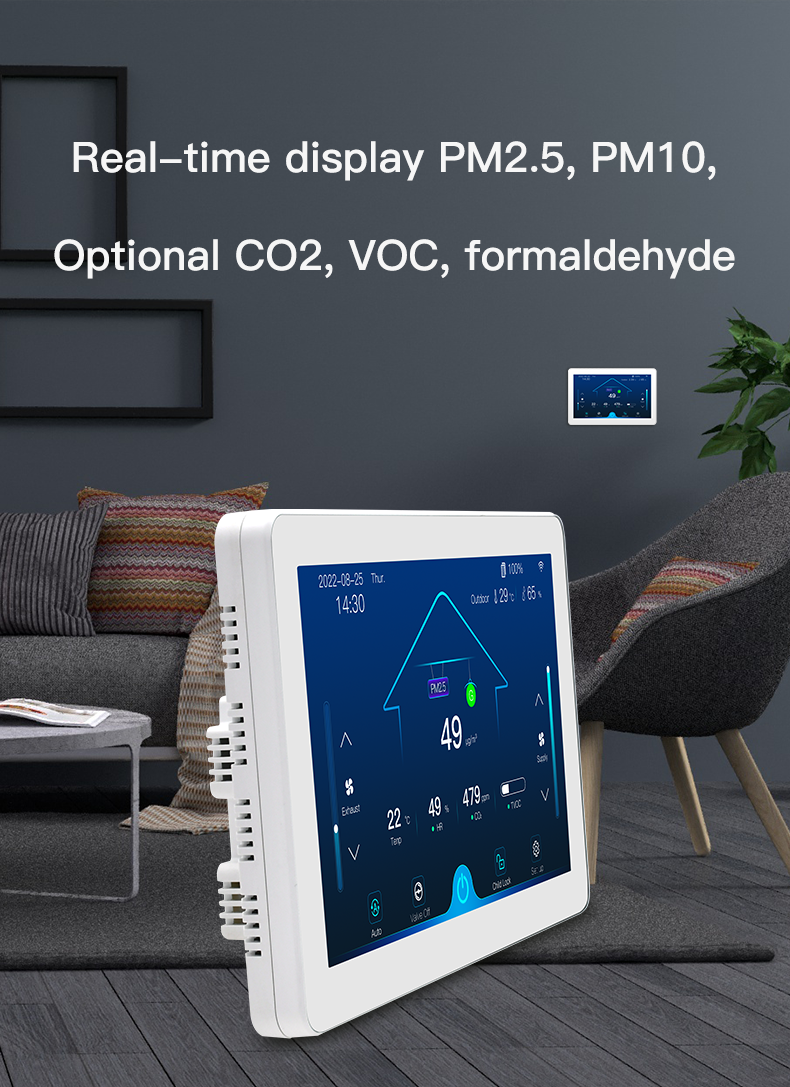

G7 Pro is an intelligent fresh air ventilation controller that integrates multiple sensors including PM2.5, CO2, temperature, and humidity. The device features a 7-inch HD color screen with high-sensitivity touch screen design.
Equipped with Wi-Fi for remote internet access and control, the controller also includes RS485 port and MODBUS protocol for communication with smart home systems and building automation. The AC version outputs relay signals to control AC fan start, stop, and speed regulation, while the DC version outputs separate control voltages for DC fan operation.
Suitable for residential, commercial, and industrial applications, this system effectively improves air quality while creating healthy, comfortable, efficient, and energy-saving environments.

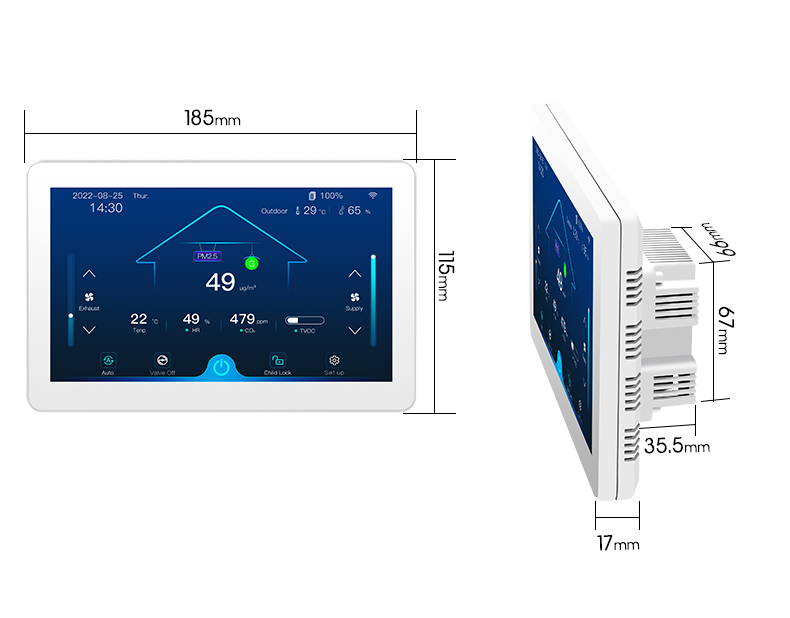

| Dimension | 115 × 185 mm |
| Display Interface | 7 inch, 1024 x 600 |
| Warm-up Time | 2 minutes |
| Response Time | ≤ 10 seconds |
| Wiring Terminal | Max 2.5 mm² wire |
| Recovery Time | ≤ 30 seconds |
| Rated Voltage | AC110-240V, 50/60Hz |
| Operating Temperature | -10℃ to +50℃ |
| Standby Power | ≤ 3.0W |
| Operating Humidity | 5% RH to 90% RH |
| Control Power | ≤ 200W |
| Storage Temperature | -10℃ to +60℃ |
| Suitable for Fans | AC/EC/DC |
| PM2.5 Display Range | 0μg/m³ to 999μg/m³ |
| Temperature Display Range | 0℃ to 99℃ |
| CO2 Display Range | 0ppm to 9999ppm |
| Humidity Display Range | 0% to 99% |
| Fixing Hole Distance | 60mm (standard) |
|
