| Categories | Smart HVAC Controller |
|---|---|
| MOQ: | 1 |
| Shell color: | White |
| Screen size: | 7 inch |
| Application: | Villa, Hotel, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Workshop, Park, Farmhouse, Other, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies and Kids, Storage and Closet, Wine Cell |
| Suitable for fans: | AC/EC/DC fan motors |
| Place of Origin: | Guangdong, China |
| Feature: | Flexible, Energy Saving, Easy Install |
| Warranty: | 1 Year |
| Delivery Time: | 2-3 weeks |
| Brand Name: | OEM or neutral (no brand) |
| Supply Ability: | 100000pcs |
| Material: | PC and ABS |
| Optional built in sensors: | VOC+PM2.5+CO2+Temperature+Humidity |
| Payment Terms: | T/T |
| Price: | $103 |
| Model Number: | G7 Pro |
| Company Info. |
| Shenzhen Xiangfan Electronics Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

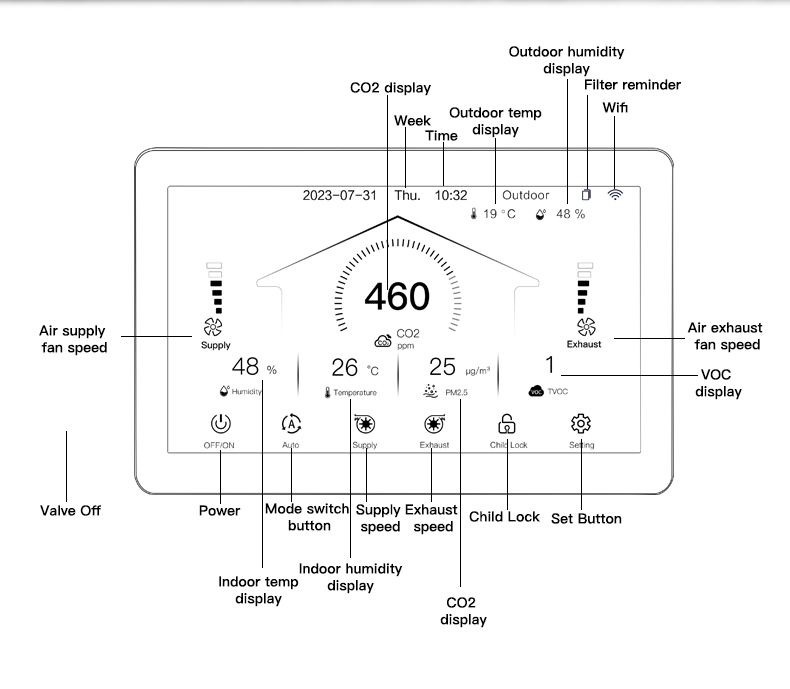

G7 Pro (black UI version) is an intelligent fresh air ventilation controller that integrates multiple sensors including PM2.5, CO2, VOC temperature, and humidity. The device features a 7-inch HD color screen with high-sensitivity touch screen design.
Equipped with Wi-Fi for remote access and control via the internet, it also includes RS485 port and MODBUS protocol for communication with smart home and building automation systems.
The AC version outputs relay signals to directly control AC fan start, stop, and speed regulation, while the DC version outputs separate control voltages for DC fan operation. Suitable for residential, commercial, and industrial applications, it effectively improves air quality and creates healthy, comfortable, efficient, and energy-saving environments.
| Dimension | 115 × 185 mm |
| Display Interface | 7 inch, 1024 x 600 |
| Warm-up Time | 2 minutes |
| Response Time | ≤ 10 seconds |
| Wiring Terminal | Max 2.5 mm² wire |
| Recovery Time | ≤ 30 seconds |
| Rated Voltage | AC110-240V, 50/60Hz |
| Operating Temperature | -10℃ to +50℃ |
| Standby Power | ≤ 3.0W |
| Operating Humidity | 5％RH to 90％RH |
| Control Power | ≤ 200W |
| Storage Temperature | -10℃ to +60℃ |
| Suitable for Fans | AC/EC/DC |
| PM2.5 Display Range | 0μg/m³ to 999μg/m³ |
| Temperature Display Range | 0℃ to 99℃ |
| CO2 Display Range | 0ppm to 9999ppm |
| Humidity Display Range | 0% to 99% |
| Fixing Hole Distance | 60mm (standard) |
|
