Ecoguard Industrial Dryer

1,PLG Series Disc Continuous Dryer

Descriptions

PLG Series Continual Plate Dryer Descriptions Plate dryer is a kind of high effective conducting and continuous drying equipment. Its unique structure and operating principle determine that it has advantages of high heat efficiency, low energy consumption, small occupying area, simple configuration, easy operate and control as well as good operating environment etc. It can be widely used in drying process in the fields of chemical industry. Agricultural chemicals, foodstuff, fodder, process of agricultural and sideline products etc, and is well received by various sectors in their practical usage. Now there are three big categories, named normal pressure, closed and vacuum styles; four types of specification 1200, 1500, 2200 and 3000; and three kinds of materials, namely A(carbon steel), B(stainless steel used for those contact materials part) and C(on the basis of B to add stainless steel materials for vapor pipes, main shaft and support, and stainless steel linings for cylinder body and top cover). With a drying area being from 4 to 180 square metres, now we have hundreds of models of series products and various kinds of auxiliary devices available to meet requirements of drying materials for customers.

Features

(1)Easy regulation and strong applicability.
1. The drying process can be optimized by adjusting the material layer thickness, spindle speed, rake arm number, rake blade type and size.
2. Each layer of drying tray can be independently supplied with hot medium or cold medium to heat or cool materials, so that the temperature control of materials is accurate and easy.
3. The residence time of materials can be adjusted accurately.
4. The material has a single flow direction, no backmixing phenomenon, uniform drying, stable quality and no need of mixing.
(2)The operation is simple and easy
1. The operation of starting and stopping the dryer is very simple.
2. After the feeding is stopped, the rake blade for conveying materials can quickly empty the materials in the dryer.
3. The equipment can be carefully cleaned and observed through special large-size inspection doors and sight glasses.
(3)low energy consumption
1. The material layer is very thin, the spindle speed is low, and the power and power consumption of the material conveying system are small.
2. Drying by conduction heat has high thermal efficiency and low energy consumption.
(4)the operating environment is good, the solvent can be recovered, and the dust emission meets the requirements
1. Atmospheric pressure: Due to the low air flow velocity in the equipment and the high and low humidity distribution in the equipment, dust is difficult to float to the top of the equipment, so the tail gas discharged from the top moisture outlet contains almost no dust.
2. Vacuum type: a disc dyer operated under vacuum, especially suitable for drying heat-sensitive materials.
(5)Easy installation and small floor space
1. The dryer s delivered from the factory and transported as a whole, and only needs to be hoisted and positioned, so the installation and positioning are very easy.
2. Because of the drying tray layout and vertical installation, even if the drying area is large, the floor area is small.

Application

PLG continuous plate dryer is appropriate for drying, calcining, pyrolysis, cooling, reaction and sublimation in the chemical, pharmaceutical, pesticide, food and agricultural industries. This drying machine is mainly used in the following fields:

Organic chemical products of PVC resin, polytetrafluoroethylene resin, fumaric acid, anthraquinone, nitroanthraquinone, p-aminophenol, melamine, cyanuric acid, sulfanilic acid, antioxidant 168, naphthol, stearic acid, aniline, p-nitroaniline, Double pentaerythritol, paraffn chloride, calcium formate, triethylene diamine, sodium benzenesulphinate, acide isophtalique, thiourea, oil soluble aniline black dyes, acid black dyes and other organic chemical raw materials and intermediates.
Inorganic chemical products, light calcium carbonate, active calcium carbonate, nano ultrafine calcium carbonate, magnesium carbonate, aluminum hydroxide, lime black, strontium carbonate, barium carbonate, potassium carbonate, lithopone, insurance powder, barium sulfate, potassium sulfate, magnesium hydroxide, microsphere catalyst, copper sulfate, nickel sulfate, amine acid sodium, sodium chloride, cryolite, ron oxide red, lithium hydroxide, nickel hydroxide, zrconium hydroxide, calcium phosphate, sulfur etc..
Medicine, pesticide, food principen, Deng salt, phenylglycine and intermediates, cefotaxime, ceftriaxone sodium, alnaigin, cimetidine, vitamin B12, vitamin C, medicinal salt, medicinal aluminum hydroxide, magnesium silicate, tea, flower extract, Ginkgo biloba, chocolate powder, starch corn germ, raw materials and pharmaceutical intermediates. Potassium carbonate, potassium fertilizer, protein feed, feed aureomycin, mycelium, bran, grains, grain, seeds, herbicides, cellulose calcium hydrophosphate, etc.

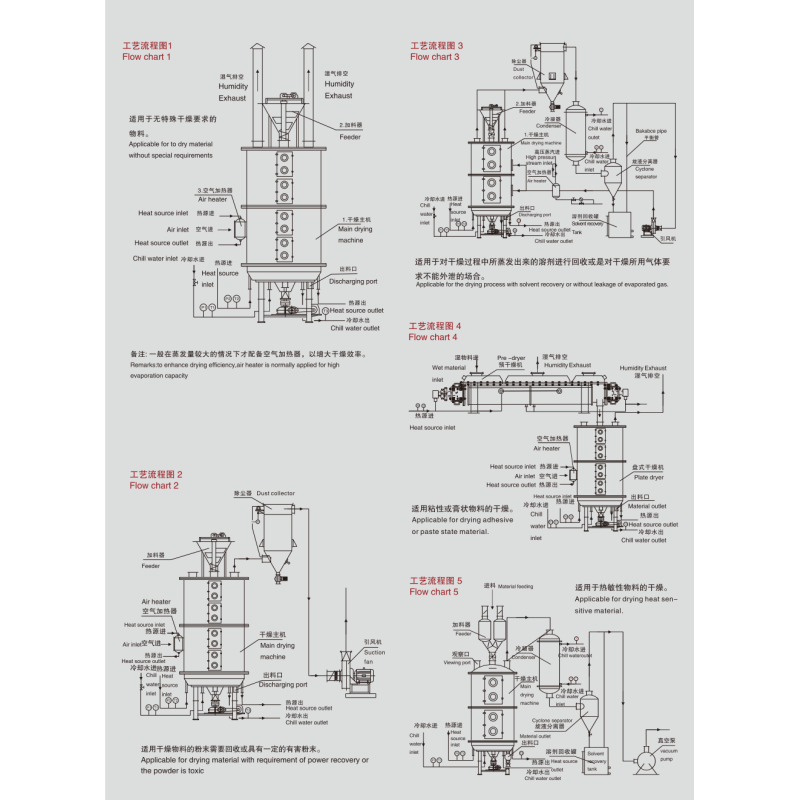

Flow Chart

Principle of work

Wet materials are fed continuously to the first drying layer on the top of the dryer. They will be turned and stirred by rakes when the rake arm rotates and drop down to the outer edge of the large drying plate along the exponential helical line. On the small drying plate they will be moved to its outer edge and drop down to the outer edge of the large drying plate underneath, and will be moved inward and drop down from its central hole to the small drying plate on the next layer. Both small and large drying plates are arranged alternately so as materials can go through the whole dryer continuously. The heating media, Which could be informs of saturated steam, hot water or heat conducting oil will be led into hollow drying plates from one end to the other end of the dryer.
The dried materials will drop from the last layer of the drying plate to the bottom layer of the shellbody, and will be moved by rakes to the dischargeport. The moisture escapes from materials and will be removed trom the moist discharge port on the top cover, or sucked out by the vacuum pump on the top cover for vacuum-type plate dryer. The dried materials discharged from the bottom layer can be packed directly.
The drying capability can be raised up if equipped with supplementary devices such as finned heater, condenser for solvent retrieval, bag dust remover, return and mix mechanism for dried materials and drawing fan etc. Solvent in those dried paste and heat sensitive materials can be easily retrieved, and thermal decomposition and reaction can be also carried out.

Technical Parameter

规格 Type	外径 Diamter (mm) 1865	高度 High (mm)	干燥面积 Area of dry (m²)	功率 Power (Kw)		规格 Type	外径 Diamter (mm) 3115	高度 High (mm)	干燥面积 Area of dry (m ² )	功率 Power (Kw)
1200/4 1200/6 1200/8		2877 3297 3717	3.3 4.9 6.6	1.1		2500/6		3981	26.3	4
				1.1		2500/8		4401	35	4
				1.5		2500/10		4821	43.8	5.5
1200/10		4137	8.2	1.5		2500/12		5241	52.5	5.5
1200/12		4557	9.9	2.2		2500/14		5661	61.3	7.5
1500/6	2166	3327	8.0			2500/16		6081	70.0	7.5
1500/8	3747	10.7			2500/18	6501		78.8	11
1500/10	4167	13.4			2500/20	6921		87.5
1500/12	4587	16.1	3.0		2500/22	7341		96.3
1500/14	5007	18.8			2500/24	7761		105	15
1500/16	5427	21.5			2500/26	8181	113.8		15
2200/6	2820	3781		18.5		3000/8	3768	5143	48	11
2200/8	4201	24.6			3000/10	5643	60
2200/10	4621	30.8	4.0		3000/12	6143	72
2200/12	5041	36.9	4.0		3000/14	6643	84
2200/14	5461	43.1	5.5		3000/16	7143	96
2200/16	5881	49.3	5.5		3000/18	7643	108	15
2200/18	6301	55.4	7.5		3000/20	8293	120	15
2200/20	6721	61.6	7.5		3000/22	8793	132	18.5
2200/22	7141	67.7	11		3000/24	9293	144
2200/24	7561	73.9			3000/26	9793	156
2200/26	7981	80.0			3000/28	10293	168

2,RLY Series Oil Combustion Hot Air Furnace

Principle of work

Fuel is burnedthrough the burner to produce high-temperature gas.The well conducts the heat of high-temperature gas to the heatedair by means of a hot-blast stove with enhanced heat exchange measures,and the temperature of the high-temperature gas is reducedto 250°C after heat dissipation and then discharged into the atmosphere.The air to be heated is forced into the hot blast stove by theselected blower,and the temperature appreciation rating is sent out from the hot blast outlet after heat absorption.When the hot blasttemperature reaches the rated upper limit temperature.The burner will utomaticllystop burning or automaticallyswitch to small flameburning.When the hot air temperature drops to the rated lower imit temperature,the burner wil be re-ignited or switched to large fireburning,and the temperature increase speed can be adjusted by the air inlet valve.

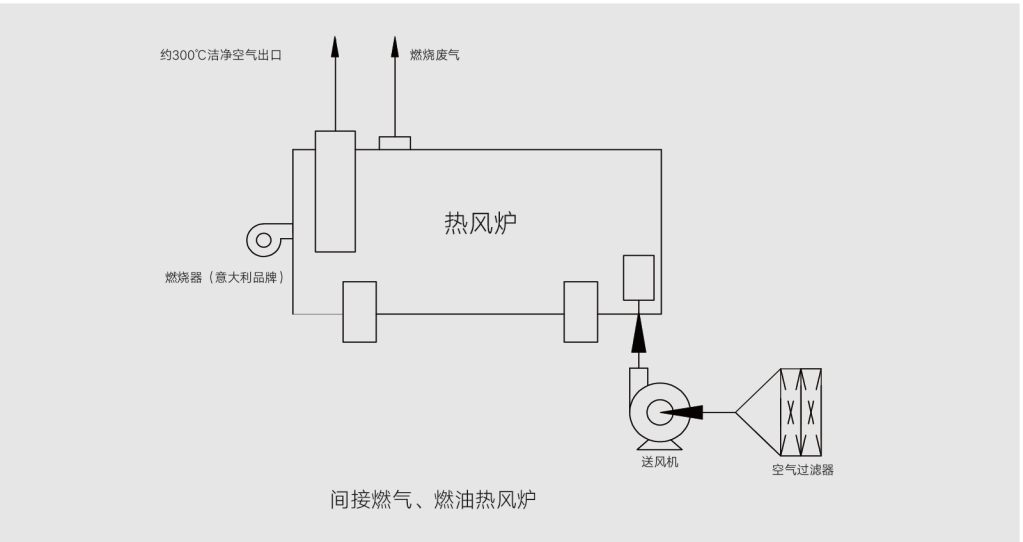

Schmatic of installation

Industries for using the furnace for example

金属表面涂装Metal surface covering or coating		喷塑喷漆后的高温固化High temperature solidification after plastic spray or paint spray
制药工业Medicine		中草药材烘干Drying the herbal medicine material of traditional Chinese medicine
粮食加工工业Grain processing		粮食干燥,淀粉干燥Drying the grain nd starch
食品加工Food		饼干烘烤,方便面,挂面烘干,传送带式烘干机Cake baking,convenient noodle, fine dried noodle drying,transmission belt,spec baking machine
木材加工工业Wood processing		木材干燥,纤维板,多合板烘干Wood drying,fibre plate and compound Plate drying
纺织印染Textile,printing and dyeing		印花烘干热定型热风拉幅Printing drying,heat shaping,hot air widening
化工工业Chemical products		化工原料干燥Drying the chemical raw materials
汽车工业Autormobile		隧道式烘房Channel spec baking room

Technical Parameter

型号Type 名称Name	JRF-15	JRF-20	JRF-30	JRF-40	JRF-60	JRF-80	JRF-100
内筒直径Diametral of interior barrel	760	760	1170	1170	1470	1670	1870
外筒直径Diametral of exterior barrel	1280	1280	1840	1840	2200	2460	2700
总高Total height	3500	3500	4260	4760	4810	5110	5310
设备重量Total weight of equipment	3.15T	3.65T	6.8T	7.5T	9.8T	11.7T	13.7T
热风出口直径Diameter of hot air outlet opening	300	300	500	500	500	600	600
热风出口高度Height of hot air outlet opening	1585	1585	1670	1670	1670	1770	1770
烟气出口直径Diameter of flue outlet opening	250	250	250	250	250	300	320
烟气出口高度Height of flue outlet opening	2050	2050	2200	2200	2200	2385	2385
牛角弯头型号Specification of angle head	XZD/G 578	XZD/G 578	XZD/G 578	XZD/G 578	XZD/G 578	XZD/G 810	XZD/G 810
每小时耗煤量Coal consumption per hour	43KG	57KG	85KG	115KG	170KG	230KG	286KG
煤的燃烧值Combustion value of coal	500kcal/h	500kcal/h	500kcal/h	500kcal/h	500kcal/h	500kcal/h	500kcal/h
热效率Heat efficiency	70-75%	70-75%	70-75%	70-75%	70-75%	75-80%	75-80%
引烟风机型号Suction fan of flue	Y5-47-3.15C -1.5KW	Y5-48-4C -2.2KW	Y5-48-4C-3KW	Y5-48-4C-3KW	Y5-47-4C-3KW	Y5-47-4C-4KW	Y5-47-5C -7.5KW
