| Categories | PET Tape |
|---|---|
| Brand Name: | Sanfeng Win |
| Model Number: | DTTR50 |
| Certification: | ISO 14001:2015 |
| Place of Origin: | Jiangsu,China |
| MOQ: | 1,000 rolls |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 rolls a week |
| Delivery Time: | 7-10 days |
| Packaging Details: | Heat-seal packaging first,then put them into the carton |
| Name: | Double Sided PET Tape |
| Use: | Bonding,Adhesion |
| Color: | Yellow |
| Adhesive: | Acrylic Ahdesive |
| Tape Thickness: | 50μm |
| Tape Size: | 40mm*50m (Customizable) |
| Company Info. |
| Sanfeng Win New Material(Jiangsu)Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

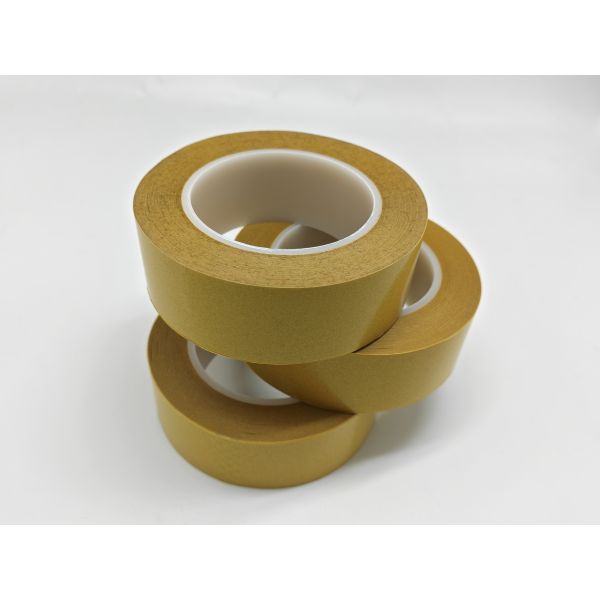

DTTR50 Series is a 50μm yellow PET double-sided tape with acrylic adhesive. It features strong adhesion, excellent durability, and wide temperature resistance (-5℃~80℃). Ideal for general bonding, electronics, and plastic lamination.
Structure
| NO | Layer&Material | Remarks | |
| 1 | Structure | Acrylic Adhesive | Acrylic Resin |
| 2 | PET | Polyester Film | |
| 3 | Acrylic Adhesive | Acrylic Resin | |
| 4 | Release Film | Double-side Release Film | |
| Item | Specification | Standard |
|---|---|---|
| Total Thickness | 50±10μm | GB/T7125-2014 |
| Release Material Thickness | 150±5μm | GB/T7125-2014 |
| Adhesion Strength | ≥1000g/25mm (180°) | GB/T2792-2014 |
| Holding Power | ≥12hr/kg/20mm² | GB/T4851-2014 |
| Initial Tack | ≤150 | GB/T4852-2002 |
| Temperature Range | -5℃~80℃ | Oven Test |
| Test Conditions | 23±1℃, 50±5%RH, Steel Plate, 300mm/min | - |
Sanfeng Win New Materials (Jiangsu) Co., Ltd. (Sanfeng Win), founded in 2010, is a private enterprise integrating R&D, production, and sales of adhesive products. With industry-leading coating technology and a professional R&D team, we specialize in high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, and backsheets. Our products are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, and photovoltaic industries. Equipped with precision coating equipment, a high-purification clean workshop, and a multi-functional composite precision coating production line, we provide customers with R&D, design solutions, and market application feedback, enabling independent mass production services to ensure product quality.
What is the substrate material?
It uses PET (polyester film) as the base material with acrylic adhesive on both sides.
What is the total thickness?
The total thickness is 100±5μm, providing stable and sturdy bonding.
Does it have good adhesion?
Yes, the 180° peel strength is at least 1000g/25mm, ensuring strong bonding.
What temperature can it withstand?
It works stably within the range of -5℃ to 80℃.
Is it suitable for plastic bonding?
Yes, it offers excellent adhesion to various plastics, metals, and electronic components.
Can it be used for temporary fixing?
Yes, it works well for temporary fixing during processing and assembly.
|
