| Categories | PET Tape |
|---|---|
| Brand Name: | Sanfeng Win |
| Model Number: | SP-PX130 |
| Certification: | ISO 14001:2015 |
| Place of Origin: | Jiangsu,China |
| MOQ: | 100 rolls |
| Price: | Negotiable |
| Payment Terms: | T/T,L/C,D/P |
| Supply Ability: | 100000 Roll per Week |
| Delivery Time: | 7-10 days |
| Packaging Details: | Put the tapes in a plastic bag,then put them into the carton |
| Name: | Kapton Alternative PET Tape |
| Use: | Masking,Protection |
| Color: | Amber |
| Feature: | Heat Resistant |
| Tape Thickness: | 130μm±5μm |
| Tape Size: | As To Your Requirements |
| Company Info. |
| Sanfeng Win New Material(Jiangsu)Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

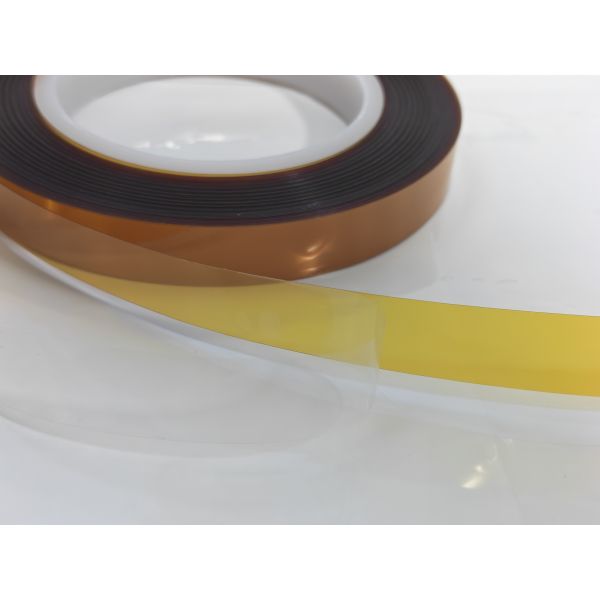

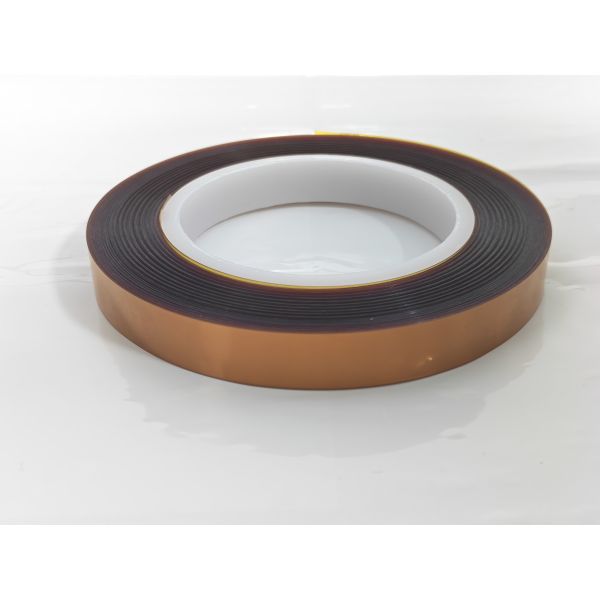

SP-PX130 is a 130µm high-temperature double-sided gold finger tape with PET backing and silicone adhesive. It offers strong adhesion, heat resistance, and reusability, ideal for bonding and protection in electronics and battery applications.
| Item | Specification | Standard |
|---|---|---|
| Total Thickness | 130±5µm | GB/T7125-2014 |
| Dry Coating Thickness | 95±5µm | GB/T7125-2014 |
| Adhesion Strength (A) | 800-1000g/25mm (180°) | GB-T2792-2014 |
| Adhesion Strength (B) | 800-1000g/25mm (180°) | GB-T2792-2014 |
| Temperature Resistance | 180°C for 30 minutes | Oven test |
| Backing Material | PET (Polyester film) with fluoroplastic layer | Visual & Physical Test |
Sanfeng Win New Material (Jiangsu) Co., Ltd. (hereinafter referred to as Sanfeng Win) was established in 2010. It is a private enterprise integrating R&D, production and sales of adhesive products, with industry-leading coating technology and a professional R&D team. The company specializes in the production of high-temperature resistant tapes, optical protective films, new energy battery blue films, aerogel packaging hot-pressing films, photovoltaic perforated tapes, photovoltaic backsheets and other products, which are widely used in electronics, mobile phone screens, PCB, powder spraying, insulation, die-cutting, printing plastics, battery cell aluminum case wrapping, FPC, new energy, photovoltaic and other industries.
To ensure product quality requirements, the company is equipped with precision coating equipment and professional R&D and technical talents.
The company has a high-purification clean workshop and a multi-functional composite precision coating production line, providing customers with R&D, design schemes and market application feedback, and can put into independent mass production services.
130±5µm, compliant with GB/T7125-2014.
Withstands 180°C for 30 minutes in an oven test.
No, it is designed for residue-free peeling and reusability.
800-1000g/25mm; B: 800-1000g/25mm (180° peel), per GB-T2792-2014.
95±5µm, compliant with GB/T7125-2014.
It uses PET (polyester film) with a fluoroplastic layer for excellent insulation.
|
