| Categories | Identification Sensors |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | BOJKE |
| MOQ: | 1 |
| Model Number: | BS-201ZWN |
| Certification: | CE |
| Price: | $36 |
| Payment Terms: | T/T |
| Supply Ability: | 150k |
| Delivery Time: | 5~8 work days |
| Packaging Details: | kraft box with carton box; |
| Product name: | RGB Color Sensor |

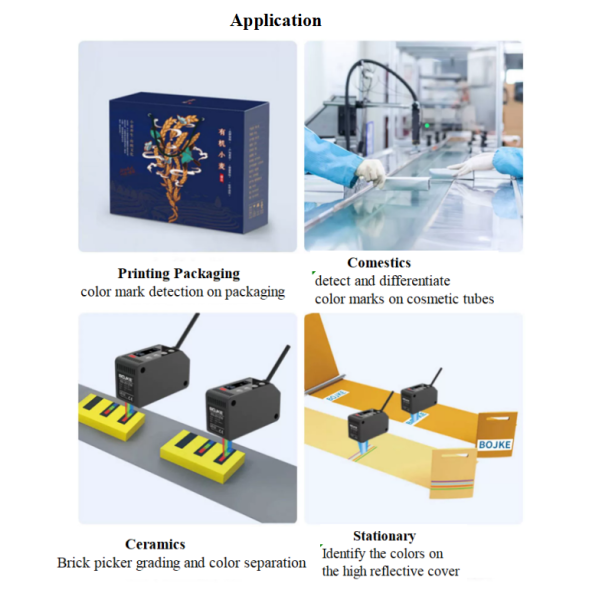

| Usage: | Color detection on production lines |
| Theory: | Light Emission Reflection Detection RGB Filterin |
| Output: | NPN/PNP |
| Response Time: | <1ms |
| Voltage - Supply: | DC12~24V ±10% |
| Company Info. |
| Guangdong Boyijingke Sensing Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Product Name | Color Mark Sensor |
| Material | PC |
| Function | Detection and Recognize |
| Package | Kraft box + inner box |
| Model No | BS-201ZWN | BS-201ZWP |
| Product Picture | ||
| Operation Voltage | DC 12~24V ±10% | |
| Consumption (no-load) Current | ≤35mA | |
| Detection Range | 17±5mm | |
| Light Source | RGB color, LED | |
| Detection Mode | color mode and color mark mode switchable | |
| Response Time | < 1ms | |
| Response Frequency | Color mode > 1000Hz； color mark mode > 1500Hz | |
| Output Type | NPN open collector | PNP open collector |
| Max Input Current | <100mA | |
| Residue Voltage | <1.5V | |
| Switch Type | Light.on/Dark.on switchable | |
| Ambient Illumination | Incandescent lamp ≤ 3000Lux; Sunlight ≤ 10000Lux | |
| Ambient Temperature | operation:-10℃~55℃；storage:-25℃~75℃,no freezing | |
| Ambient Humidity | operation: 35%~85% RH；storage:35%~95% RH no condensation | |
| Protection Circuit | polarity reversal protection/surge protection/short circuit protection | |
| Protection Level | IP67 | |
| Connection Type | 4 core 2 meters standard cable | |
| Housing Material | PC | |
| Vibration Resistance | 10～55Hz, dual amplitude 1.0mm, X/Y/Z directions each 30 minute | |
| Impact Resistance | 300m/S², X,Y,Z directions each 3 times | |
|
