Semi Automatic Soap Pattern Printing Machine With PLC Control High Productivity

The multi-head soap printer is an advanced automated system designed for efficient soap production. It seamlessly integrates cutting. Molding. And printing. Ensuring high productivity while maintaining consistent quality. The machine supports mold cavities of 125gx380gx4. And 25gx5.Catering to diverse production needs.

This machine can print various soaps with different patterns, different fonts, different shapes and grams. The production capacity can be printed 1-50 times per minute, adjustable three pieces each time, the output is 500-1000 kilograms per hour, and the soap body specification is 20-200 grams according to the mold.

Vertical stamper adopts the best design and technology, driven by servo control and cam system, reliable and high mechanical repeating accuracy. The suction cups pick up soap billet and put it onto the mould, then after forming, pick finished soap bars out to discharge conveyor. The whole cycle is fully automatic, high speed, low vibration and solid performance. The control system uses Schneider PLC and servo, HMI with English/Chinese operating screens. Electrical hand wheel is used for minor control, easy for adjustment and mould replacement. Aluminum frame with safety door switches are used to ensure operators ‘safety.

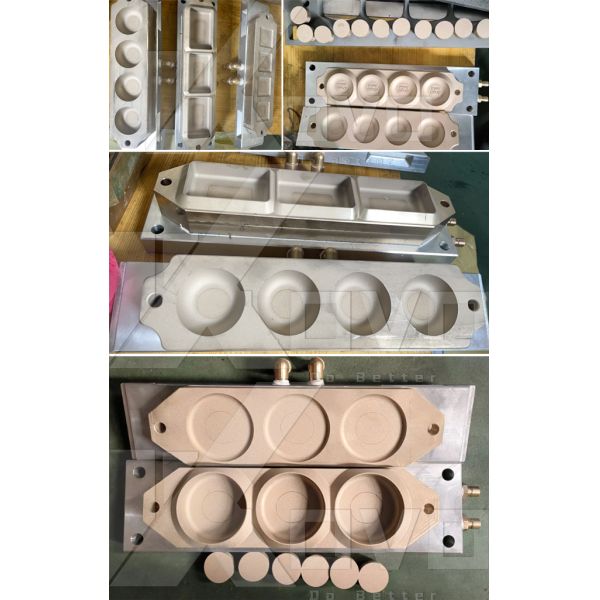

1. The mould is made of copper material with high strength, durability and high thermal conductivity
2. The bottom plate is made of steel plate, which is firm, durable and anticorrosive

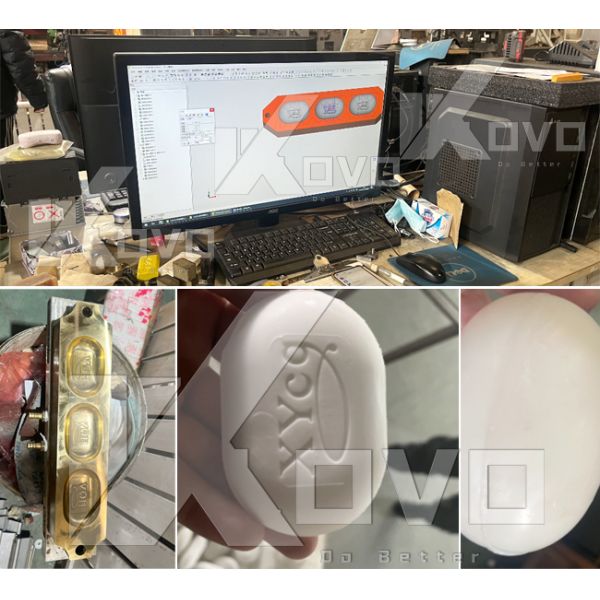

3. CNC machine tool operation engraving, higher precision
4. Professional drawing and production, experienced, better effect
5. Different shapes, characters and patterns can be customized

1. Save materials, do not need to remove scraps, improve the utilization rate of materials, and reduce the cost by abandoning the production line;
2. it can achieve high accuracy and complexity, in addition to showing the design on the shape curve;
3. traditional tools, fixtures, machine tools or any molds are no longer needed, and any shape can be generated directly from computer graphic data.
