| Categories | Battery Testing Equipment |
|---|---|
| Function 4: | Cell temperature accuracy test |
| Accuracy: | 0.01 |
| Voltage: | / |
| Function 1: | OCV test |
| Application: | Battery Testing |
| Protection Class: | Ip56 |
| warranty: | 1 |
| Capacity: | 5V3A/5A/10A - 24S~240S-200A/400A/600A |
| Function 2: | Power-on power consumption test |
| Function 3: | Cell voltage accuracy test |
| Brand Name: | HAIDA |
| Type: | Testing Machine |
| MOQ: | 1 |
| Place of Origin: | Guangdong, China |
| customized support: | OEM, ODM |
| Function 5: | Total voltage comparison test |
| Function 7: | Insulation resistance accuracy comparison test |
| Function 8: | Balancing function test |
| power: | / |
| Function 9: | Power supply voltage test |
| Function 6: | SOC comparison test |
| Company Info. |
| Haida Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Models | ||||||

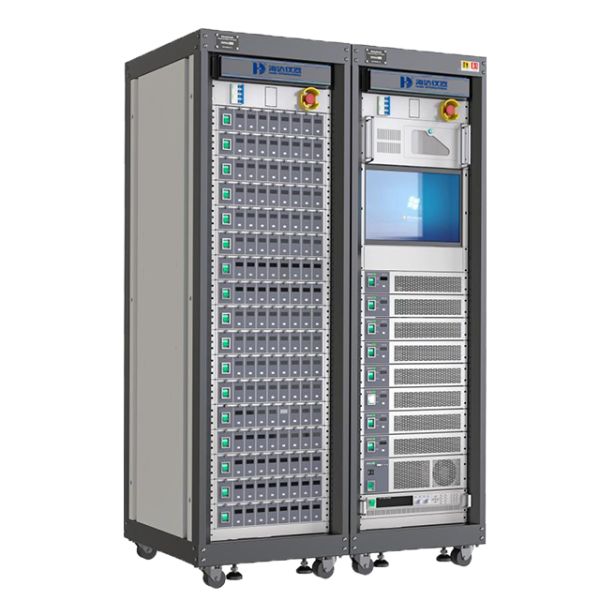

HD-H216-BMS Capacity: 5V3A/5A/10A-24S~240S-200A/400A/600A | ||||||
Pack Voltage | ||||||
Items | Parameters | Accuracy | Resolution | |||
Voltage Measurement | 5-1000V | 0.1% F.S | 0.1V | |||
Simulated battery output | ||||||
Items | Parameters | Accuracy | Resolution | |||
Voltage range | 0.1-5V | 0.01%R.D ± 0.02% F.S | 0.1mV | |||
uA current | 1-5000uA | 0.01%R.D ± 0.1% F.S | 0.1uA | |||
mA current | 1-3000mA | 0.01%R.D ± 0.1% F.S | 0.1mA | |||
Simulated battery sampling | ||||||
Items | Parameters | Accuracy | Resolution | |||
Voltage range | 0.1-5V | 0.01%R.D ± 0.02% F.S | 0.1mV | |||
uA current | 1-5000uA | 0.01%R.D ± 0.1% F.S | 0.1uA | |||
mA current | 1-3000mA | 0.01%R.D ± 0.1% F.S | 0.1mA | |||
Simulated battery's ability of absorbs current | ||||||
Items | Parameters | Accuracy | Resolution | |||
Current range | 1-3000mA | 0.01%R.D ± 0.1% F.S | 0.1mA | |||
Temperature simulation | ||||||
Items | Parameters | Accuracy | Resolution | |||
Temperature range | -50℃~+300℃ | 0.1%R.D ± 3% F.S | 0.1℃ | |||
High precision constant current source | ||||||
Items | Parameters | Accuracy | Resolution | |||
Deliver & absorb current range | 0~200A/400A/ 500A/600A | ±0.05% F.S | 1mA | |||
DC high-voltage power | ||||||
Items | Parameters | Accuracy | Resolution | |||
Voltage range | 0-1000V | 0.1%RD±0.1%FS | 0.1V | |||
Current range | 0-10A | 0.1%RD±0.1%FS | 1mA | |||
High Power Resistor | ||||||
Items | Parameters | Accuracy | Resolution | |||
2 sets | 5KΩ~10MΩ | 0.1%RD±3%FS | 5KΩ | |||
Other parameters | ||||||
DI/DO Module | Configure as required | |||||
AI/AO Module | Configure as required | |||||
CAN communication unit | 4 sets | |||||
Functions | ||||||
Basic function test | OCV test | |||||
Power-on power consumption test | ||||||
Power loss power consumption test | ||||||
Cell voltage accuracy test | ||||||
Cell temperature accuracy test | ||||||
Total voltage comparison test | ||||||
SOC comparison test | ||||||
Insulation resistance accuracy comparison test | ||||||
Balancing function test | ||||||
Power supply voltage test | ||||||
Alarm function test | Voltage/current/temperature/SOC alarm functions at all levels | |||||
Signal function test | Voltage sampling test | |||||
IO signal input and output test | ||||||
Communication function | CANBUS / RS485 / RS232 / I2C / SUMBUS etc. | |||||
Note: For specific models and parameters, please refer to the corresponding technical specifications | ||||||
|
