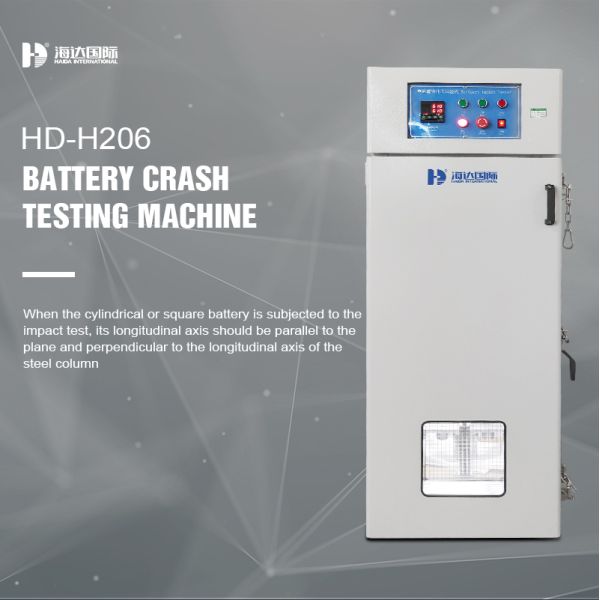

HD-H206 Battery Heavy Impact Test Chamber
Battery Impact Test Chamber tests the safety performance of battery through different weights from different heights and different stressed area to impact.

Technical parameters
| Item | Description |
Inner Box Size (W*D*H) | 490*520*1430mm |
Equipment Dimensions (W*D*H) | 700*1000*1720mm |
Weight | 9.1kg and 10kg |
Impact Height | 0-1000mm (Can be set) |
Height Display | LED Meter Display |
Displacement Accuracy | ≤±5mm |
Impact Method | Free Fall |
Control Mode | PLC Touch Screen Control |
Impact Floor Material | 30mm No. 45 Steel |
Metal Rod | 15.8±0.2mm (5/8 inch) Steel Rod |
Pressure Relief Door Size | 200*200mm |
Smoke Exhaust Pipe | Diameter φ100mm (Located at the back of the box) |
The Maximum Size of the Battery Tested (W*D*H) | 200*200*200mm |
| Equipment Weight | 85Kg |
| Power Supply | AC220V; 50Hz/60Hz |
| Internal Material | 1.2mm SUS#304 Stainless Steel Plate, Teflon Melt Adhesive Tape is Applied to 1/3 of the Place, High Temperature Resistance Corrosion Resistance, Insulation and easy to clean. |
| External Material | 1.5mm Thick Cold-rolled Steel Plate with Paint Treatment |

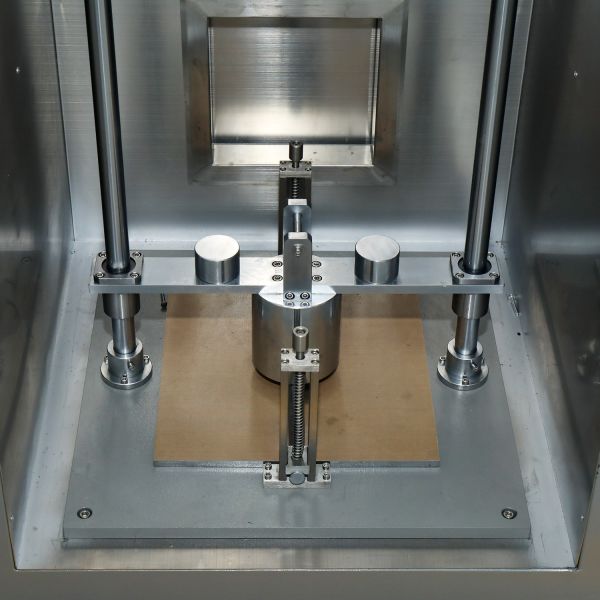

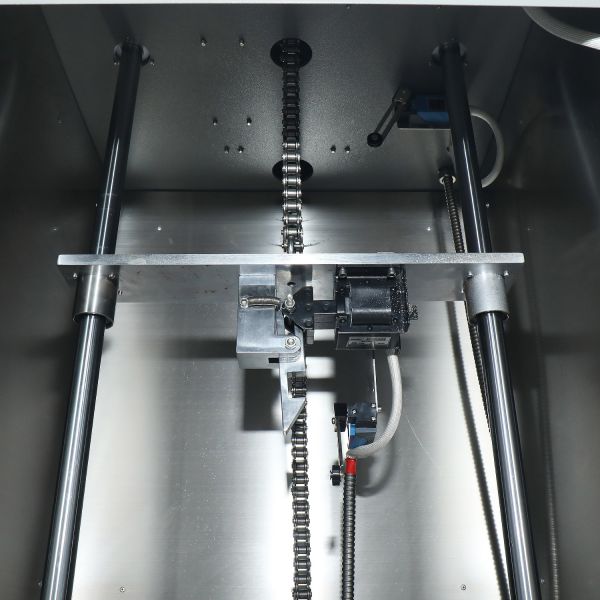

Impact Method | Lift the Falling Ball to a Certain Height and Release it, and the Falling Ball Falls Freely in the Vertical Direction, without Tilting or Shaking; |
Box Door | a Single Door Opens to the Left, and Explosion-proof Chain is Installed on the Side of Door |





Haida is a test machine manufacturer over than 20+ years. Providing OEM & ODM service for customers. With the persistent efforts of all staff, Haida owned 4 factories with total 60,000+ square meters, 15+ branch offices covers South China, North China, East China, Central China and Northwest China, as well over 20+ overseas after-sales service sites covers Southeast Asia, Europe, North America and the Middle East with 28,000+ customers.
